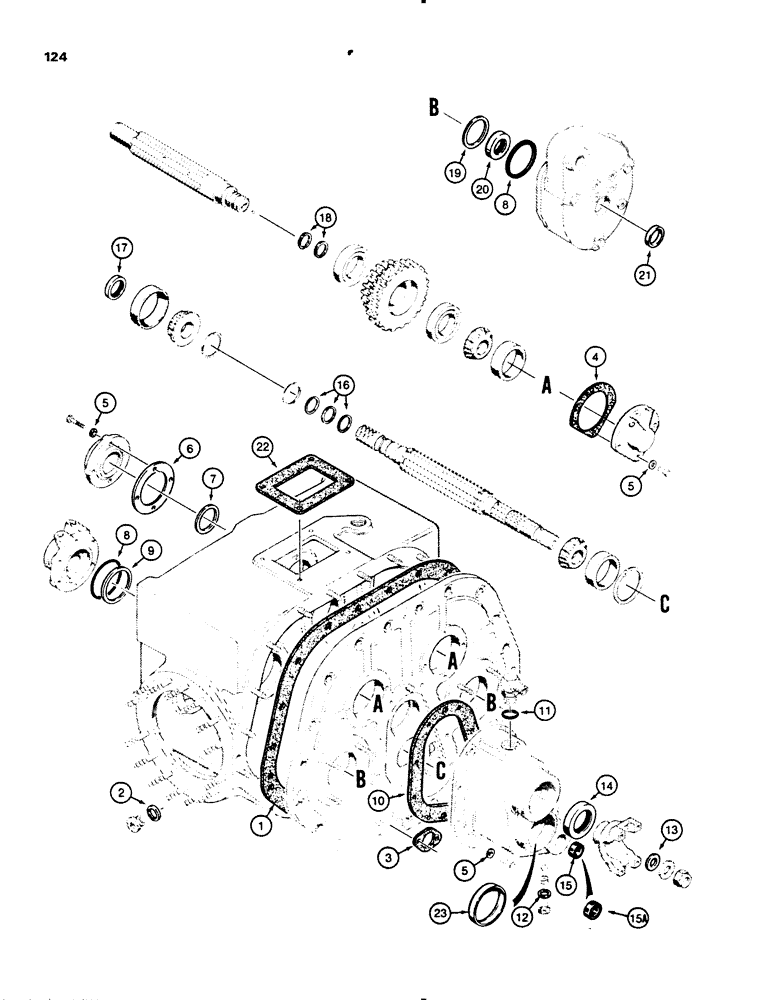

Запчасти Case 450B (124) - TRANSMISSION SEAL KIT, HOUSING (03) - TRANSMISSION

G102662

SEAL

KIT - seal, transmission housing, Includes: Ref. # 1 - 23

1шт.

1

G35334

GASKET

- housing cover

1шт.

2

A58613

SEALING WASHER

WASHER - drain plug

1шт.

3

A50109

GASKET

- oil suction tube

1шт.

4

A50056

GASKET

- shaft cover, front

2шт.

5

D32117

COPPER WASHER

WASHER, COPPER

33шт.

6

A50348

SHIM,.003" Thk

(0.076 mm) .003" Thk

4шт.

6

A50272

SHIM,.005" Thk

(0.127 mm) .005" Thk

2шт.

6

A50347

PIN

- .010" (.254 mm) thick

1шт.

7

G100338

SHIM,.028" Thk

(0.711 mm) .028" Thk

4шт.

8

A50055

SEALING RING

RING - rubber

3шт.

9

A50053

SHIM,.003" Thk

(0.076 mm) .003" Thk

4шт.

9

40590

SHIM

- .005" (.127 mm) thick

2шт.

9

40591

SHIM

- .010" (.254 mm) thick

1шт.

10

1981242C1

GASKET

- range gear housing (Replaces A50269)

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- oil return elbow, 90 degree, adjustable

1шт.

12

A50093

SEALING WASHER

WASHER - special, range selector detent

1шт.

13

34395

SEALING WASHER

WASHER - seal, yoke

1шт.

14

A50420

SEAL

- shaft

1шт.

15

A50421

OIL SEAL,19.05mm ID x 31.95mm OD x 6.73mm Thk

- selector shaft, no longer used, service with G15118 seal

1шт.

15a

G105118

OIL SEAL

- selector shaft, double lip

1шт.

16

A51841

RING

- seal, transmission drive shaft

3шт.

17

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- shaft

1шт.

18

1341408C1

SEALING RING

RING - seal, high and low clutch shaft (Replaces A50389)

4шт.

19

A50061

SHIM,0.076mm Thk

(.003"), Pinion shaft bearing 0.076mm Thk

4шт.

19

A50062

SHIM,0.127mm Thk

(.005"), Pinion shaft bearing 0.127mm Thk

2шт.

19

A50063

SHIM,0.254mm Thk

(.010"), Pinion shaft bearing 0.254mm Thk

1шт.

20

A50418

OIL SEAL

- brake plate

2шт.

21

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, brake cover

2шт.

22

A50113

GASKET

- valve base, may replace sealant used in production

1шт.

23

A50268

PLUG

- cup, range gear housing

1шт.
