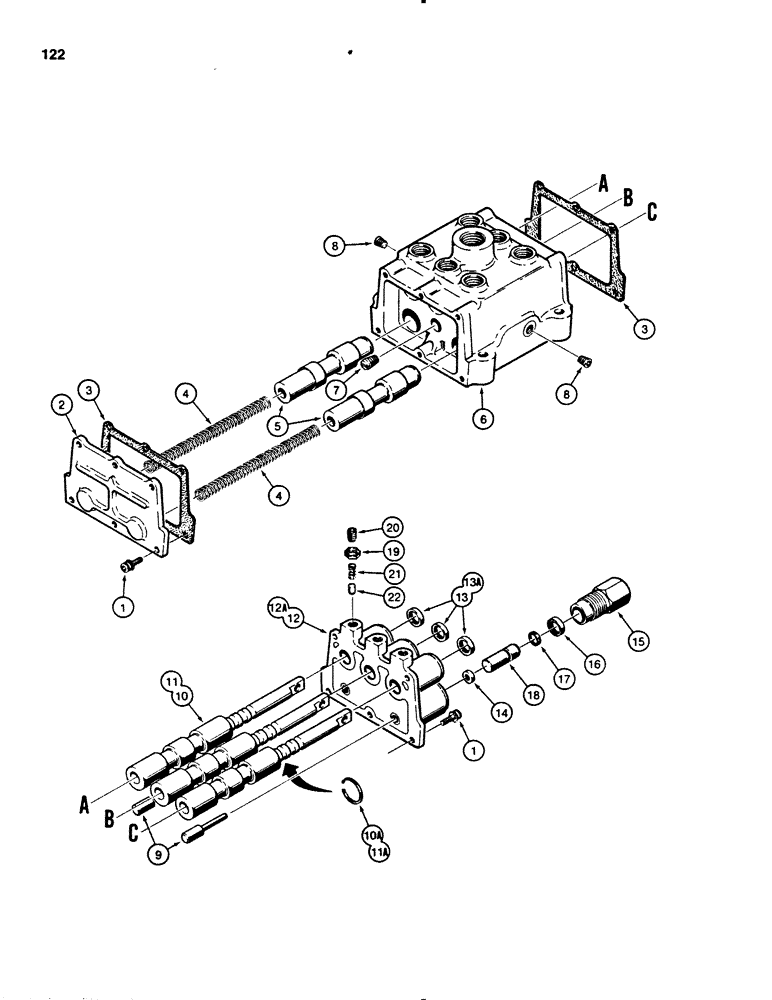

Запчасти Case 450B (122) - TRANSMISSION CONTROL VALVE (03) - TRANSMISSION

R20724

VALVE

CONTROL VALVE ASSEMBLY - transmission, Includes: Ref. #s 1 - 22

1шт.

1

193-511

HEX SOC SCREW,Sems, 1/4"-28 x 5/8"

SCREW AND WASHER - 1/4"-28 NF x 2-5/8"

12шт.

2

R21384

COVER

- rear

1шт.

3

35665

GASKET

- rear cover

2шт.

4

71125

SPRING

- spool

2шт.

5

74916

SPOOL

- brake

2шт.

6

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

7

221-1042

PLUG

- slotted, 1/4" NPT, plated

1шт.

8

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8" NPT

2шт.

9

71141

ROD

- push, brake spool

2шт.

10

G107659

ROD

SPOOL ASSEMBLY - shift, retaining ring groove is 3/64" (1.19 mm) wide, if used, Includes: Ref. #10A

3шт.

10a

71144

RING

RETAINING RING - shift spool, 3/64" (1.19 mm) wide, if used Ref. #10 spool only, if used

1шт.

11

G107659

ROD

SPOOL ASSEMBLY - shift, retaining ring groove is 4/64" (1.68 mm) wide, if used, Includes: Ref. #11A

3шт.

11a

G107637

RING, SNAP

RETAINING RING - shift spool, 4/64" (1.68 mm) wide, used with Ref. #11 spool only, if used

1шт.

12

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - front, shift spool hole opening is 13/16" (21 mm) diameter, no longer available, order G104207 cover assembly

1шт.

12a

G104207

COVER

ASSEMBLY - front, shift spool hole opening is 1-1/8" (28 mm) diameter, Includes: Ref. # 13 - 14

1шт.

13

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

U-CUP SEAL - shift spool, 13/16" (21 mm) OD, used with Ref. #12 cover only, if used

3шт.

13a

G105700

OIL SEAL

- double lip, shift spool, 1-1/8" (28 mm) OD, used with Ref. #12A cover only, if used

3шт.

14

51200266

SEAL

- rod, small, lower, used with both cover assemblies 2

15шт.

15

A50455

HOUSING

- piston, Includes: Ref. #16

2шт.

16

71121

WIPER SEAL,15.88mm ID x 20.78mm OD x 2.74mm Thk

- piston housing

1шт.

17

71131

RING

O-RING - square section, piston

2шт.

18

A50457

PISTON

- brake

2шт.

19

131-407

LOCK NUT,Pal, 3/8" - 16, 0.145" High

NUT - hex, self-locking, oval point, 3/8"-16 NC x 1/2" sealant coated

3шт.

21

71119

SPRING

- detent

3шт.

22

71120

VALVE

PIN - spool detent

3шт.
