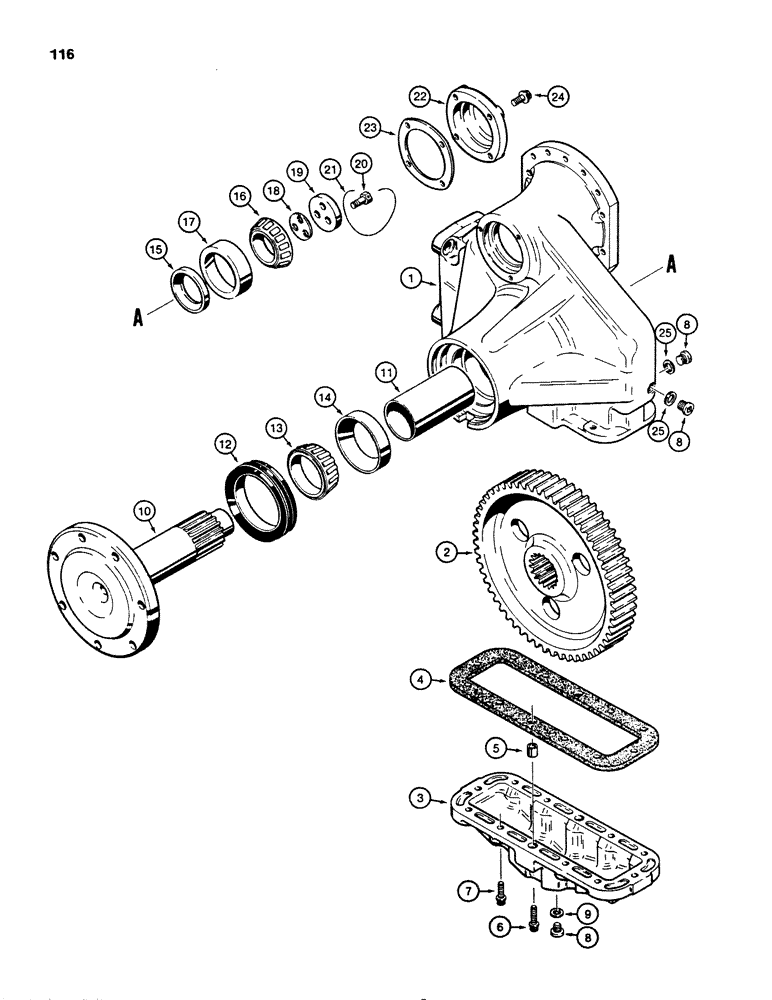

Запчасти Case 450B (116) - TRANSMISSION FINAL DRIVE, G102943 TRANSMISSION (03) - TRANSMISSION

G102682

FINAL DRIVE - RH, 64" (1626 mm) gauge dozer models

1шт.

G102683

FINAL DRIVE - LH, 64" (1626 mm) gauge dozer models, Includes: Ref. #s 1 - 25

1шт.

1

G103282

HOUSING

- G102682 final drive

1шт.

1

G103283

HOUSING - G102683 final drive

1шт.

2

G101531

GEAR

- bull

1шт.

3

A136860

COVER

- drive gear

1шт.

4

A50218

GASKET

- drive gear cover

1шт.

5

A50011

SLEEVE

DOWEL - cover locating

2шт.

6

166-88

12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8

SCREW - Ferry head, 12 point, 1/2"-13 NC x 1-3/4"

2шт.

7

166-86

12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8

SCREW - Ferry head, 12 point, 1/2"-13 NC x 1-1/4"

10шт.

8

A50014

PLUG

- housing

3шт.

9

G102141

SEALING WASHER

WASHER - copper

1шт.

10

G100321

SHAFT

- sprocket

1шт.

11

G102679

SPACER

SLEEVE - sprocket shaft

1шт.

12

A50567

SEAL

- face

1шт.

13

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

BEARING - cone, tapered roller, outer

1шт.

14

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - bearing, outer

1шт.

15

G100325

SPACER

- short, sprocket shaft

1шт.

16

G100323

BEARING

- cone, tapered roller, inner

1шт.

17

L35931

BEARING CUP

CUP - bearing, inner

1шт.

18

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

18

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

18

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

19

G102107

PLATE

- bearing retainer

1шт.

20

R19888

SCREW

BOLT - special, 9/16"-18 NF x 1-1/4", grade 8

3шт.

21

391-804

ELECTRICAL WIRE

WIRE - lock

1шт.

22

G101599

COVER

- sprocket shaft

1шт.

23

G101598

GASKET

- sprocket shaft cover

1шт.

24

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

SCREW - Ferry cap, 1/2"-13 NC x 1"

4шт.

25

A58608

GASKET

WASHER - felt, fill plug only, use G102141 copper washer

2шт.
