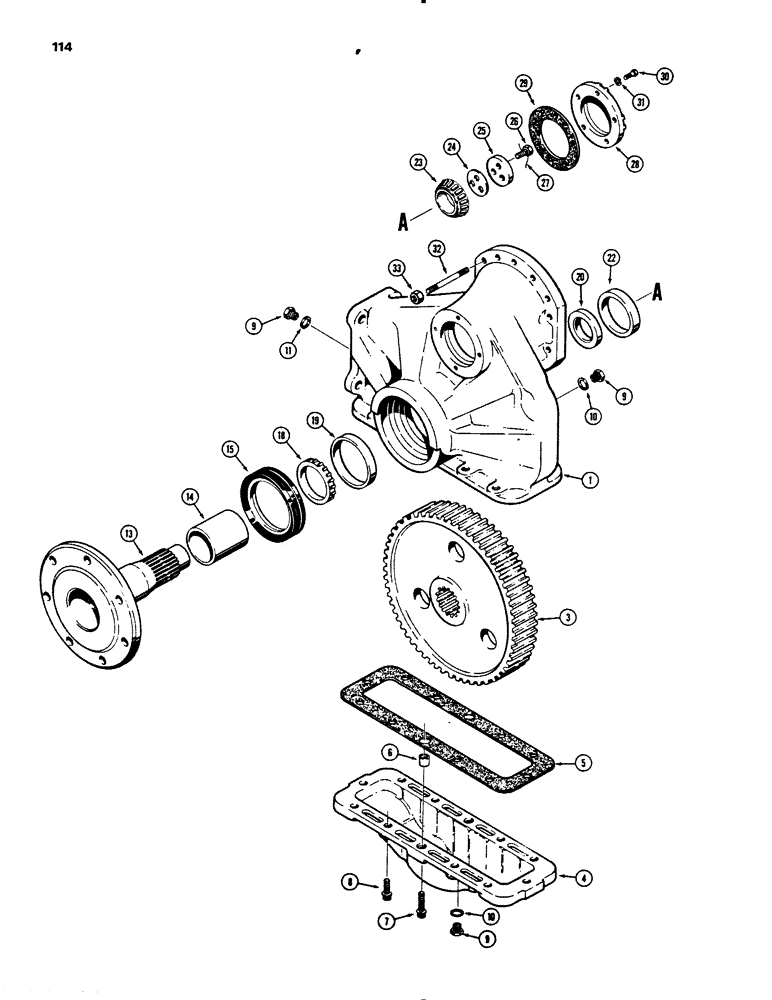

Запчасти Case 450B (114) - TRANSMISSION FINAL DRIVE, G101939 AND G101940 TRANSMISSIONS (03) - TRANSMISSION
№
Артикул
Название
Примечание
Количество
G101520
DRIVE
FINAL DRIVE - RH, loader
1шт.
G101518
DRIVE ASSY.
FINAL DRIVE - RH, dozer, 52" (1321 mm) gauge
1шт.
G101521
DRIVE
FINAL DRIVE - LH, loader
1шт.
G101519
DRIVE ASSY.
FINAL DRIVE - LH, dozer, 52" (1321 mm) gauge
1шт.
1
A50564
HOUSING
- G101520 drive
1шт.
1
A50563
HOUSING
- G101519 drive
1шт.
1
A50565
HOUSING
- G101521 drive
1шт.
1
A50562
HOUSING - G101518 drive
1шт.
3
G101531
GEAR
- 3-5/64" (78 mm) spline ID
1шт.
4
A136860
COVER
- bottom, final drive
1шт.
5
A50218
GASKET
- cover
1шт.
6
A50011
SLEEVE
- dowel, cover locating
2шт.
7
166-88
12 PT SCREW,Flg, 1/2" - 13 x 1 3/4", Gr 8
SCREW - Ferry head, 12 pt, 1/2"-13 NC x 1-3/4"
2шт.
8
166-86
12 PT SCREW,Flg, 1/2" - 13 x 1 1/4", Gr 8
SCREW - Ferry head, 12 pt, 1/2"-13 NC x 1-1/4"
10шт.
9
A50014
PLUG
- housing
3шт.
10
A58608
GASKET
- felt, use G102141
2шт.
11
G102141
SEALING WASHER
WASHER - copper
1шт.
13
G101530
SHAFT
- 3-15/64" (82 mm) spline OD
1шт.
IF LOOKING FOR A SHAFT WITH 33 TEETH AND TAPERS TO THE SPLINES AS SHOWN IN THIS ILLUSTRATION SEE PART NUMBER A51737.
1шт.
14
A50566
SPACER
SLEEVE - output shaft
1шт.
15
A50567
SEAL
- face, final drive shaft
1шт.
18
A50100
ROLLER BEARING,82.55mm ID x 25.4mm W
BEARING - cone, outer
1шт.
19
A27146
BEARING, CUP,125.41mm OD x 19.84mm W
CUP - bearing, outer
1шт.
20
A50215
RING
SPACER - output shaft
1шт.
22
A50179
BEARING CUP
CUP - bearing, inner
1шт.
23
G10414
ROLLER BEARING
BEARING - cone, tapered roller, inner
1шт.
24
A50216
SHIM
- .005" (.127 mm)
1шт.
24
A50224
SHIM,.007" Thk
(0.178 mm) .007" Thk
1шт.
25
G102108
PLATE
- retainer
1шт.
26
A31107
BOLT
- special, 1/2"-13 NC x 1-1/4"
3шт.
27
391-804
ELECTRICAL WIRE
WIRE - lock
1шт.
28
A50140
COVER
- output shaft
1шт.
29
A50139
GASKET
- cover
1шт.
30
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
5шт.
31
92-6
LOCK WASHER,3/8"
5шт.
32
G102017
STUD
- 1/2"-13 NC x 3"
30шт.
Выбрано товаров: 37
