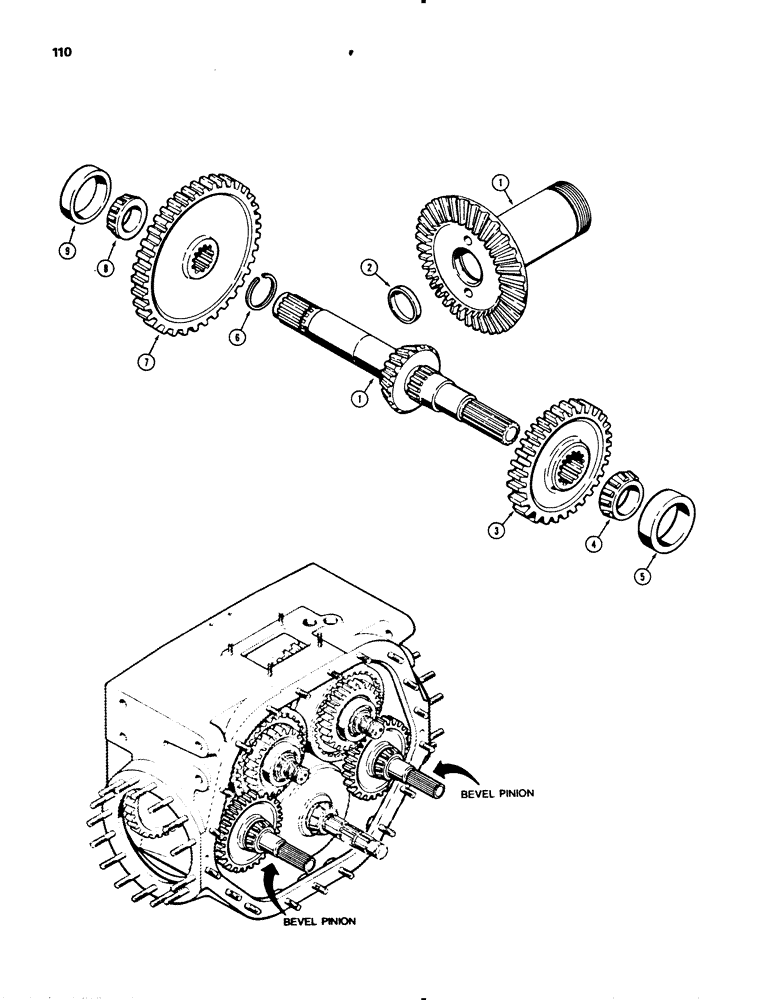

Запчасти Case 450B (110) - TRANSMISSION BEVEL PINION AND SHAFT (03) - TRANSMISSION

1

A50275

GEAR-SET

PINION AND GEAR SET - matched

2шт.

2

A50099

PLUG

- special

2шт.

3

G103777

GEAR

- drive, high clutch

2шт.

4

A31264

ROLLER BEARING,1.625" ID x 1"

BEARING - cone, tapered roller

2шт.

5

F62007

CUP

- bearing

2шт.

6

A27085

RING

SNAP RING - shaft

2шт.

7

G103778

GEAR

- driven, low clutch

2шт.

Gear Mates with Part A50574 on Fig. 104.

1шт.

8

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

BEARING - cone, tapered roller

2шт.

9

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - bearing

2шт.
