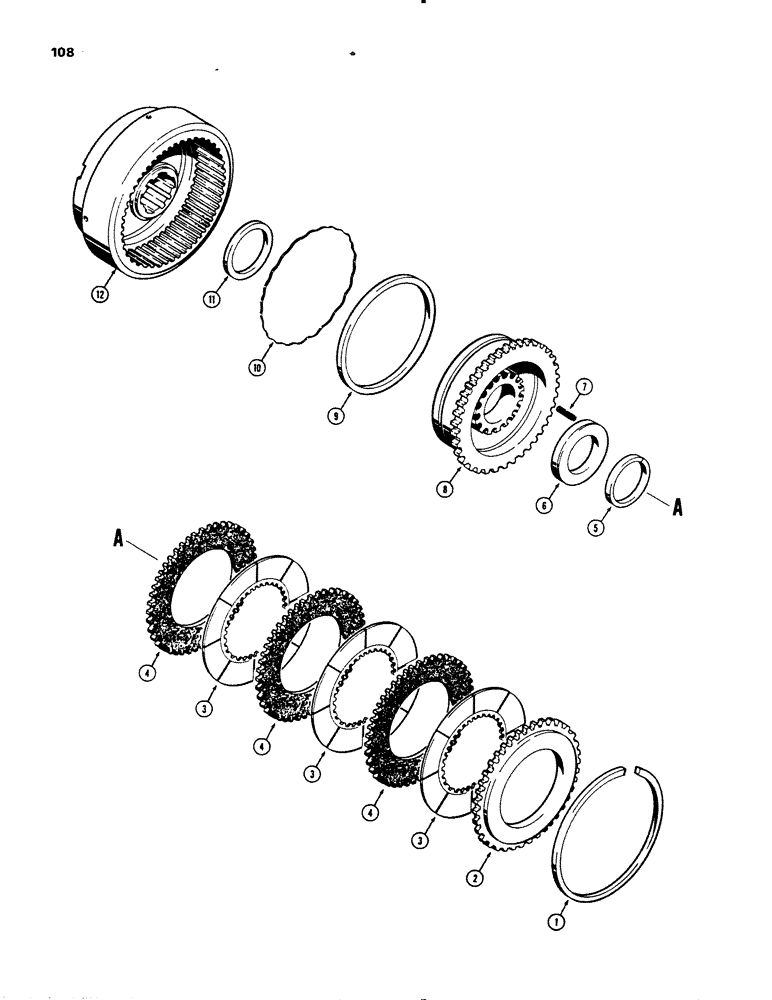

Запчасти Case 450B (108) - TRANSMISSION FORWARD AND REVERSE CLUTCHES (03) - TRANSMISSION

G102376

CLUTCH

ASSEMBLY - transmission, Includes: Ref. #s1 - 12

2шт.

1

30785

RING

SNAP RING - clutch backing plate

1шт.

2

G103391

PLATE

- clutch backing

1шт.

3

G102354

PLATE

DISC - metal, internal teeth

3шт.

4

G101711

PLATE

DISC - friction, external teeth

3шт.

5

A27233

RING

SNAP RING - spring retainer

1шт.

6

R11016

RETAINER

- clutch spring

1шт.

7

A51825

SPRING

- clutch

18шт.

8

A50571

PISTON

- clutch, aluminum

1шт.

9

A50414

SEALING RING

RING - sealing, piston

1шт.

Part of Kit P/N G102663

1шт.

10

G102095

SPRING

EXPANDER - piston ring

1шт.

Part of Kit P/N G102663

1шт.

11

A50415

SEAL

RING - sealing, drum hub

1шт.

Part of Kit P/N G102663

1шт.

12

A50290

DRUM

- clutch

1шт.

G102663

KIT

- clutch seal, includes six each of Ref. #s 9, 10 and 11

1шт.
