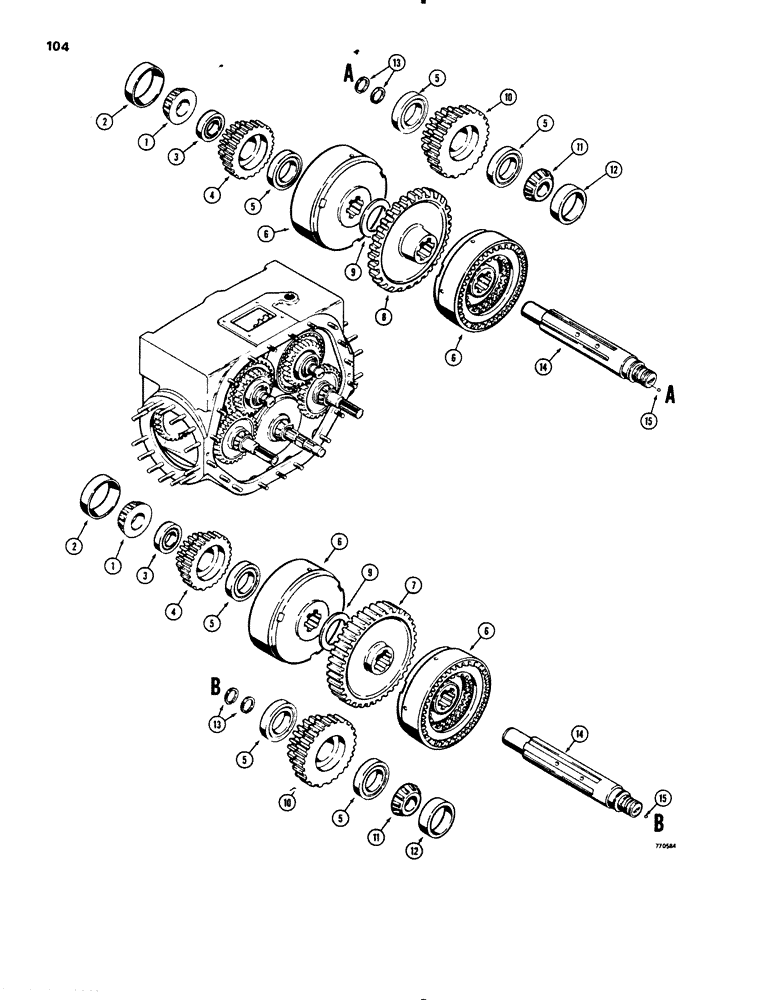

Запчасти Case 450B (104) - TRANSMISSION HIGH-LOW CLUTCHES AND SHAFTS (03) - TRANSMISSION

1

G100313

BEARING CONE,34.92mm ID x 20.64mm W

BEARING - cone, tapered roller

2шт.

2

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - bearing

2шт.

3

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball

2шт.

4

A50574

SHAFT

GEAR - low clutch, 20 and 29 teeth

2шт.

Gear's larger OD mates W/ G103778 O.D. Figure 110.

1шт.

5

G10418

BEARING, BALL

BEARING - ball

6шт.

6

REF

INSTRUCTION

CLUTCH ASSEMBLY - parts list Fig. 106

4шт.

7

A50508

GEAR

- drive, RH, 51 teeth

1шт.

8

A50511

GEAR

- drive, LH, 51 teeth

1шт.

9

A50668

SHIM,.032" Thk

Spacer, Gear .032" Thk

2шт.

10

G100314

GEAR

- high clutch, 29 and 32 teeth

2шт.

11

A31138

ROLLER BEARING,1.771" ID x 1"

BEARING - cone, tapered roller

2шт.

12

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP - bearing

2шт.

13

A50389

SEAL

RING - seal, shaft

4шт.

Part of Seal Kit P/N G102662

1шт.

14

G100310

GEAR

SHAFT - high and low clutch, Includes: Ref. #15

2шт.

15

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 13, Fig. 124 for complete kit.

1шт.
