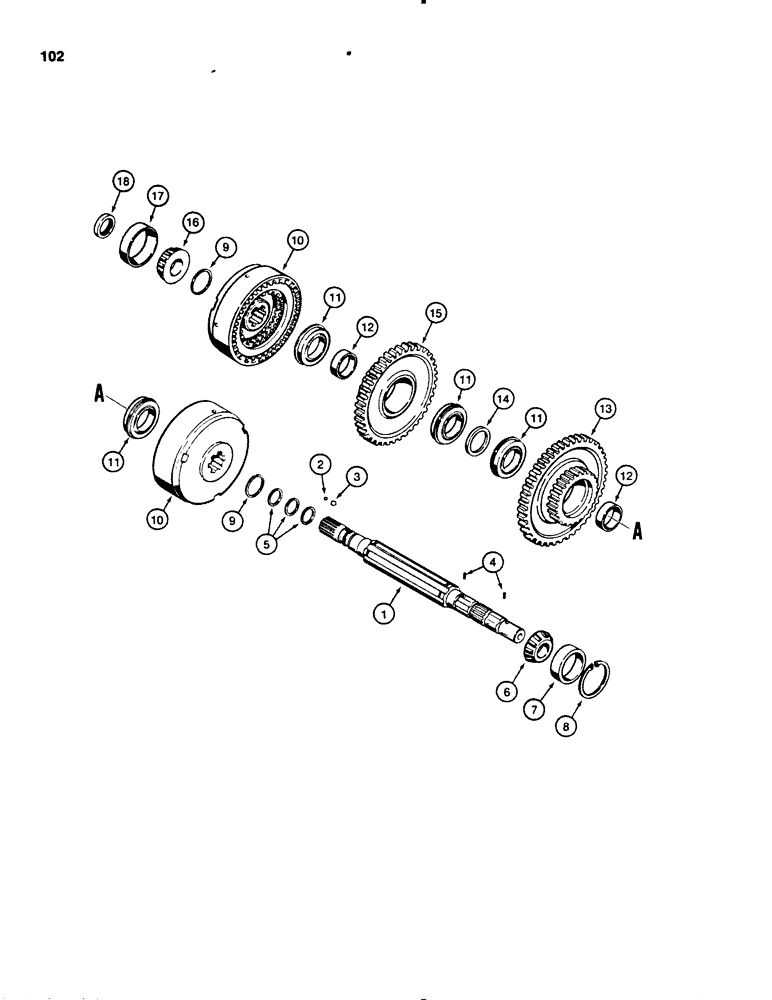

Запчасти Case 450B (102) - TRANSMISSION MAIN SHAFT AND FORWARD-REVERSE CLUTCH (03) - TRANSMISSION

1

A54108

SHAFT

- main, Includes: Ref. #2 & 3

1шт.

2

211-7

BALL,1/4" Dia

- steel 1/4" Dia

1шт.

3

211-11

BALL,3/8" Dia

- steel, 3/8" Dia

1шт.

4

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, 5/32" x 7/16", Slotted

2шт.

5

A51841

RING

- seal, shaft

3шт.

Part of Seal Kit P/N G102662

1шт.

6

A30076

ROLLER BEARING,1.625" ID x 0.963"

CONE - bearing

1шт.

7

G15202

CUP

- bearing

1шт.

8

R20786

RING

SNAP RING - shaft

1шт.

9

A50046

RING

SNAP RING - clutch

2шт.

10

REF

INSTRUCTION

CLUTCH - forward and reverse, parts list Fig. 108

2шт.

11

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

- ball

4шт.

12

A50293

SPACER

- bearings

2шт.

No longer required per ECS #8084-144

1шт.

13

A50505

GEAR WHEEL

GEAR - reverse, 29 and 56 teeth

1шт.

14

A50034

SPACER

- gear

1шт.

15

A50506

GEAR

- forward, 29 and 51 teeth

1шт.

16

A50048

ROLLER BEARING,40mm ID x 21.69mm W

CONE - bearing

1шт.

17

A27138

BEARING CUP,85 mm OD x 17.462 mm

CUP - bearing

1шт.

18

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- shaft

1шт.

Part of Seal Kit P/N G102662

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 5 and 18, see Fig. 124 for complete kit

1шт.
