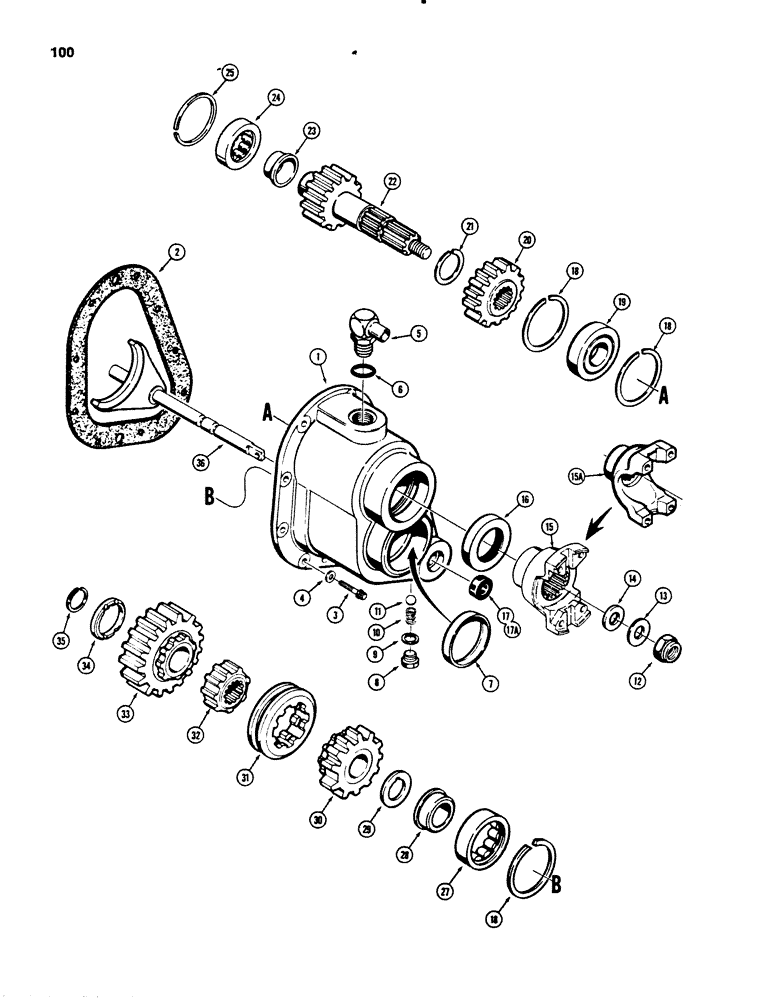

Запчасти Case 450B (100) - TRANSMISSION RANGE SHIFT (03) - TRANSMISSION

1

NSS

NOT SOLD SEPARAT

HOUSING - range gear, see figure 96 for service

1шт.

2

A50269

GASKET

- range gear housing

1шт.

Part of Seal Kit P/N G102662

1шт.

3

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

BOLT - Ferry head, 3/8"-16 NC x 1-1/4"

9шт.

4

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

9шт.

Part of Seal Kit P/N G102662

1шт.

5

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded, Adjustable

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

Part of Seal Kit P/N G102662

1шт.

7

A50268

PLUG

- cap

1шт.

8

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

SCREW - special

1шт.

9

A50093

SEALING WASHER

WASHER - special

1шт.

Part of Seal Kit P/N G102662

1шт.

10

A50092

SPRING

- detent

1шт.

11

211-13

BALL,1/2" Dia

steel 1/2" Dia

1шт.

12

131-91

LOCK NUT,3/4"-16, G8

NUT - hex, self-locking, 3/4"-16 NF, plated

1шт.

13

32601

WASHER

- special

1шт.

14

34395

SEALING WASHER

WASHER - seal

1шт.

Part of Seal Kit P/N G102662

1шт.

15

A50581

YOKE

- flange type, must be used with R42651 drive shaft assembly, Fig. 94, if used

1шт.

15a

G106153

YOKE

- slip, must be used with R47215 drive shaft assembly,Fig. 94, if used

1шт.

16

A50420

SEAL

- shaft

1шт.

Part of Seal Kit P/N G102662

1шт.

17

A50420

SEAL

- selector shaft, no longer used, service with G105118 seal

1шт.

Part of Seal Kit P/N G102662

1шт.

17a

G105118

OIL SEAL

- selector shaft, double lip

1шт.

18

R13804

RING

SNAP RING - bearing

3шт.

19

A26537

BALL BEARING,34.99mm ID x 80mm OD x 21mm W

- input shaft

1шт.

20

A51927

GEAR WHEEL

DRIVE GEAR - input shaft

1шт.

21

R15364

SNAP RING,#152, 1.527", Ext

- drive gear

1шт.

22

A50365

SHAFT

INPUT SHAFT - transmission

1шт.

23

A50077

BEARING CONE,1.1811" ID x 0.748"

RACE - roller bearing, inner

1шт.

24

A50255

BEARING, ROLLER, CYL,2.8359" OD x 0.748"

ROLLER BEARING - input shaft

1шт.

25

A27417

RING

SNAP RING - roller bearing

1шт.

27

A50258

ROLLER BEARING,3.1510" OD x 0.8268"

- shaft

1шт.

28

A50332

BEARING CONE,1.25" ID x 0.8268"

RACE - roller bearing, inner

1шт.

29

A50333

WASHER

THRUST WASHER - drive gear

1шт.

30

A51928

GEAR

DRIVE GEAR - clutch shaft

1шт.

31

A51806

COLLAR

SLEEVE - range selector

1шт.

32

A50502

COLLAR

- range selector

1шт.

33

A50517

GEAR

DRIVEN GEAR - shaft

1шт.

34

A50071

WASHER

THRUST WASHER - driven gear

1шт.

35

A26946

RING

SNAP RING - gear

1шт.

36

A50368

SHAFT AND FORK - range selector

1шт.

For service of A50368 shaft and fork, order the components A51886 shaft, G106366 fork, A7044 screw and 391-804 wire.

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 2, 4, 6, 9, 14, 16 and 17, Fig. 124 for complete kit.

1шт.
