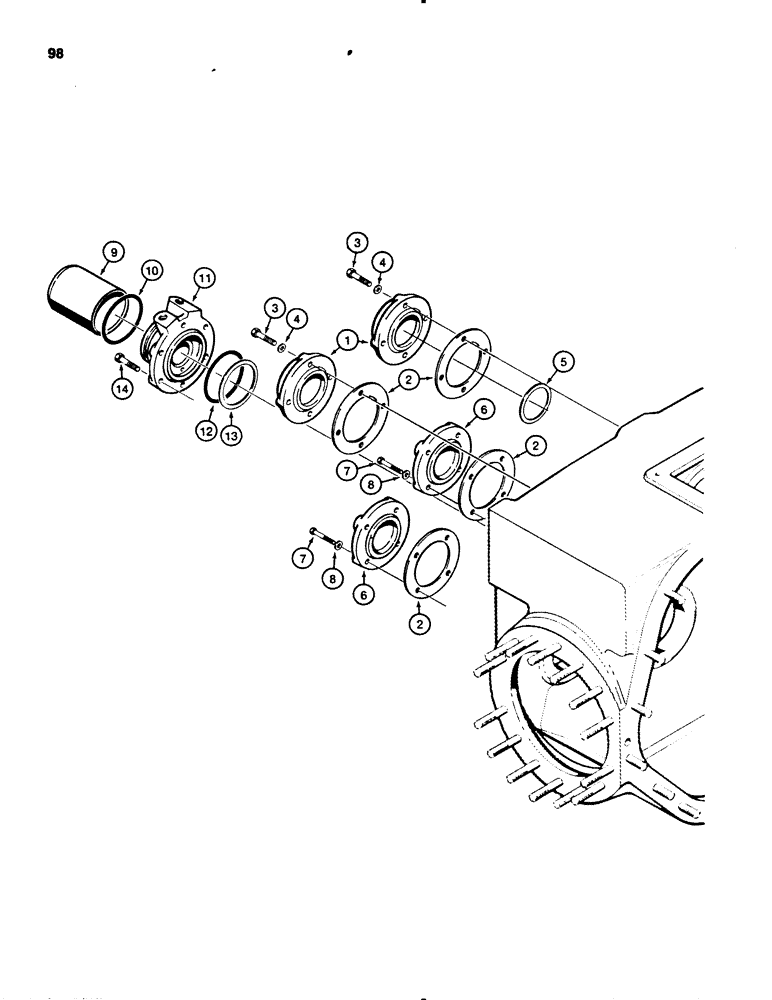

Запчасти Case 450B (098) - TRANSMISSION REAR COVERS (03) - TRANSMISSION

1

A50271

COVER

- clutch shafts

2шт.

2

A50

SUPPORT

SHIM - .003" (.076 mm) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

2

A50272

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

2

CASA50347

SHIM

- .010" (.254 mm) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

3

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

4

D32117

COPPER WASHER

WASHER, COPPER

8шт.

Part of Seal Kit P/N G102662

1шт.

5

G100338

SHIM,.028" Thk

(0.711 mm) .028" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

6

A50271

COVER

- pinion shafts

2шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

8шт.

8

D32117

COPPER WASHER

WASHER, COPPER, 3/8"

8шт.

Part of Seal Kit P/N G102662

1шт.

9

G101696

PROTECTIVE COVER

COVER - drive shaft, outer

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- winch models only

1шт.

11

G102243

COVER

- drive shaft, inner

1шт.

Cover now has 5 bolts per ECS #8084-38.

1шт.

12

A50055

SEALING RING

- rubber

1шт.

Part of Seal Kit P/N G102662

1шт.

13

A50053

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

Part of Seal Kit P/N G102662

1шт.

13

40590

SHIM

- .005" (.127 mm) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

13

40591

SHIM

- .010" (.254 mm) thick

1шт.

Part of Seal Kit P/N G102662

1шт.

14

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

14

113-213

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. all 2's, 4, 5, 8, 12 and all 13's, Fig. 124 for complete kit

1шт.
