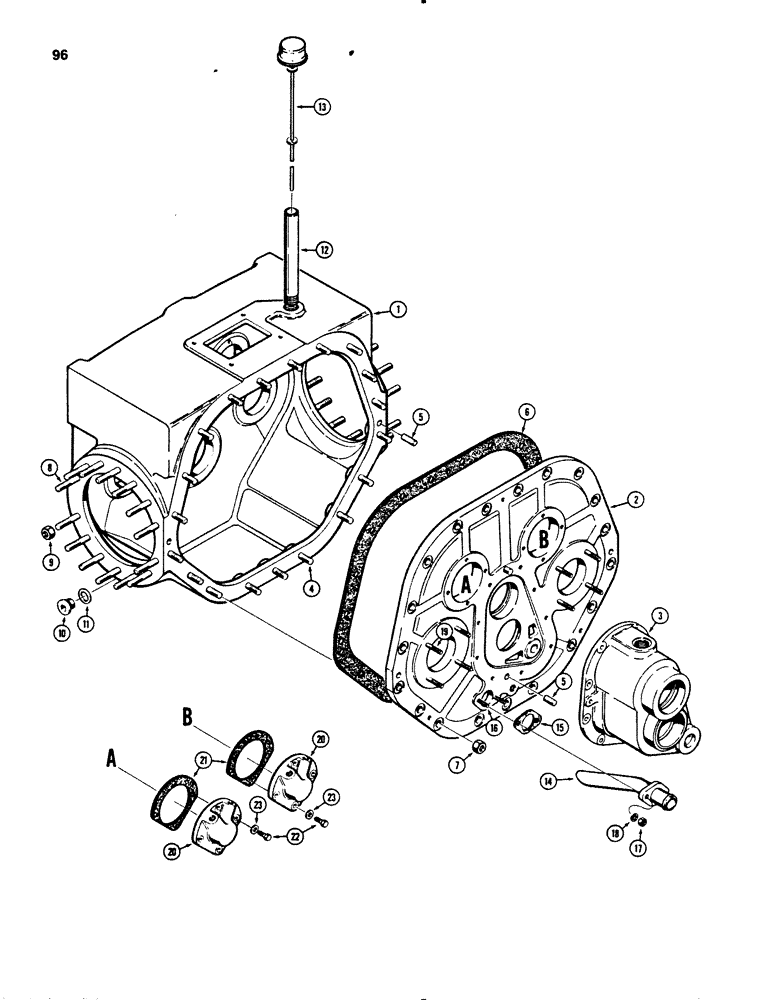

Запчасти Case 450B (096) - TRANSMISSION, HOUSING, FRONT COVERS AND DIPSTICK (03) - TRANSMISSION

G101939

TRANSMISSION - loader models,Fig. 96 - 122 for complete transmission

1шт.

G101940

TRANSMISSION - 52" (1321 mm) gauge dozer and drawbar models, Fig. 96 - 122 for complete transmission

1шт.

G102943

TRANSMISSION ASSEMBLY - 64" (1626 mm) gauge dozer models, Fig. 96 - 120 for complete transmission

1шт.

G102414

HOUSING

ASSEMBLY - transmission, Includes: Ref. #s 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - transmission

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - housing

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - range gear

1шт.

4

A50249

STUD

- 9/16"-12 NC x 2-3/8"

19шт.

5

A50247

DOWEL

- housing

4шт.

6

G35334

GASKET

- housing cover

1шт.

Part of Seal Kit P/N G102662

1шт.

7

232-4119

LOCK NUT,9/16"-12, GC

NUT - hex, self lock, 9/16"-12 NC

19шт.

8

G102017

STUD

- 1/2"-13 NC x 3"

28шт.

9

88871

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

28шт.

10

R14777

PLUG

- drain

1шт.

11

A58613

SEALING WASHER

SEAL - nylon washer

1шт.

Part of Seal Kit P/N G102662

1шт.

12

G100836

TUBE,1.5" OD x 14.25" L

- dipstick

1шт.

13

G100305

DIPSTICK

- with breather

1шт.

14

A50110

TUBE

- suction

1шт.

15

A50109

GASKET

- suction tube

1шт.

Part of Seal Kit P/N G102662

1шт.

16

A50362

STUD

- 3/8" x 16 NC x 1-3/8"

2шт.

17

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

18

92-6

LOCK WASHER,3/8"

2шт.

19

G102110

BOLT

- 1/2"-13 NC x 2"

8шт.

20

G102244

COVER

- shaft

2шт.

21

A50056

GASKET

- shaft cover

2шт.

Part of Seal Kit P/N G102662

1шт.

22

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

8шт.

23

D32117

COPPER WASHER

WASHER, COPPER

8шт.

Part of Seal Kit P/N G102662

1шт.

G102662

SEAL

KIT - seal, Includes: Ref. 6, 11, 15, 21 and 23, Fig. 124 for complete kit.

1шт.
