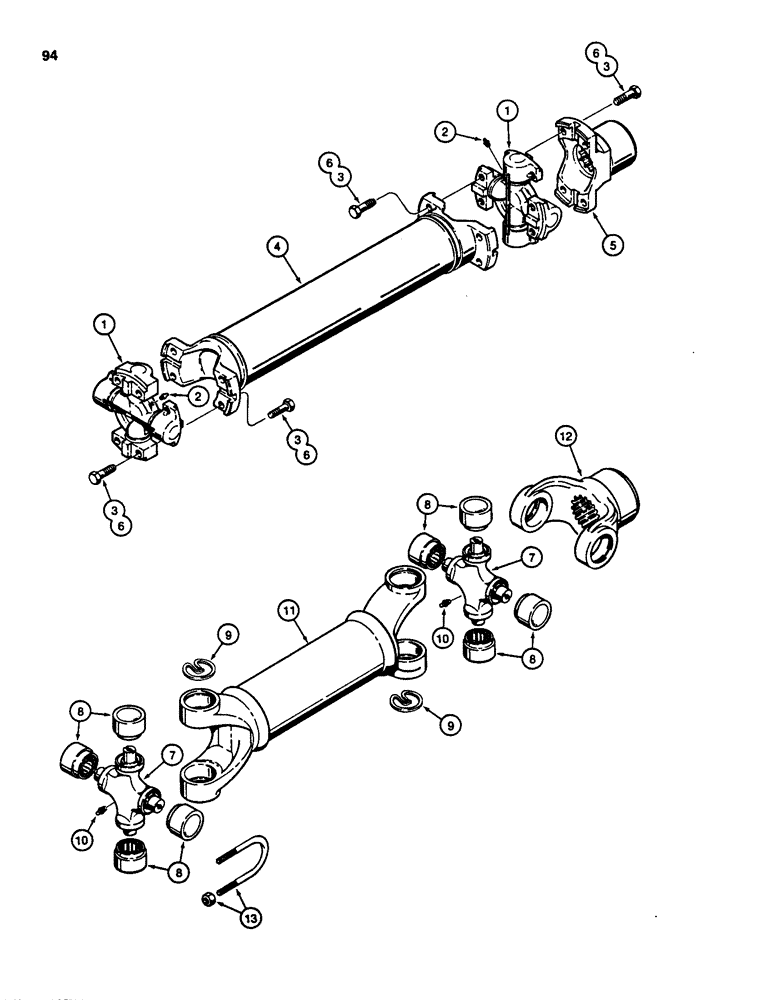

Запчасти Case 450B (094) - DRIVE SHAFT, R42651 DRIVE SHAFT ASSEMBLY, WITH FLANGE-TYPE YOKE (03) - TRANSMISSION

1

R42651

SHAFT

DRIVE SHAFT ASSEMBLY - Mechanics, must be used with A50581 transmission yoke, Fig. 100, if used, Includes: P/N D87263 and Ref. #s 1 - 6

1шт.

D87263

DIFF. SPIDER

UNIVERSAL JOINT ASSEMBLY - drive shaft, Includes: Ref. # 1 - 3

2шт.

1

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4"-24 NF

1шт.

3

A14723

SCREW,Hex, 5/16" - 24 x 3/4", 8 Gr

BOLT - special

8шт.

4

D87264

TUBE,2.5" DIA x 14.062" L

SHAFT - drive shaft assembly

1шт.

5

D37038

YOKE

YOKE - drive shaft to torque converter

1шт.

6

A14723

SCREW,Hex, 5/16" - 24 x 3/4", 8 Gr

BOLT - special

8шт.

R47215

PROPELLER SHAFT

DRIVE SHAFT ASSEMBLY - Dana, must be used with G106153 transmission yoke, see figure 100, if used, w slip yoke, Includes: P/N D70629 and Ref. #s 7 - 10

1шт.

D70629

U-JOINT SPIDER

KIT - universal joint, R47215 drive shaft assembly w/ slip yoke

2шт.

7

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT - drive shaft, R47215 assembly w/ slip yoke

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING - universal joint, R47215 drive shaft assembly w/ slip yoke

4шт.

9

11256

SNAP RING

RETAINING RING - universal joint, R47215 drive shaft assembly w/ slip yoke

4шт.

10

219-10

LUBE NIPPLE,1/4" - 28 NPTF

GREASE FITTING - straight, 1/4"-28 NF taper, R47215 drive shaft assembly w/ slip yoke

1шт.

11

NSS

NOT SOLD SEPARAT

SHAFT - R47215 drive shaft assembly w/ slip yoke

1шт.

12

N7771

YOKE

- drive shaft to torque converter (Replaces N77771), R47215 assembly w/ slip yoke

1шт.

13

H183566

BOLT

U-BOLT - universal joint to transmission yoke, R47215 drive shaft assembly w/ slip

2шт.
