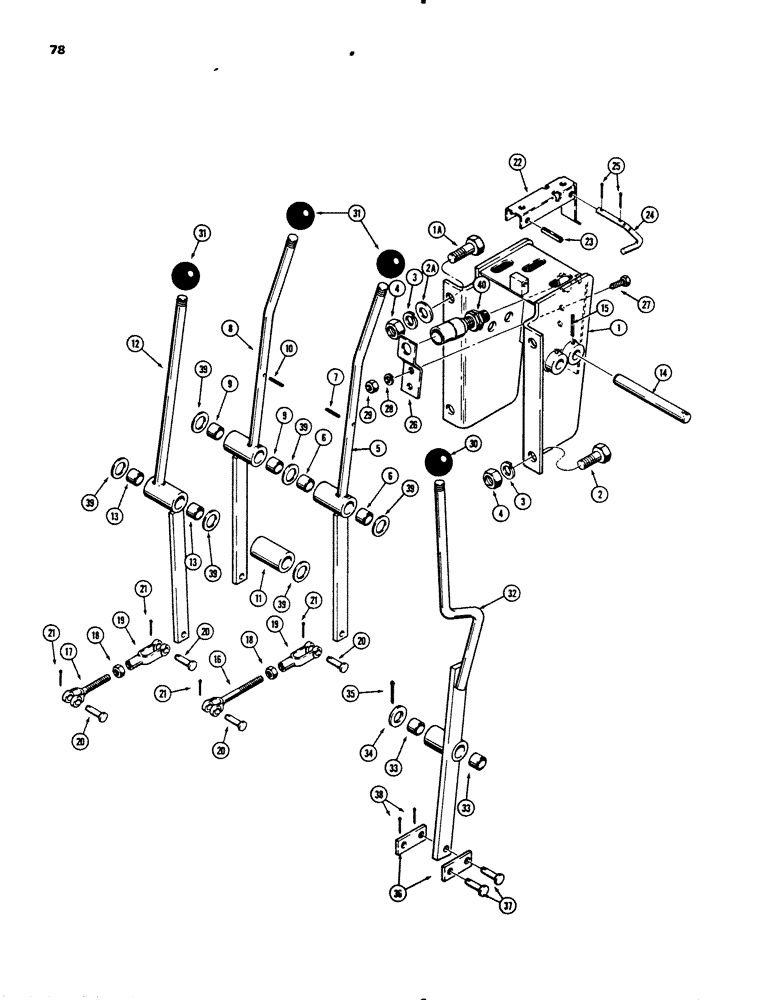

Запчасти Case 450B (078) - TRANSMISSION CONTROLS AND CONTROL TOWER (03) - TRANSMISSION

1

R31299

TOWER - transmission control levers

1шт.

1a

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

2

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

2a

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

3

92-8

LOCK WASHER,1/2"

4шт.

4

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

4шт.

5

R40021

LEVER ASSY.

LEVER - control, RH track speed, Includes: Ref. # 6

1шт.

6

R31144

BUSHING

2шт.

7

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

8

R40019

LEVER ASSY.

LEVER - control, RH track speed, Includes: Ref. #9

1шт.

9

R31144

BUSHING

2шт.

10

138-96

LOCK PIN,3/16" x 1", Slotted

PIN, 3/16" x 1", Slotted

1шт.

11

R42337

SLEEVE

SPACER - control lever

1шт.

12

R40016

LEVER ASSY.

LEVER - control, track direction, Includes: Ref. 13

1шт.

13

R31144

BUSHING

2шт.

14

D34898

SHAFT

- levers

2шт.

15

138-98

LOCK PIN,3/16" x 1 1/4", Slotted

PIN, 3/16" x 1 1/4", Slotted

2шт.

16

G10928

YOKE

END - control rod, RH and LH rear

2шт.

17

D34885

YOKE

END - control rod, center

1шт.

18

25-115

NUT,5/16"-24, G5

- hex, 5/16"-24 NF

3шт.

19

213-3

ADJUSTABLE CLEVIS,5/16"-24

YOKE - adjustable, NF 5/16"-24

3шт.

20

141-53

CLEVIS PIN,5/16" x .940"

plated 5/16" x .940"

6шт.

21

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

6шт.

22

R31303

COVER

- switch, neutral lock

1шт.

23

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN - roll, x 3/8"

1шт.

24

R31454

LOCK

- neutral start, safety

1шт.

25

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

26

R3134

BRACKET - mounting, neutral start switch

1шт.

27

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

28

92-5

LOCK WASHER,5/16"

2шт.

29

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

2шт.

30

70213

KNOB

1шт.

31

D49996

KNOB

3шт.

32

R40045

LEVER ASSY.

LEVER - control, transmission range, Includes: Ref. # 33

1шт.

33

R31144

BUSHING

(Replaces R3114)

2шт.

34

195-41

WASHER,5/8"

1шт.

35

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

36

R22755

LINK

- two speed control, Serial Range: lever-transmission

2шт.

37

141-54

CLEVIS PIN,3/8" x 1 1/16"

2шт.

38

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

39

A7915

SHIM,.0359" Thk

1шт.

40

R40432

SWITCH

- neutral start, push button

1шт.
