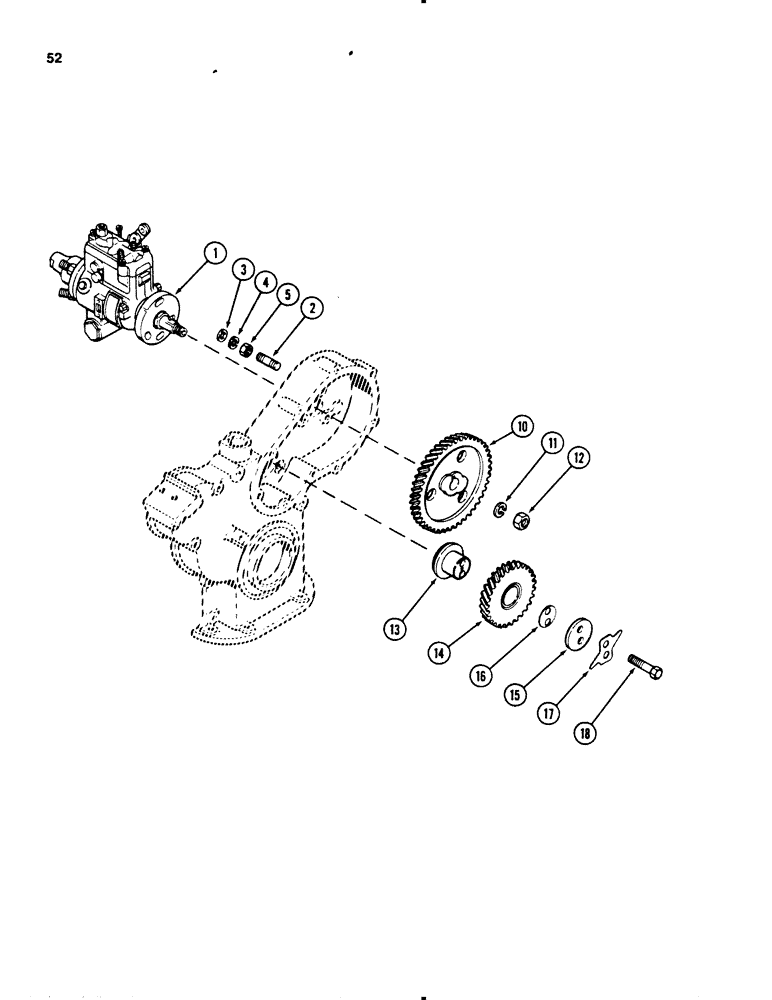

Запчасти Case 450B (052) - INJECTION PUMP DRIVE, 207 TURBOCHARGED DIESEL ENGINE, 207 NATURALLY ASPIRATED DIESEL ENGINE (02) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, naturally aspirated (Fig. 55A)

1шт.

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, turbocharged (Fig. 55A)

1шт.

2

G102128

BOLT

- 3/8 NC x 1-7/16"

3шт.

3

A30043

WASHER

- 3/8 x 8/8 x 1/8" (clipped)

3шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

10

G2076

GEAR

- drive, injection pump

1шт.

11

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

12

25-159

JAM NUT,Jam, 9/16"-18, G5

- hex, jam, 9/16 "NF

1шт.

13

G11726

HUB

- idler gear

1шт.

14

G11852

GEAR

ASSEMBLY - idler, with bushing

1шт.

15

G11732

PLATE

- thrust, idler gear

1шт.

16

G11728

SHIM,.005" Thk

Idler gear (0.14 mm) .005" Thk

1шт.

16

G11729

SHIM,.006" Thk

Idler gear (0.16 mm) .006" Thk

1шт.

16

G11730

SHIM,.007" Thk

Idler gear (0.18 mm) .007" Thk

1шт.

16

G11731

SHIM,.009" Thk

Idler gear (0.23 mm) .009" Thk

1шт.

17

G11746

PLATE

- lock, idler gear

1шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.
