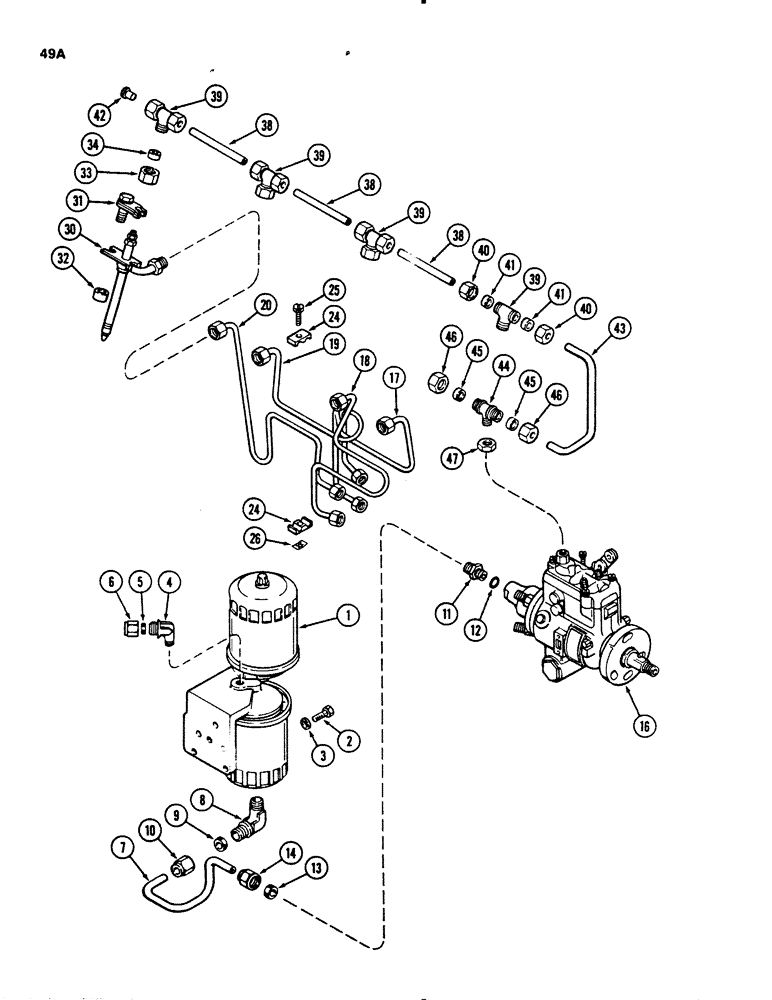

Запчасти Case 450B (049A) - FUEL INJECTION AND FILTER SYSTEM, 207 NATURALLY ASPIRATED DIESEL ENGINE, ENGINE S/N 4310019 & AFTER (02) - FUEL SYSTEM

1

REF

INSTRUCTION

FILTER ASSEMBLY - fuel (Fig. 50)

1шт.

2

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

3

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

3шт.

4

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - filter inlet

1шт.

5

222-103

SLEEVE,5/16" Tube

1шт.

6

222-113

TUBE NUT,9/16"-24

NUT - 5/16 inch tube

1шт.

7

A154898

TUBE

LINE -, Serial Range: filter-pump

1шт.

8

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ASSEMBLY - filter outlet, Includes: Ref. #s 9 & 10

2шт.

9

222-104

SLEEVE,3/8" Tube

- for 3/8 inch tube (10 mm)

1шт.

10

222-114

NUT,5/8"-24

NUT - for 3/8 inch tube (10 mm)

1шт.

11

A51986

FITTING

- straight

1шт.

13

222-103

SLEEVE,5/16" Tube

2шт.

14

222-113

TUBE NUT,9/16"-24

NUT - tube retaining

2шт.

16

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (Fig. 55B)

1шт.

17

A153634

LINE

TUBE ASSEMBLY - injection pump to No. 1 cylinder

1шт.

18

A153635

LINE

TUBE ASSEMBLY - injection pump to No. 2 cylinder

1шт.

19

A153636

LINE

TUBE ASSEMBLY - injection pump to No. 3 cylinder

1шт.

20

A153637

LINE

TUBE ASSEMBLY - injection pump to No. 4 cylinder

1шт.

24

A58709

BRACKET

CLAMP - fuel injection lines

6шт.

25

173-290

SCREW,Sl Rnd Hd, #10 x 2"

- clamp, round head, No. 10 x 1"

2шт.

26

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - Tinnerman, No. 10

2шт.

30

REF

INSTRUCTION

NOZZLE ASSEMBLY - injector (Fig. 51A)

4шт.

31

A37837

CLAMP

ASSEMBLY - injector nozzles

4шт.

32

A37839

SPACER

- nozzle clamp

4шт.

33

A58961

NUT

- tee to injector nozzle

4шт.

34

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

-, Serial Range: nut-tee

4шт.

38

A38644

TUBE

- fuel leak-off

3шт.

39

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE - nozzle and leak-off lines junction

4шт.

40

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube (6 mm)

8шт.

41

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

8шт.

42

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - tee (rear)

1шт.

43

A142906

TUBE

- fuel leak-off (to pump)

1шт.

44

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

ASSEMBLY - fuel leak-off line (one way valve), Includes: Ref. #s 45 & 46

1шт.

45

222-102

SLEEVE,1/4" Tube

(6 mm) 1/4" Tube

2шт.

46

87017024

TUBE NUT,1/2"-24

NUT - for 1/4 inch tube (6 mm)

2шт.

47

A38160

LOCK NUT

- sealing (at pump) 1/8" PT

1шт.

12

218-5004

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk (11 x 2 mm)

1шт.
