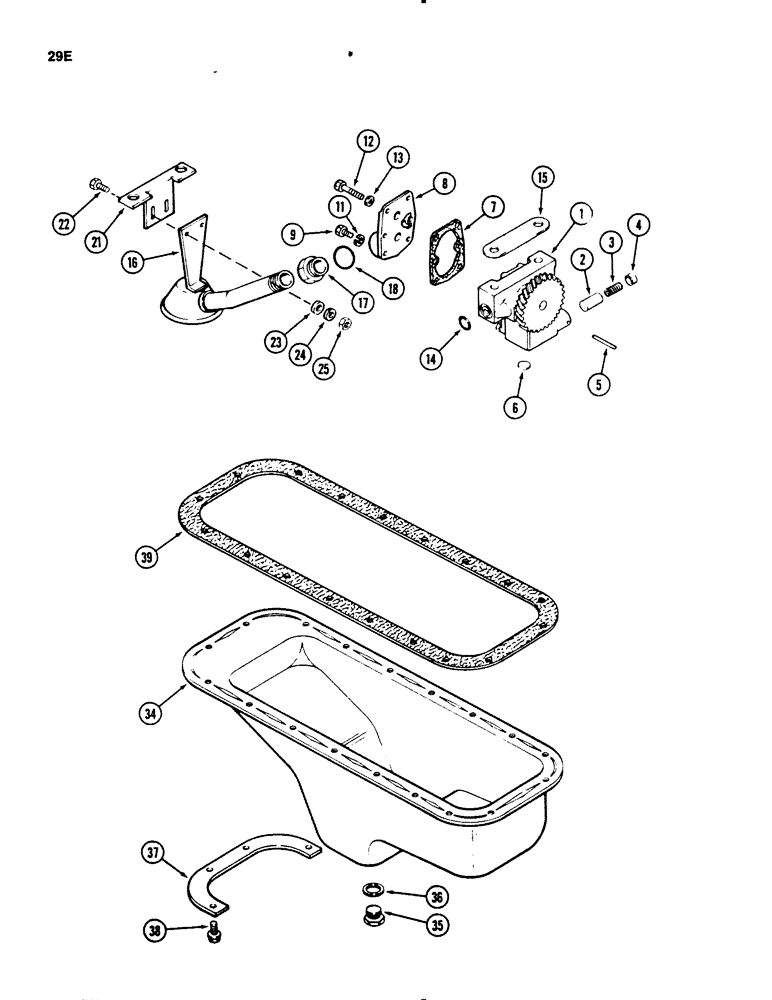

Запчасти Case 450B (029E) - OIL PUMP, 207 TURBOCHARGED DIESEL ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A155145
PUMP, ENGINE OIL
PUMP ASSEMBLY - engine oil
1шт.
2
A155144
VALVE, PRESSURE RELI
VALVE - relief
1шт.
3
G48500
SPRING
- relief valve
1шт.
4
A155550
RETAINER
- relief valve spring
1шт.
5
138-51
LOCK PIN,1/8" x 3/8", Slotted
PIN, 1/8" x 3/8", Slotted
1шт.
6
A39321
PLUG,Cup, 7/16"
- body, cup type, 1/2" (13 mm)
1шт.
7
A153572
GASKET
- pump cover
1шт.
8
NSS
NOT SOLD SEPARAT
COVER - pump body (Reference No. A153533)
1шт.
9
164-530
SCREW,Btn Hd, 1/4" - 20 x 5/8"
BOLT - hex socket head, 1/4 NC x 5/8"
1шт.
9
164-531
HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"
BOLT - hex socket head, 1/4 NC x 3/4"
3шт.
11
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
12
164-534
HEX SOC SCREW,Btn Hd, 1/4" - 20 x 1 1/2"
BOLT - hex socket head, 1/4 NC x 1-1/2"
2шт.
13
193-28
LOCK WASHER,Int Tooth, 1/4"
WASHER - internal Shakeproof, 1/4"
2шт.
14
A153571
O-RING,0.799" ID x 1.005" OD x 0.103"
- oil port, 51/64 x 1 x 3/32" (20 x 25 x 3 mm)
1шт.
15
A153574
SHIM
- pump to bearing cap, 0.002" (0.06 mm)
1шт.
15
A153575
SHIM
- pump to bearing cap, 0.005" (0.13 mm)
1шт.
16
A156894
SCREEN ASSEMBLY - oil
1шт.
17
221-535
NUT - lock, 3/4 inch PT
1шт.
18
A153556
O-RING,1.062" ID x 0.09"
- oil suction tube 1-1/16 " ID (27 mm)
1шт.
21
A155757
BRACKET
- support
1шт.
22
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
23
95-4
WASHER,1/4"
- 5/16 x 3/4 x 1/16 " (8 x 19 x 2 mm)
2шт.
24
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
25
25-104
NUT,1/4"-20, G5
2шт.
34
A155601
PAN, ENGINE OIL
PAN ASSEMBLY - OIL
1шт.
35
A140222
PLUG
- drain, oil pan
1шт.
36
A58608
GASKET
- drain plug, oil pan
1шт.
37
A151279
REINFORCEMENT
STRAP - pan reinforcement, oil
1шт.
38
193-514
SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"
BOLT ASSEMBLY - hex Sems, 5/16 NC x 3/4" oil pan
14шт.
38
193-552
BOLT
- hex socket head, 5/16 NC x 7/8" oil pan
4шт.
39
NSS
NOT SOLD SEPARAT
GASKET - oil pan (Order A44758 kit, Fig. 30)
1шт.
Выбрано товаров: 31
