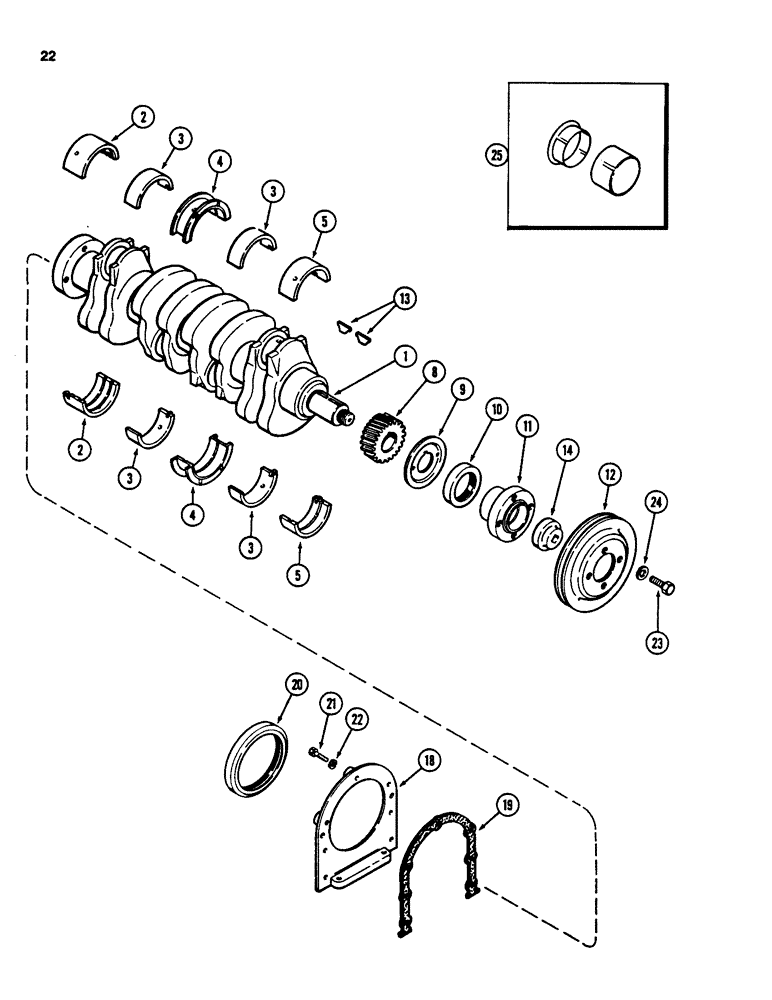

Запчасти Case 450B (022) - CRANKSHAFT, 207 NATURALLY ASPIRATED DIESEL ENGINE (01) - ENGINE

AR144011

REMAN-CRANKSHAFT

CRANKSHAFT - remanufactured (North America only)

1шт.

AC144011

CORE-CRANKSHAFT

RETURN NUMBER - use this part no. to return crankshaft for credit

1шт.

1

A144011

CRANKSHAFT

- engine

1шт.

2

A36495

BEARING LINER,73.72mm ID x 78.54mm OD x 39.69mm W

INSERT - main bearing, rear, standard (Set of 2)

1шт.

2

A36496

LINING

INSERT - main bearing, rear, 0.002 " undersize (0.06 mm) (Set of 2)

1шт.

2

A36497

BEARING LINER,73.44mm ID x 78.54mm OD x 39.69mm W

INSERT - main bearing, rear, 0.010 " undersize (0.26 mm) (Set of 2)

1шт.

2

A36498

KIT

INSERT - main bearing, rear, 0.020 " undersize (0.51 mm) (Set of 2)

1шт.

2

A36499

BEARING LINER

INSERT - main bearing, rear, 0.030 " undersize (0.77 mm) (Set of 2)

1шт.

3

A36485

LINING

INSERT - main bearing, intermediate, standard (Set of 2)

2шт.

3

A36486

LINING

INSERT - main bearing, intermediate, 0.002 "undersize (0.06 mm) (Set of 2)

2шт.

3

A36487

BEARING LINER,73.44mm ID x 78.54mm OD x 25.4mm W

INSERT - main bearing, intermediate, 0.010 " undersize (0.26 mm) (Set of 2)

2шт.

3

A36488

CRANKSHAFT BEARING,3.067" ID x 3.092" OD x 1"

INSERT - main bearing, intermediate, 0.020 " undersize (0.51 mm) (Set of 2)

2шт.

3

A36489

LINING

INSERT - main bearing, intermediate, 0.030 " undersize (0.77 mm) (Set of 2)

2шт.

4

A36490

BEARING LINER,73.41mm ID x 96.84mm OD x 34.87mm W

INSERT - main bearing, center, standard (Set of 2)

1шт.

4

A36491

LINING

INSERT - main bearing, center, 0.002 "undersize (0.06 mm) (Set of 2)

1шт.

4

A36492

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT - main bearing, center, 0.010 " undersize (0.26 mm) (Set of 2)

1шт.

4

A36493

BEARING LINER,73.66mm ID x 96.84mm OD x 34.87mm W

INSERT - main bearing, center, 0.020 " undersize (0.51 mm) (Set of 2)

1шт.

4

A36494

LINING

INSERT - main bearing, center, 0.030 " undersize (0.077 mm) (Set of 2)

1шт.

5

A36480

BEARING LINER,73.69mm ID x 78.54mm OD x 32.66mm W

INSERT - main bearing, front, standard (Set of 2)

1шт.

5

A36481

LINING

INSERT - main bearing, front, 0.002 " undersize (0.06 mm) (Set of 2)

1шт.

5

A36482

BEARING LINER,73.44mm ID x 78.54mm OD x 32.66mm W

INSERT - main bearing, front, 0.010"undersize (0.26 mm) (Set of 2)

1шт.

5

A36483

LINING

INSERT - main bearing, front, 0.020 " undersize (0.51 mm) (Set of 2)

1шт.

5

A36484

LINING

INSERT - main bearing, front, 0.03"undersize (0.77 mm) (Set of 2)

1шт.

8

A39288

GEAR

crankshaft

1шт.

9

A29259

SLINGER

- oil

1шт.

10

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, front, 2 x 3 x 1/2 " (51 x 76 x 13 mm)

1шт.

11

A156746

HUB

1шт.

12

A166076

PULLEY

1шт.

A154021

PULLEY

double groove

1шт.

13

A39132

KEY

- pulley and gear

1шт.

14

A166176

NUT

- pulley retaining

1шт.

18

A38390

RETAINER

- rear oil seal

1шт.

19

A39188

GASKET

- retainer

1шт.

20

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

- oil, rear, 4 x 5 x 1/.2 " (102 x 127 x 13 mm)

1шт.

20a

A51339

OIL SEAL,101.6mm ID x 127.1mm OD x 9.5mm Thk

wear sleeve's part number is A49851

1шт.

21

26-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 "

4шт.

21

26-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

- hex, 1/4 NC x 1 "

3шт.

22

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

7шт.

23

113-310

BOLT,Hex, 7/16" - 14 x 1", Gr 5

4шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

25

A155893

SLEEVE

KIT - oil sleeve, front

1шт.
