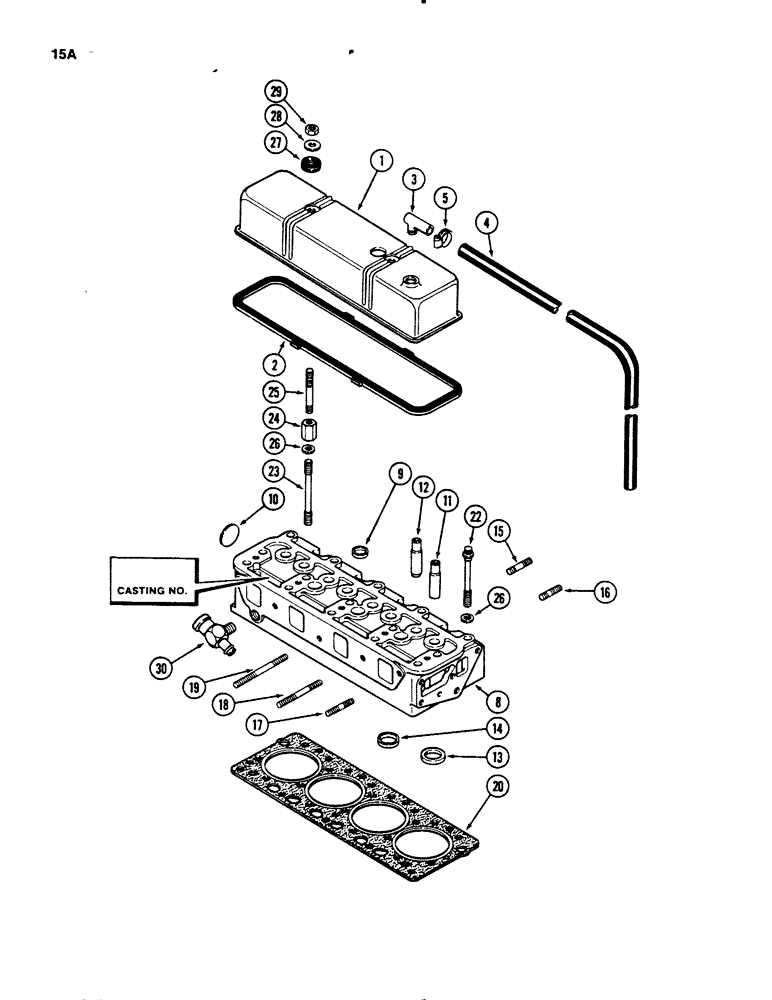

Запчасти Case 450B (015A) - CYLINDER HEAD AND COVER, 207 TURBOCHARGED DIESEL ENGINE (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A36815
COVER
- cylinder head
1шт.
2
A43030
GASKET,3.05mm Thk
- cover to cylinder head
1шт.
4
A39570
HOSE
HOSE - breather tube
1шт.
5
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - breather hose, 9/16 to 1-1/16 " (14 to 27 mm)
1шт.
8
A166030
HEAD
ASEMBLY - cylinder (Casting No. 976479)
1шт.
8
A155892
CYLINDER HEAD
HEAD ASSEMBLY - cylinder (Casting No. A155392), Includes: Ref.#s9 - 14
1шт.
9
41-1016
PLUG,Cup, 1"
- top, cup type, 1 inch (25 mm)
3шт.
10
41-1028
PLUG,Cup, 1 3/4"
- rear, cup type, 1-3/4" (44 mm)
1шт.
11
G2069
GUIDE
- exhaust valve
4шт.
12
G2068
GUIDE
- intake valve
4шт.
13
A39268
INSERT
- exhaust valve seat
4шт.
14
A155397
INSERT
- intake valve seat
4шт.
15
A140924
STUD
- exhaust manifold, clamps, 3/8 NC x 2-1/16 "
3шт.
16
A29431
STUD
- exhaust manifold, ends, 3/8 NC x 1-3/4"
2шт.
17
A140924
STUD
- intake manifold, end, 3/8 NC x 2-7/16 "
1шт.
17
A155310
STUD
- intake manifold, end, 3/8 NC x 3-5/32 "
1шт.
18
A153248
STUD
- intake manifold, intermediate, 3/8 NC x 4-13/16 "
2шт.
19
A51500
STUD
- intake manifold, center, 3/8 NC x 5-5/16 "
1шт.
20
A148745
CYLINDER HEAD GASKET
- cylinder, Serial Range: head-block
1шт.
22
A153427
12 PT SCREW
BOLT - 12 point head, 1/2 x 4 "NC
4шт.
22
A39049
12 PT SCREW
BOLT - 12 point head, 1/2 NC x 5-5/8 "
13шт.
23
A36902
STUD
- 1/2 NC x 5-5/8 "
2шт.
24
A51114
NUT
- 1/2 NC and 3/8 "NC
2шт.
25
A51271
STUD
- 3/8 NC x 3-3/4"
2шт.
26
A39046
WASHER,13.11mm ID x 22.23mm OD x 3.34mm Thk
- 1/2 x 7/8 x 1/8 "(13 x 22 x 3 mm)
19шт.
27
A142098
GROMMET
- cover (rubber)
2шт.
28
195-137
WASHER,13/32" x 1 1/8" x .180"
- 3/8 x 1-1/8 x 1/8 " (10 x 29 x 3 mm)
2шт.
29
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
2шт.
30
221-1693
TEE,Street, 1/2" NPT
CONNECTOR - oil cooler hose
1шт.
321-6255
DECAL - engine information (Not shown)
1шт.
Выбрано товаров: 31
