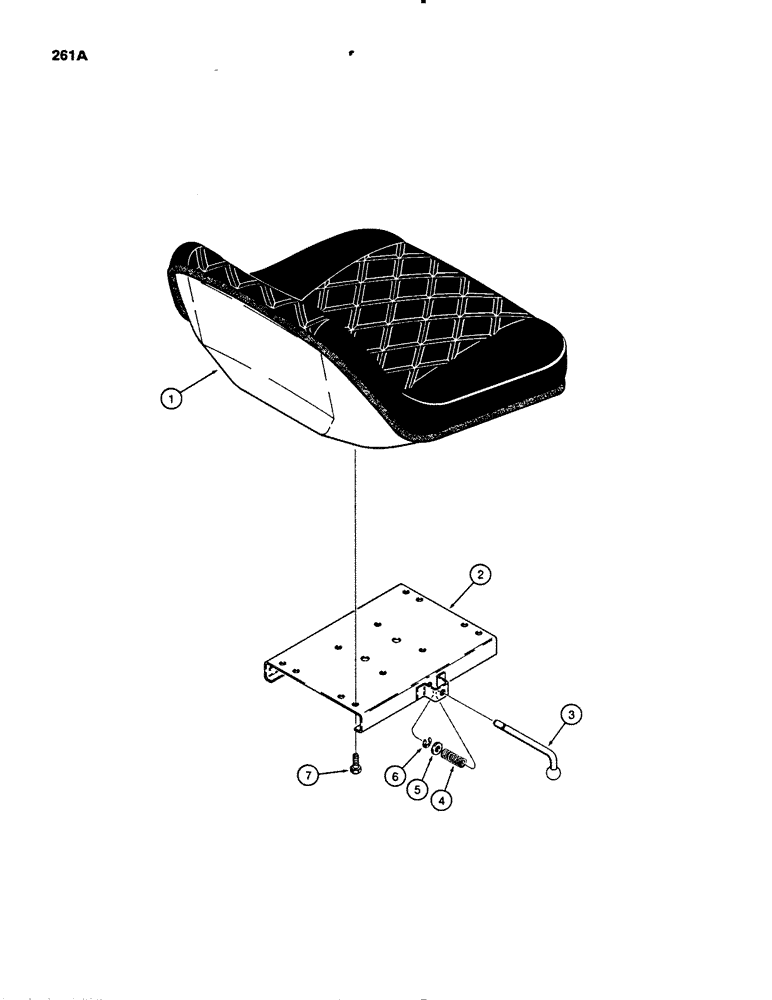

Запчасти Case 450B (261A) - BACKHOE SEAT (18) - ATTACHMENT ACCESSORIES

R48272

SEAT

BACKHOE SEAT ASSEMBLY - square-shaped, if used, Includes: Ref. #1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - square-shaped

1шт.

S114835

SLIDE

PLATE ASSEMBLY - seat slide, Includes: Ref. #2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE - seat slide

1шт.

3

D40765

LEVER

- seat adjusting

1шт.

4

D40766

SPRING

- lever

1шт.

5

195-521

WASHER,5/16", SAE

- flat, 5/16", plated

1шт.

6

D40767

RING

RETAINING RING - lever

1шт.

7

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.
