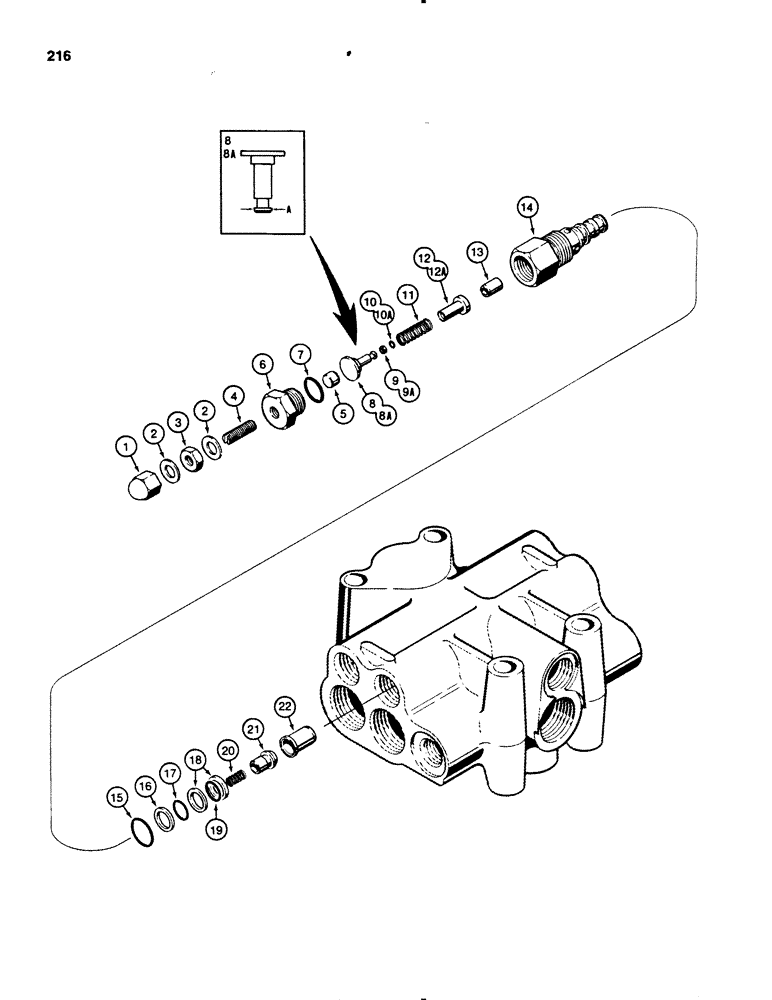

Запчасти Case 450B (216) - CIRCUIT RELIEF VALVE AND LOAD CHECK VALVE (07) - HYDRAULIC SYSTEM

N6009

VALVE

ASSEMBLY - circuit relief and load check, Includes: Ref. 1 - 22

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16" -24 NF

1шт.

2

D26270

WASHER, SEALING

WASHER - special

2шт.

3

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

4

176-297

SET SCREW,5/16"-24 x 1", Slotted

ADJUSTING SCREW - 5/16" -24 NF x 1"

1шт.

5

N6042

PLUG

- stop

1шт.

6

D66437

CAP

- circuit relief valve, Includes: Ref. #7

1шт.

8

D37073

GUIDE

- spring, 7/32" (5.5 mm) diameter at point A, see illustration, also order Ref. #9, 10, and 12, must be replaced as a matched set

1шт.

8a

N7985

GUIDE

- spring, 9/32" (7 mm) diameter at point A, see illustration, also order Ref. 9A, 10A, and 12A, must be replaced as a matched set

1шт.

9

D40357

RING

BACKUP RING - O-ring, item 8 spring guide only, see identification, if used

1шт.

9a

D54860

RING

BACKUP RING - O-ring, item 8A spring guide only, see identification, if used

1шт.

10

D40356

O-RING

- item 8 spring guide only, see identification, if used

1шт.

10a

A51274

O-RING,0.145" ID x 0.285" OD

- item 8A spring guide only, see identification, if used

1шт.

11

D37148

SPRING

- poppet

1шт.

12

D37074

PLUNGER

POPPET - also order Ref. #s8, 9, and 10, must be replaced as a matched set

1шт.

12a

D37151

PLUNGER

POPPET - also order Ref. #s 8A, 9A, and 10A, must be replaced as a matched set

1шт.

13

D37075

SEAT

- poppet

1шт.

14

D37072

CAP

BODY - circuit relief valve

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- body

1шт.

16

D37071

RING

BACKUP RING - center O-ring

1шт.

17

D26265

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- center

1шт.

18

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

BACKUP RING - small O-ring

2шт.

19

A18414

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

- small

1шт.

20

D37067

SPRING

- poppet

1шт.

21

D37068

VALVE POPPET

POPPET - load check valve

1шт.

22

D37069

SLEEVE

SEAT - poppet

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, cap

1шт.
