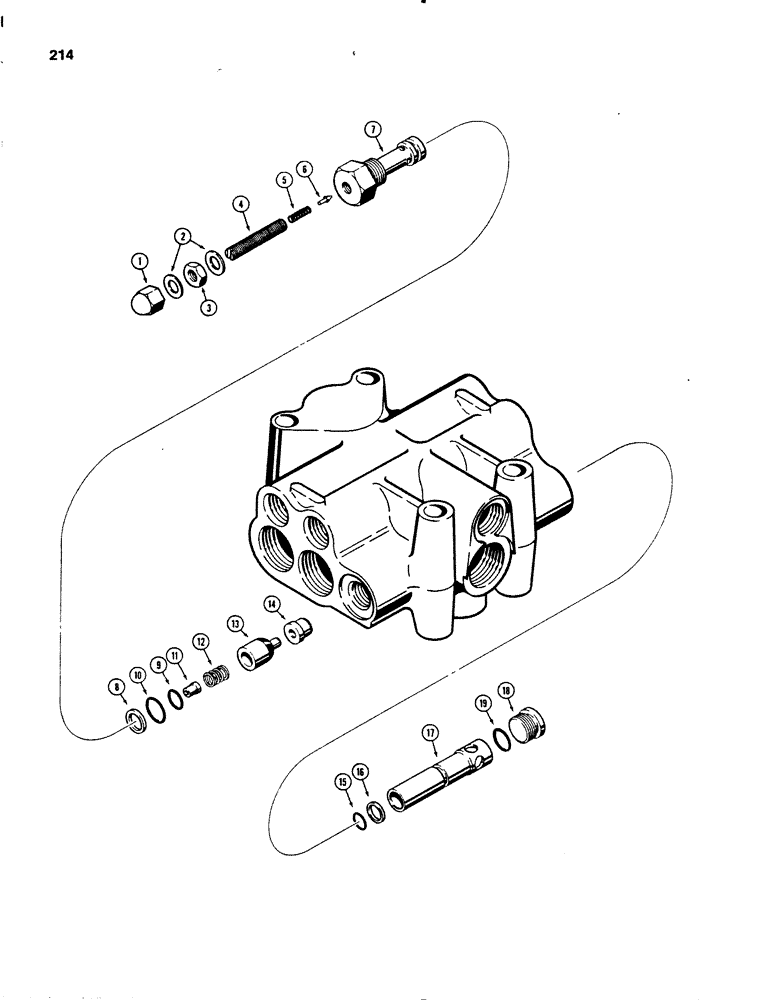

Запчасти Case 450B (214) - W16129 MAIN RELIEF VALVE, ALL MODELS EXCEPT DOZER MODELS WITH A BACKHOE (07) - HYDRAULIC SYSTEM

W16129

VALVE PRESSURE RELIE

MAIN RELIEF VALVE ASSEMBLY - control valve, Includes: Ref. 1 - 19

1шт.

1

129-514

CROWN NUT,Low, 5/16" - 24

DOME NUT - 5/16"

1шт.

2

D26270

WASHER, SEALING

WASHER - special, 5/16"

2шт.

3

86637933

JAM NUT,5/16" - 24, Gr 5

1шт.

4

176-296

SET SCREW,5/16"-24 x 1 3/4", Slotted

SCREW - adjusting, main relief valve, 5/16" -24 NF x 1-3/4"

1шт.

5

D26268

SPRING

- plunger

1шт.

6

D26267

PLUNGER

- relief valve

1шт.

7

A25291

CAP

BODY - relief valve

1шт.

8

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - L30444 O-ring

1шт.

9

L30444

O-RING,0.521" ID x 0.661" OD

- small

1шт.

11

D26266

SEAT

- plunger

1шт.

12

D52319

SPRING

- poppet

1шт.

13

D37062

VALVE

POPPET - main relief valve

1шт.

14

D37063

SEAT

- poppet

1шт.

15

L30444

O-RING,0.521" ID x 0.661" OD

- sleeve

1шт.

16

L30443

BACK-UP RING,0.547" ID x 0.049" Width

BACKUP RING - L30444 O-ring

1шт.

17

D83201

SLEEVE

- seat

1шт.

18

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Main relief valve, Incl Ref #19 Hex Soc, 3/4"-16 ORB

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
