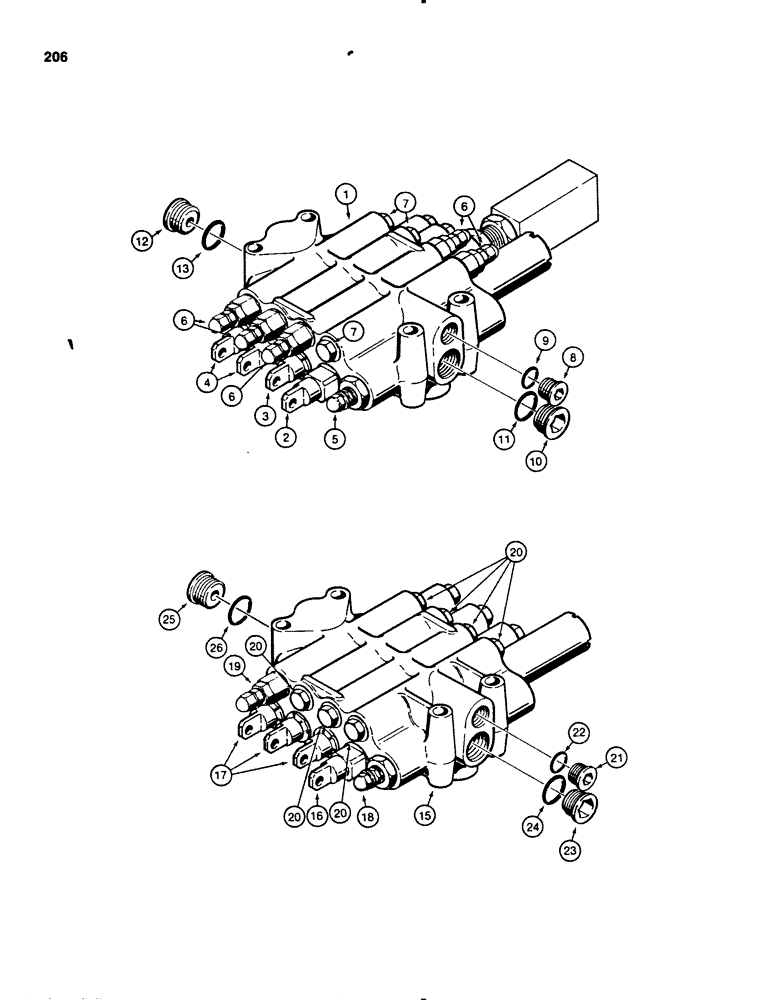

Запчасти Case 450B (206) - R43253 AND R46419 LOADER CONTROL VALVES, FOUR SPOOL, WITH MAGNETIC DETENT (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
R43253
VALVE
CONTROL VALVE ASSEMBLY - loader, four spool, Parker No. VDP22FDDD50, Includes: Ref. #2 - 13
1шт.
1
R46419
VALVE
CONTROL VALVE ASSEMBLY - loader, four spool, Parker No. VDP22FDDD58, no longer available, order R43253 control valve assembly
1шт.
2
N6592
VALVE
SPOOL - lift, four position, parts list Fig. 212
1шт.
3
N6007
SPOOL - bucket, three position, with magnetic detent, parts list Fig. 210
1шт.
4
D37050
SPOOL
- clam bucket and ripper, three position, parts list Fig. 208
2шт.
5
W16129
VALVE PRESSURE RELIE
MAIN RELIEF VALVE - parts list Fig. 214
1шт.
6
NSS
NOT SOLD SEPARAT
SECONDARY RELIEF VALVE - parts list Fig. 216
5шт.
7
N6001
VALVE, CHECK
LOAD CHECK VALVE - parts list Fig. 218
3шт.
8
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Valve port, Incl Ref #9 Hex Soc, 3/4"-16 ORB
1шт.
10
9841223
PLUG,1-1/16" - 12 ORB
Valve port, Incl. Ref 11 Hex Soc, 1 1/16"-12 ORB
1шт.
11
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug
1шт.
12
218-5214
PLUG,Hex Soc, 1 5/16"-12 ORB
Valve port, Incl. Ref 13 Hex Soc, 1 5/16"-12 ORB
1шт.
13
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- plug
1шт.
15
R43261
VALVE
CONTROL VALVE - dozer four spool, Parker No. VDP22FDDD54, angle tilt control valve, Includes: Ref. #16 - 26
1шт.
16
N6592
VALVE
SPOOL - lift, four position, parts list Fig.212, R43261 angle tilt dozer control vavle
1шт.
17
D37050
SPOOL
- bucket, angle, and ripper or pull behind attatchments, three position, parts list Fig. 208, R43261 tilt dozer control valve - 4
3шт.
18
W16129
VALVE PRESSURE RELIE
MAIN RELIEF VALVE - parts list Fig. 214, R43261 angle tilt dozer control vavle - 4 spool
1шт.
19
NSS
NOT SOLD SEPARAT
SECONDARY RELIEF VALVE - parts list Fig. 216, R43261 angle tilt dozer control - 4 spool
1шт.
20
N6001
VALVE, CHECK
LOAD CHECK VALVE - parts list Fig. 218, R43261 angle tilt dozer control - 4 spool
7шт.
21
71100209
PLUG,Hex Soc, 3/4"-16 ORB
Valve port, R43261 angle tilt dozer control - 4 spool, Incl Ref #22 Hex Soc, 3/4"-16 ORB
1шт.
23
9841223
PLUG,1-1/16" - 12 ORB
Valve port, R43261 angle tilt dozer control - 4 spool, Incl. Ref 24 Hex Soc, 1 1/16"-12 ORB
1шт.
24
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
- plug, R43261 angle tilt dozer control valve - 4 spool
1шт.
25
218-5214
PLUG,Hex Soc, 1 5/16"-12 ORB
Valve port, R43261 angle tilt dozer control valve - 4 spool Hex Soc, 1 5/16"-12 ORB
1шт.
26
218-5010
O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro
- plug, R43261 angle tilt dozer control valve - 4 spool
1шт.
9
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, plug
1шт.
22
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, plug, R43261 angle tilt dozer control valve - 4 spool
1шт.
Выбрано товаров: 26
