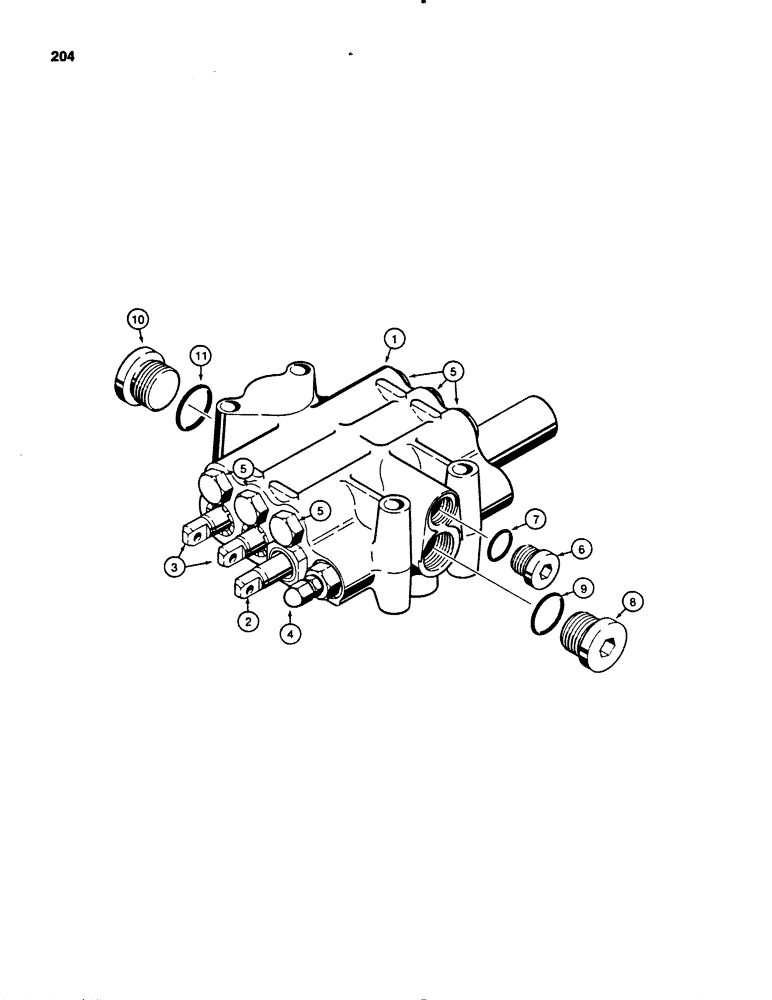

Запчасти Case 450B (204) - R43260 ANGLE TILT DOZER CONTROL VALVE, THREE SPOOL (07) - HYDRAULIC SYSTEM

1

R43260

VALVE

CONTROL VALVE - dozer, three spool, Parker No. VDP22FDD80, Includes: Ref. #2 - 11

1шт.

2

N6592

VALVE

SPOOL - lift, four position, parts list Fig. 212

1шт.

3

D37050

SPOOL

- tilt and angle, three position, parts list Fig. 208

2шт.

4

W16129

VALVE PRESSURE RELIE

MAIN RELIEF VALVE - parts list Fig. 214

1шт.

5

N6001

VALVE, CHECK

LOAD CHECK VALVE - parts list Fig. 218

6шт.

6

71100209

PLUG,Hex Soc, 3/4"-16 ORB

Valve port, Incl Ref #7 Hex Soc, 3/4"-16 ORB

1шт.

8

9841223

PLUG,1-1/16" - 12 ORB

Valve port, Incl. Ref 9 Hex Soc, 1 1/16"-12 ORB

1шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- plug

1шт.

10

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Valve port, Incl. Ref 11 Hex Soc, 1 5/16"-12 ORB

1шт.

11

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- plug

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, plug

1шт.
