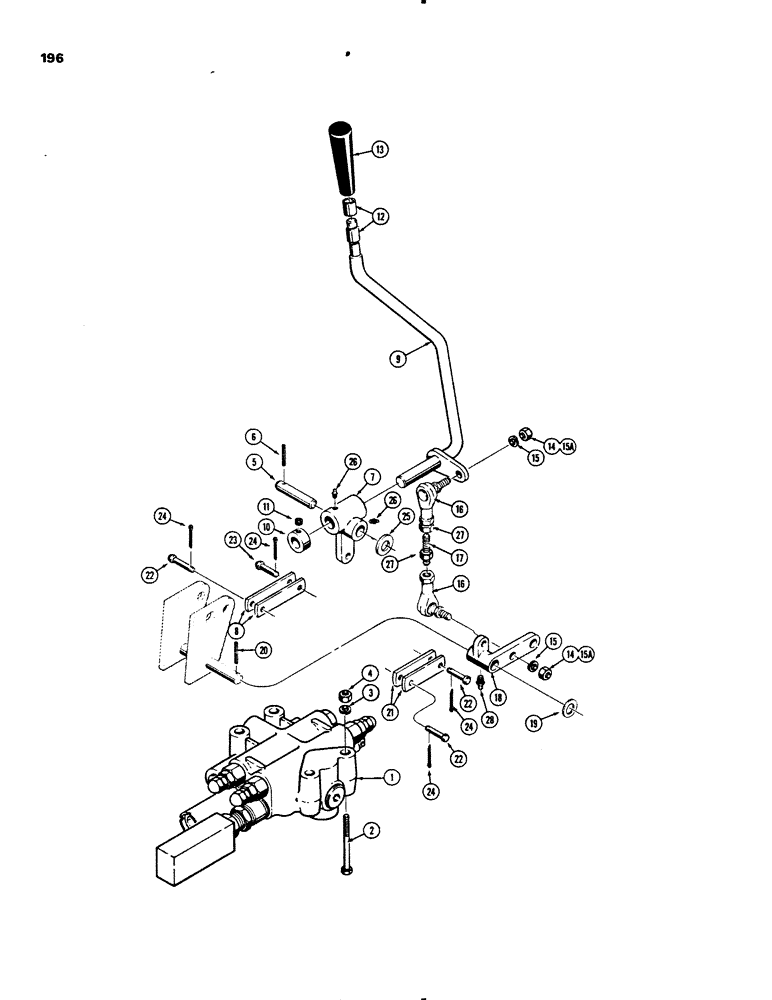

Запчасти Case 450B (196) - TWO SPOOL CONTROL VALVE AND CONTROL LEVER, ALL CONTROL VALVES HAVE PART NO. ON IDENTIFICATION PLATE (07) - HYDRAULIC SYSTEM

1

R43251

VALVE

CONTROL VALVE - two spool, used on loader models with return-to- dig, used on models without turbocharged engine, parts list figure 202

1шт.

1

R46417

VALVE

CONTROL VALVE - two spool, used on loader models with return- to-dig, used on models with turbocharged engine, parts list figure 202

1шт.

2

13-668

BOLT,Hex, 3/8" - 16 x 4-1/4", Gr 5

- hex head, 3/8" - 16 NC x 4-1/4"

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

5

D43452

PIN,12.72mm OD x 61.91mm L

- retaining, pivot lever

1шт.

6

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

7

R45489

BRACKET

LEVER - pivot

1шт.

8

D43453

LINK

- long, use with all control valves

2шт.

9

R38663

LEVER

CONTROL LEVER - control valve

1шт.

10

D43620

COLLAR

- control lever

1шт.

11

83-54

SET SCREW,Hex Soc, 5/16"-18 x 1/4", Cup Pt

1шт.

12

R38655

RING

- knob

2шт.

13

R38654

KNOB

- control lever

1шт.

14

25-116

NUT,Hex, 3/8"-24, G5

- hex, 3/8" - 24 NF, no longer used, service with 131-1232 nut

2шт.

15

92-6

LOCK WASHER,3/8"

no longer used 3/8"

2шт.

15a

131-1232

BOLT (MACHINE)

NUT - hex, self-locking, 3/8" - 24 NF

2шт.

16

R43593

BALL

JOINT - connecting

2шт.

17

R39800

STUD

- 3/8" - 24 NF

1шт.

18

R39796

ARM ASSY.

BELLCRANK - control lever

1шт.

19

A26411

WASHER

- special

1шт.

20

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

Pin installs into bracket weldment D43455. This bracket welds onto the frame and the pivot pin that weld into the bracket is D43458. by bb1/9/96

1шт.

21

D43454

LINK

- short, all control valves

2шт.

22

141-53

CLEVIS PIN,5/16" x .940"

plated - link 5/16" x .940"

3шт.

23

141-60

CLEVIS PIN,5/16" x 1 1/8"

- link, 5/16" x 1-1/8"

1шт.

24

132-26

COTTER PIN

- Pin, Split (Cotter), 3/32" x 3/4"

4шт.

25

195-2065

WASHER,33/64" x 7/8" x .049"

- spacer

1шт.

26

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF

2шт.

27

25-156

JAM NUT,Jam, 3/8"-24, G5

- hex, 3/8" -24 NF

2шт.

28

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

GREASE FITTING - straight, 1/4" - 28 NF, if used

1шт.
