(188) - G101229 LIFT CYLINDER, ANGLE TILT DOZER

Запчасти Case 450B (188) - G101229 LIFT CYLINDER, ANGLE TILT DOZER (07) - HYDRAULIC SYSTEM

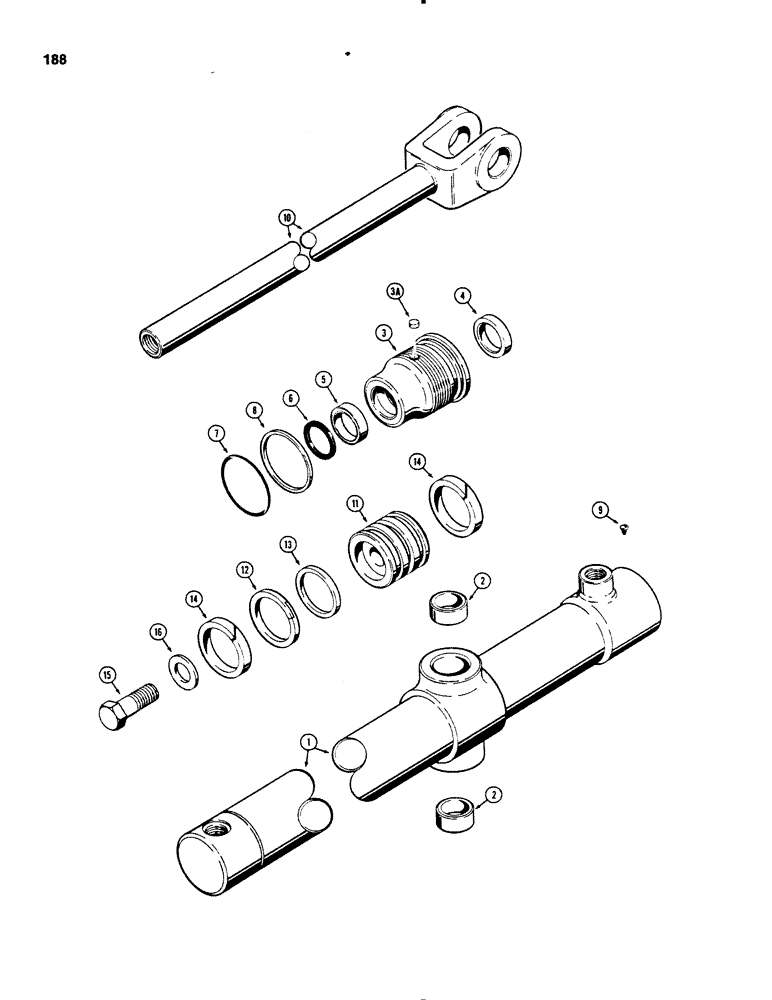

Схема запчастей Case 450B - (188) - G101229 LIFT CYLINDER, ANGLE TILT DOZER (07) - HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G101229

CYLINDER

ASSEMBLY - 2-1/2" (64 mm) diameter x 28" (711 mm) stroke, Includes: Ref. #1 - 16

2шт.

1

G34346

CYLINDER ASSY.,2.5" ID x 35" L

TUBE ASSEMBLY - cylinder

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- tube

2шт.

G33578

GLAND

ASSEMBLY - cylinder, Includes: Ref. #3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

D95141

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit P/N G105551

1шт.

5

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, wide, P/N G100775 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G105551

1шт.

6

G104961

SEAL

- piston rod, narrow, used in addition to item 5 in some glands

1шт.

Part of Seal Kit P/N G105551

1шт.

7

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105551

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105551

1шт.

9

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8 - 32 NC x 1/4", if used, not required when nylon plug is used

1шт.

10

G34348

ROD

ASSEMBLY - piston, 1-1/4" (31 mm) diameter

1шт.

11

G100708

PISTON

- cylinder

1шт.

12

G102289

SEAL,59.92mm ID x 64.64mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105551

1шт.

13

G100713

SEALING RING,Square, 5.28mm Thk x 49.91mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105551

1шт.

14

G100714

RING

- wear

2шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex head, 3/4" - 16 NC x 2-1/2", grade 8

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

1шт.

G105551

SEAL

KIT - seal, Includes: Ref. 4-8, 12, 13 and P/N G100775, same as G102407 kit plus Ref. # 6 above

1шт.

G100775

SEAL

- rod, service option - severe heat or cold

1шт.

Part of Seal Kit P/N G105551

1шт.
