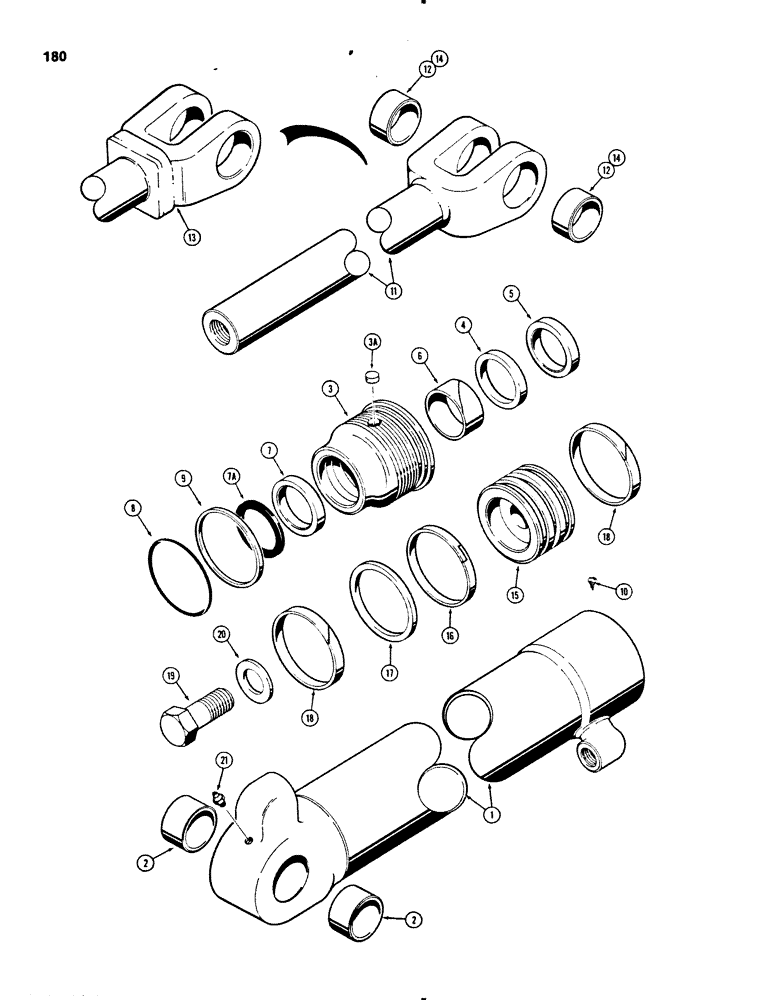

Запчасти Case 450B (180) - G101223, G101224 AND G105628 LOADER LIFT CYLINDERS (07) - HYDRAULIC SYSTEM

G101223

CYLINDER

ASSEMBLY - left-hand, 3-1/2" (88 mm) diameter x 31" (838 mm) stroke

1шт.

G101224

CYLINDER

ASSEMBLY - right-hand, 3-1/2" (88 mm) diameter 31" (838 mm) stroke, no longer available, order G105628 cylinder

1шт.

G105628

CYLINDER

ASSEMBLY - right-hand, 3-1/2" (88 mm) diameter x 31" (838 mm) stroke, Includes: Ref.# 1 - 21

1шт.

1

D35064

TUBE

ASSEMBLY - G101224 and G105628 clinders

1шт.

1

D35063

TUBE

ASSEMBLY - G101223 cylinder, Includes: Ref. #2

1шт.

2

D35071

BUSHING

- all tubes

2шт.

G34629

GLAND

ASSEMBLY - cylinder, Includes: Ref. #3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

3a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINING RING - gland

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N G105546

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N G105546

1шт.

7

D36971

RING

SEAL - piston rod, wide, P/N G100776 can be used for extreme heat or cold

1шт.

Part of Seal Kit P/N G105546

1шт.

7a

G102647

SEAL

- piston rod, narrow, used in addition ti Ref. 7 in some glands

1шт.

Part of Seal Kit P/N G105546

1шт.

8

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G105546

1шт.

9

G32126

BACK-UP RING,89.28mm ID x 95.38mm OD x 1.4mm Thk

BACKUP RING - gland O-ring

1шт.

Part of Seal Kit P/N G105546

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self-tapping, no. 8-32 NC x 1/4", if used, not required when nylon plug is used

1шт.

11

G33604

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, G101223 cylinder, Includes: Ref. #12

1шт.

12

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

G101985

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, G101224 cylinder, no longer available, order G105689 rod

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

13

G105689

ROD

ASSEMBLY - piston, 2" (51 mm) diameter, G101224 and G105628 cylinders, Includes: Ref. #14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G100694

PISTON

- cylinder

1шт.

16

G102286

SEAL,Locking, 85.47mm ID x 90.19mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N G105546

1шт.

17

G100710

RING,Square, 5.28mm Thk x 75.31mm ID

BACKUP RING - piston seal

1шт.

Part of Seal Kit P/N G105546

1шт.

18

G100711

SEAL,Split, 82.55mm ID x 88.9mm OD x 9.52mm Thk

2шт.

Part of Seal Kit P/N G105546

1шт.

19

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

20

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

1шт.

G105546

SEAL

KIT - seal, Includes: Ref. 5-9, 16-18 and P/N G100778, same as G102402 kit plus item 7A above

1шт.

G100778

SEAL

- rod, service option - severe heat or cold

1шт.

Part of Seal Kit P/N G105546

1шт.
