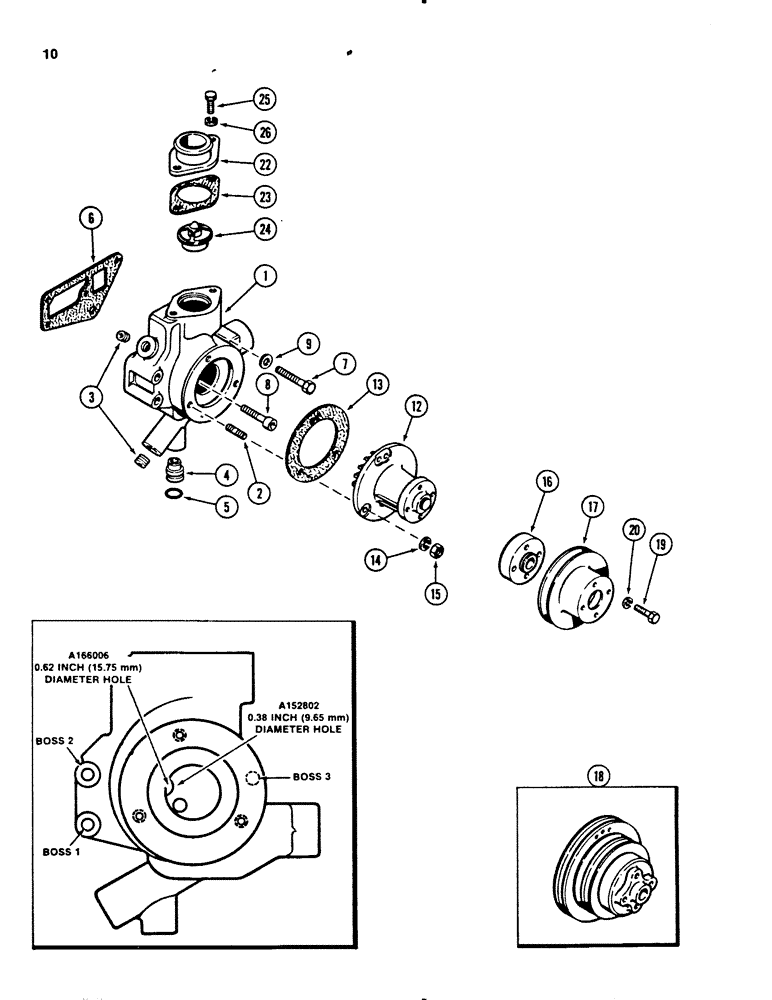

Запчасти Case 450B (010) - WATER PUMP, 207 TURBOCHARGED DIESEL ENGINE, 207 NATUREALLY ASPIRED DIESEL ENGINE (01) - ENGINE

1

A166006

BODY

BODY ASSEMBLY - water pump (Used with A166029 and A166030 cylinder head)

1шт.

1

A152802

PUMP

BODY ASSEMBLY - water pump (Used with A166029 and A155892 cylinder head),Includes: Ref.#s 2 - 4

1шт.

2

A29433

STUD

STUD - 3/8 NC x 1 inch

3шт.

3

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - socket head, 3/8 inch PT

2шт.

4

A152715

COUPLING

FITTING - body to timing gear cover

1шт.

5

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

O-RING - fitting, 3/4 x 1 x 1/8" (19 x 25 x 3 mm) (Order A42597)

1шт.

6

A38084

GASKET,1.27mm Thk

GASKET - body to cylinder head

1шт.

7

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, (Boss 1) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

7

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, (Boss 3) Hex, 3/8"-16 x 3", G5

1шт.

7

113-203

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

BOLT - hex, 3/8 NC x 3-1/4" (Boss 2)

1шт.

8

61-632

HEX SOC SCREW,3/8"-16 x 2"

BOLT - socket head, 3/8 NC x 2" (inside body)

1шт.

9

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

A153509

PUMP

PUMP ASSEMBLY - water, turbocharged (includes Ref 13)

1шт.

12

A146584

PUMP, WATER

PUMP ASSEMBLY - water, new, naturally aspired, Includes: Ref.# 13

1шт.

12

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

12

A146584R

REMAN-WATER PUMP

Reman For New P/N A146584, Pump Assembly

1шт.

12

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

12

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

12

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

13

A38083

GASKET

GASKET -, Serial Range: pump-body

1шт.

14

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

3шт.

16

A37191

BUSHING

SPACER - fan pulley

1шт.

17

G11339

PULLEY

PULLEY - fan drive, naturally aspired

1шт.

18

A155641

PULLEY

PULLEY - fan drive, turbocharged

1шт.

19

113-104

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

4шт.

20

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

22

G2144

FITTING

HOUSING - thermostat

1шт.

23

G46907

GASKET

GASKET -, Serial Range: housing-body

1шт.

24

A57641

THERMOSTAT

THERMOSTAT - 180deg.F (82 deg. C)

1шт.

25

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

26

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.
