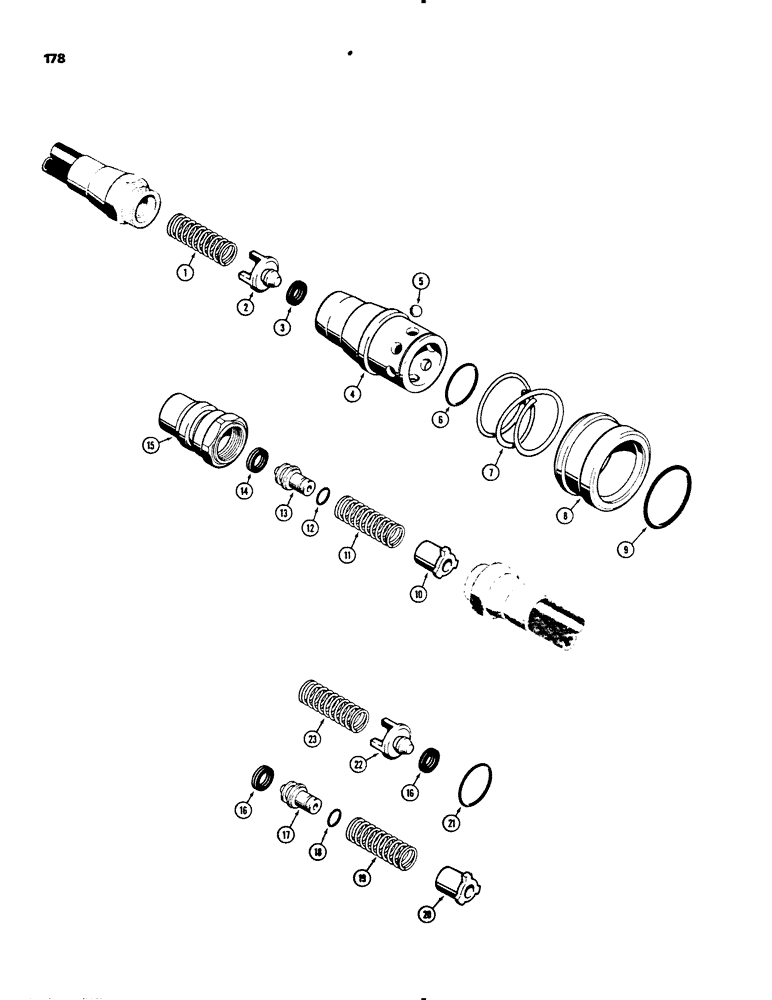

Запчасти Case 450B (178) - HYDRAULIC QUICK DISCONNECT COUPLINGS, FEMALE COUPLING (07) - HYDRAULIC SYSTEM

A28542

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, service kit parts listed below, Includes: Ref.#1 - 9

2шт.

1

A11324

SPRING

- piston

1шт.

2

A26215

PISTON

- coupling

1шт.

3

A33964

SEAL

- piston

1шт.

4

A27349

BODY

- female coupling

1шт.

5

211-7

BALL,1/4" Dia

- steel, body 1/4" Dia

8шт.

6

A34848

O-RING

- body

1шт.

7

A27354

SPRING

- ball retaining sleeve

1шт.

8

A27353

SLEEVE

SLEEVE - ball retaining

1шт.

9

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

- sleeve

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING - quick disconnect, male, service kit parts listed below, Includes: Ref. #10 - 15

2шт.

10

A9634

SLEEVE

- piston, male coupling

1шт.

11

A27351

SPRING

- piston, male coupling

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston sleeve, male coupling

1шт.

13

A27508

PISTON

- coupling, male

1шт.

14

A33964

SEAL

- piston, male coupling

1шт.

15

A27356

PIPE FITTING

BODY - male coupling

1шт.

A40459

KIT

- service, A28541 and A28542 couplings, for hydraulic, Includes: Ref. #16 - 23

1шт.

16

A33964

SEAL

- piston, service kit for hydraulic couplings

2шт.

17

A27508

PISTON

- coupling, service kit for hydraulic

1шт.

18

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston sleeve, service kit for hydraulic couplings

1шт.

19

A27351

SPRING

- piston, service kit for hydraulic couplings

1шт.

20

A9631ASY

SPARE PART

- piston, service kit for hydraulic couplings

1шт.

21

A34848

O-RING

- body, service kit for hydraulic couplings

1шт.

22

A26215

PISTON

- coupling, service kit for hydrauclic

1шт.

23

A11324

SPRING

- piston, service kit for hydraulic couplings

1шт.
