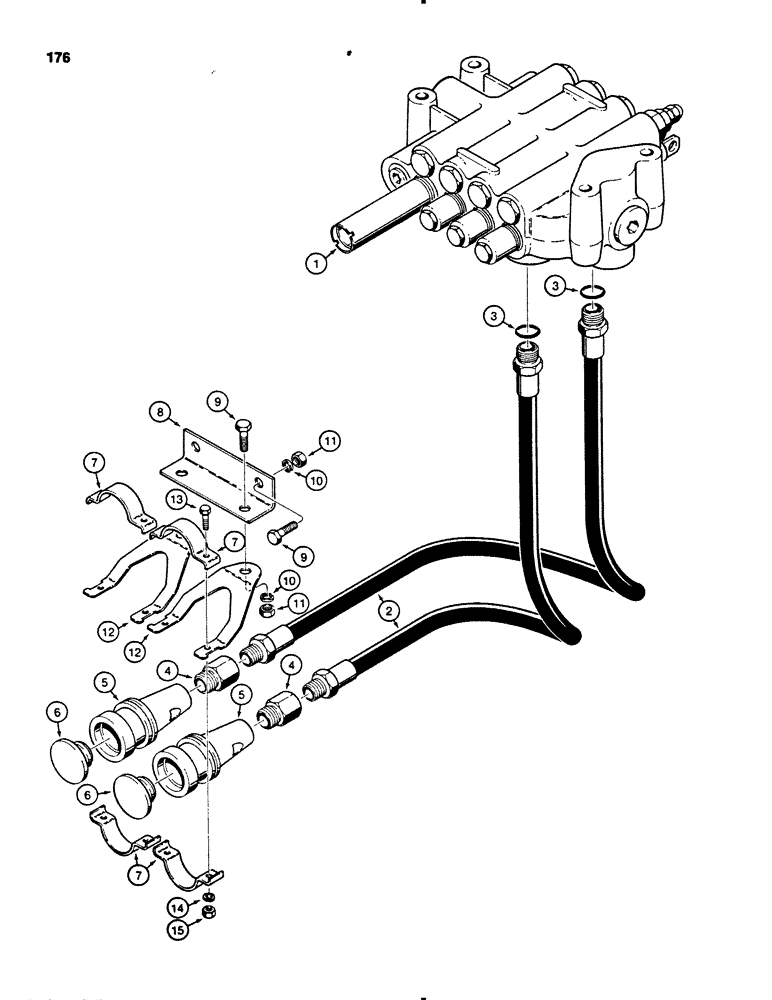

Запчасти Case 450B (176) - PULL BEHIND HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, four spool, see Fig. 206

1шт.

2

R43333

HOSE - 44" (1118 mm) long, Includes: Ref. #3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

4

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- special

2шт.

5

A28542

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female, parts list Fig.178

2шт.

6

A65044

PLUG

- dust

2шт.

7

A27423

CLAMP

- coupling

4шт.

8

R43331

BRACKET - mounting, to seat and tank frame

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

12

A27360

BRACKET

- mounting, coupling

2шт.

13

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

BOLT - hex, no. 8-32 NC x 5/8"

4шт.

14

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

15

129-6

NUT,#8-32

4шт.
