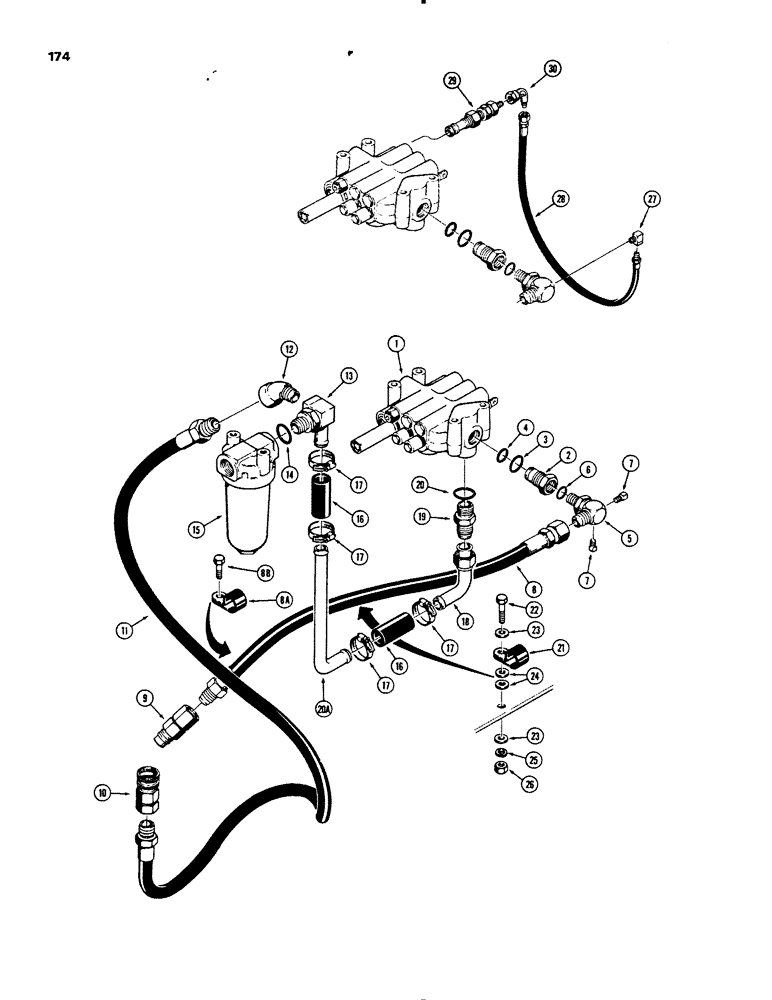

Запчасти Case 450B (174) - BACKHOE CONNECTING HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - see Fig. 202 - 206 for correct valve

1шт.

2

D61251

FITTING

- power beyond, Includes: Ref. #3 & 4

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- large

1шт.

4

L32680

RING

O-RING - small

1шт.

5

D35472

FITTING

ELBOW - special, Includes: Ref. #6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

7

221-12

PLUG,Sq Hd, 1/4"-18

- square head, 1/4" NPT

2шт.

8

D52667

HOSE

- supply, 36" (914 mm) long

1шт.

8a

D34163

CLAMP

- hose

1шт.

8b

13-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

1шт.

9

D52694

QUICK MALE COUPLING

COUPLING - quick disconnect, male

1шт.

10

D52800

COUPLING, QUICK, FEM

COUPLING - quick disconnect, female

1шт.

11

R43873

HOSE

- return" (1829 mm) long

1шт.

12

221-406

FITTING,90 Degree, 1"-11 1/2, NPT

ELBOW - 45 degree

1шт.

13

R41403

FITTING

- three-way, adjustable, Includes: Ref. #14

1шт.

14

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- fitting

1шт.

15

REF

INSTRUCTION

FILTER - see Fig. 154

1шт.

16

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 1" (25 mm) ID x 3-1/2" (89 mm) long

2шт.

17

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.

18

R39538

TUBE - from valve

1шт.

19

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

FITTING - straight, Incl. Ref. #20

1шт.

20

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- fitting

1шт.

20a

R40116

TUBE

-, Serial Range: valve-filter

1шт.

21

51200320

CLAMP

- supply hose

1шт.

22

26-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2" - 13 NC x 2-1/2"

1шт.

23

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

24

R24323

WASHER

- hardened, 1/2"

2шт.

25

92-8

LOCK WASHER,1/2"

1шт.

26

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

27

217-1015

ELBOW,1/4" - 18 Female x 1/4" - 18 Male

90°, 1/4"-18 Female x 1/4"-18 Male, Used on Dozer Models Only

1шт.

28

D37189

HOSE

- 22" (559 mm) long, used on dozer models only

1шт.

29

D38570

VALVE

- main relief, parts list Fig. 214, used on dozer models only

1шт.

30

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

- 90 degree, adjustable, used on dozer models only

1шт.
