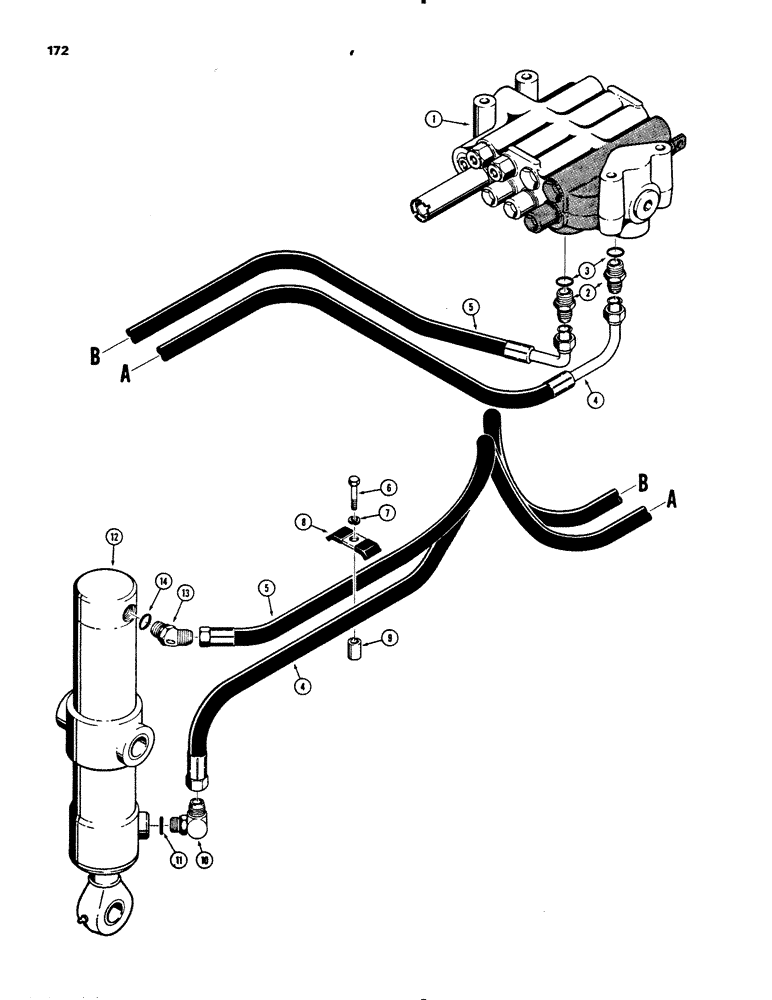

Запчасти Case 450B (172) - RIPPER HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see Fig. 202 - 206 for correct valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, Includes: Ref. #3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

R40063

FLEXIBLE HOSE

HOSE ASSEMBLY - A port

1шт.

5

R40064

FLEXIBLE HOSE

HOSE ASSEMBLY - B port

1шт.

6

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

1шт.

7

92-6

LOCK WASHER,3/8"

1шт.

8

R25782

CLAMP

- hose

1шт.

9

A19177

SPACER

- clamp

1шт.

3/8" Std. Pipe x 13/16" long.

1шт.

10

R20839

FITTING

ELBOW - 90 degree, adjustable, restricted, Included: Ref. #11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

12

REF

INSTRUCTION

CYLINDER - ripper, see Fig. 194

1шт.

13

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.
