Запчасти Case 450B (170) - DOZER ANGLE AND TILT HYDRAULIC CIRCUIT, ON DOZER BLADE (07) - HYDRAULIC SYSTEM

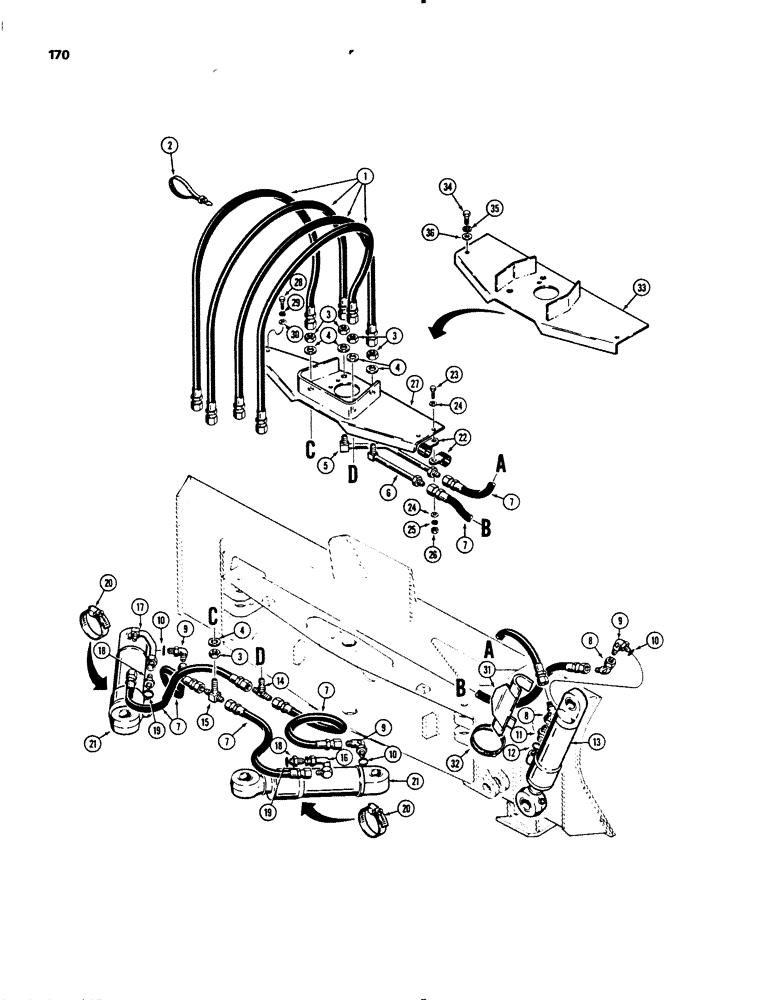

Схема запчастей Case 450B - (170) - DOZER ANGLE AND TILT HYDRAULIC CIRCUIT, ON DOZER BLADE (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

R40023

HOSE,9.53mm ID x 1270mm L, SAE 100R2

- 50" (1270 mm) long

4шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie, hoses

1шт.

3

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

5шт.

4

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

5шт.

5

R41286

PIPE,0.5" OD x 15.4, 3.5" L

TUBE - tilt circuit

1шт.

6

R41288

PIPE,0.5" OD x 9.4" L

TUBE - tilt circuit

1шт.

7

R33545

HOSE

- 21" (533 mm)

6шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 degree, adjustable

2шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Includes: Ref. # 10

3шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, Incl. Ref 12 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

13

REF

INSTRUCTION

CYLINDER - tilt, see Fig. 192

1шт.

14

218-805

TEE,3/4"-16, 37 Degree, Blkhd

FITTING - three-way, bulkhead

1шт.

15

R28969

FITTING

- three-way, bulkhead

1шт.

16

R35180

TUBE

- angle circuit, right hand

1шт.

17

R35179

TUBE

- angle circuit, left hand

1шт.

18

18-5060

FITTING - straight, Includes: Ref. #19

2шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

30

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - cylinder

2шт.

21

REF

INSTRUCTION

CYLINDER - angle, see Fig. 190

2шт.

22

49855

CLAMP

- tube

2шт.

23

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

24

195-21

WASHER,5/16"

- flat, 5/16"

2шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

27

R41291

GUARD

- hoses, service with R43755

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

5шт.

29

92-6

LOCK WASHER,3/8"

5шт.

30

195-25

WASHER,3/8"

- flat, 3/8"

5шт.

31

R41284

GUARD

- tilt cylinder

1шт.

32

214-181

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

CLAMP - tilt cylinder

2шт.

33

R43755

GUARD

- hoses

1шт.

34

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

35

92-8

LOCK WASHER,1/2"

4шт.

36

195-33

WASHER,1/2"

- flat, 1/2"

4шт.

Выбрано товаров: 36
