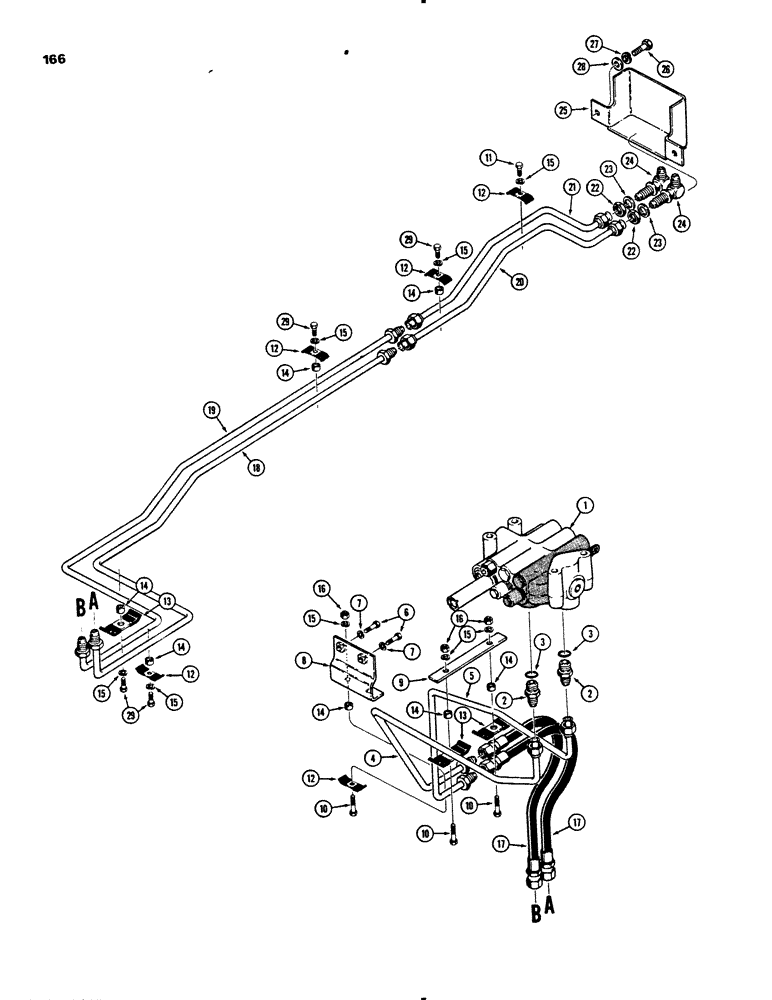

Запчасти Case 450B (166) - DOZER ANGLE HYDRAULIC CIRCUIT, VALVE TO GRILLE (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see Fig. 204 or 206 for correct valve

1шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, straight, Incl. Ref 3 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

R39998

TUBE ASSY.,0.5" OD

TUBE - A port

1шт.

5

R39996

TUBE ASSY.

TUBE - B port

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

2шт.

8

R40031

BRACKET

- mounting, tubes

1шт.

9

R40511

BAR - mounting, tubes

1шт.

10

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8" - 16 NC x 1-1/2"

4шт.

11

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

12

R25528

CLAMP

- tubes

6шт.

13

D40236

CLAMP

- tubes

3шт.

14

D76208

SPACER

- clamp (Replaces F14143)

8шт.

15

92-6

LOCK WASHER,3/8"

9шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8" - 16 NC

4шт.

17

5120027

- 22" (559 mm) long

2шт.

18

R40810

TUBE,0.5" OD

- inner, A port

1шт.

19

R40812

TUBE,0.5" OD

- outer, B port

1шт.

20

R39986

TUBE,0.5" OD

- inner, A port

1шт.

21

R39984

TUBE,0.5" OD

- outer, B port

1шт.

22

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

2шт.

23

D35268

SHIM,1/32" Thk

Washer, Special 1/32" Thk

2шт.

24

R29758

FITTING

ELBOW - 90 degree, bulkhead

2шт.

25

R34008

GUARD

- fittings

1шт.

26

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

27

92-8

LOCK WASHER,1/2"

2шт.

28

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.
