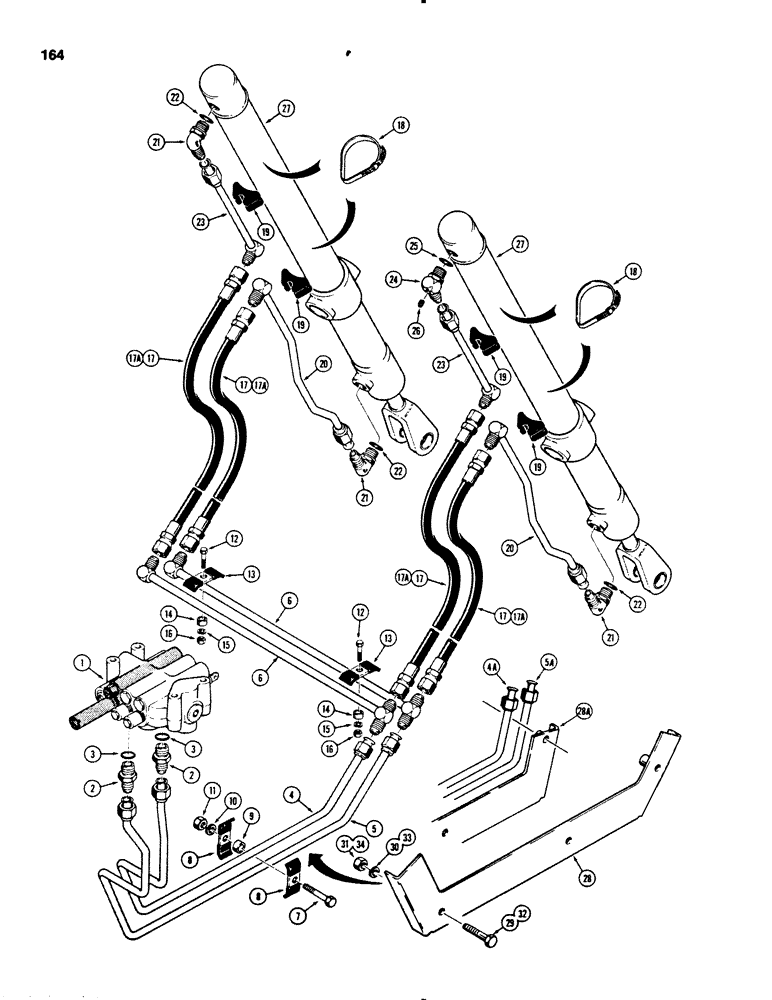

Запчасти Case 450B (164) - DOZER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see Fig. 204 or 206 for correct valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

R40024

TUBE ASSY.

TUBE - upper, Serial Range: -3072276

1шт.

4a

R44477

TUBE ASSY.,0.625" OD x 28.3" L

TUBE - upper, Start Serial: 3072276

1шт.

6

R40026

TUBE ASSY.

TUBE - lower, Serial Range: -3072276

1шт.

5a

R44479

TUBE ASSY.

TUBE - lower, Start Serial: 3072276

1шт.

6

R40037

TUBE,0.625" OD x 26" L

- crossover

2шт.

7

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

8

D31782

FIXING BRACKET

CLAMP - tubes

2шт.

9

R40879

SPACER

- clamp

1шт.

10

92-8

LOCK WASHER,1/2"

1шт.

11

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

1шт.

12

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

13

D40236

CLAMP

- crossover tubes

2шт.

14

D76209

SPACER

- clamp

2шт.

15

92-6

LOCK WASHER,3/8"

2шт.

16

25-106

NUT,3/8"-16, G5

- hex, 3/8"

2шт.

17

19178

HOSE

- 33-1/2" (851 mm) long, Serial Range: -3072276

4шт.

17a

37405

HOSE

- 36" (914 mm) long, Start Serial: 3072276

4шт.

18

214-264

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - cylinder

4шт.

19

D38648

BLOCK

SUPPORT - rubber

4шт.

20

D36138

HOSE ASSY.

TUBE - cylinder, rod end

2шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adjustable, Incl. Ref. #22

3шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

23

D34747

TUBE

- cylinder, closed end

2шт.

24

R19576

FITTING

ELBOW - 90 degree, adjustable, Includes: Ref. #25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

26

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

27

REF

INSTRUCTION

CYLINDER - lift, see Fig. 188 for cylinders

2шт.

28

R43125

GUARD - tubes, if used, Serial Range: -3072276

1шт.

28a

R44483

GUARD

- tubes, if used, Start Serial: 3072276

1шт.

29

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5, Used on main frame w/o tapped block

2шт.

30

92-8

LOCK WASHER,1/2"

2шт.

31

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

2шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on main frame with tapped block Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

2шт.

34

95-6

WASHER,3/8"

- flat, 3/8"

2шт.
