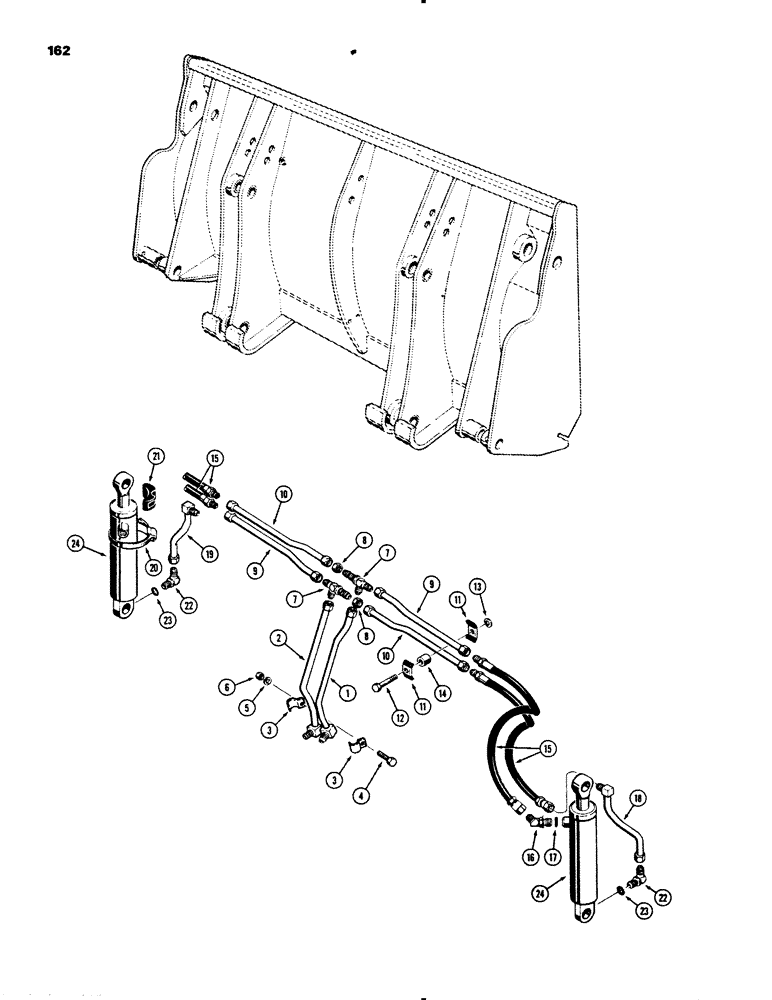

Запчасти Case 450B (162) - CLAM BUCKET HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

D46905

TUBE

- right-hand

1шт.

2

D46903

PIPE

TUBE - left-hand

1шт.

3

38188

CLAMP

- tube

2шт.

4

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

5

92-5

LOCK WASHER,5/16"

1шт.

6

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"-18 NC

1шт.

7

218-1237

TEE,7/8"-14, 37 Degree, Blkhd

- bulkhead

2шт.

8

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

NUT - hex, 1/4"-20 NC

2шт.

9

D46907

TUBE

- tee to cylinder, left-hand lower - right-hand upper

2шт.

10

D46909

TUBE

- tee to cylinder, right-hand lower - left-hand upper

2шт.

11

D40236

CLAMP

- tube

4шт.

12

13-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

- hex head, 3/8"-16 NC x 1-7/8"

2шт.

13

92-6

LOCK WASHER,3/8"

2шт.

14

D76209

SPACER

- clamp

2шт.

15

36547

HOSE

- 19" (483 mm) long

4шт.

16

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, Incl. Ref 17

2шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

18

D46957

TUBE

- closed end of cylinder, right-hand

1шт.

19

D46955

TUBE

- closed end of cylinder, left-hand

1шт.

20

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube

2шт.

21

D38648

BLOCK

SUPPORT - rubber

2шт.

22

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, Incl. Ref. #23

2шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

24

REF

INSTRUCTION

CYLINDER - clam, see Fig. 186 for cylinder

2шт.
