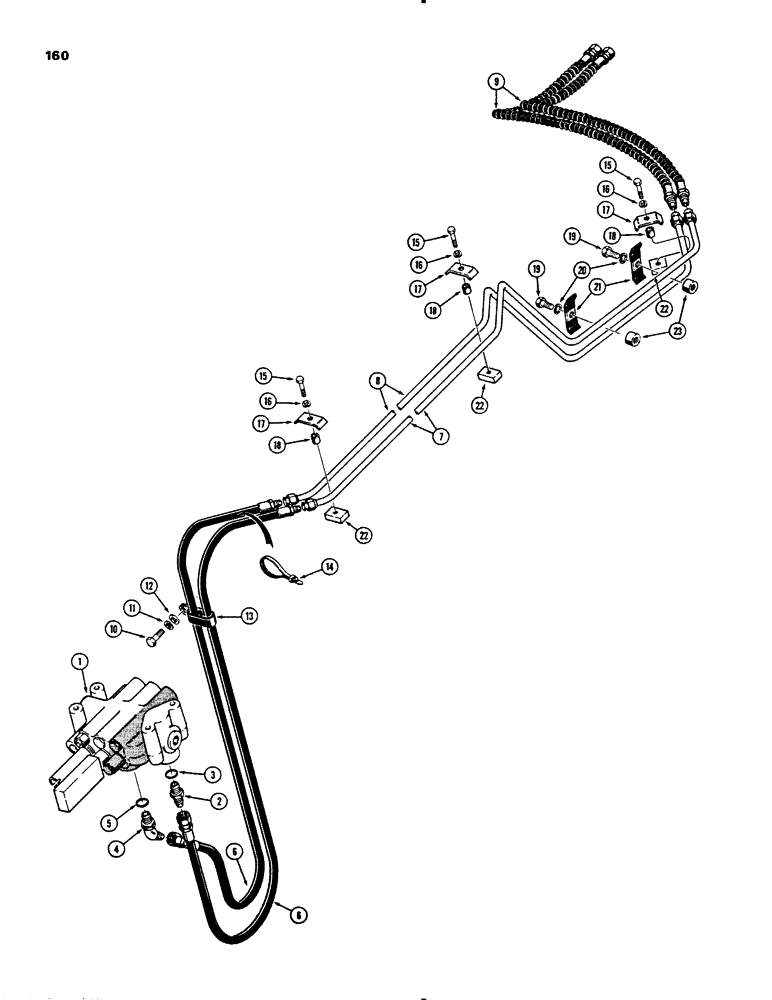

Запчасти Case 450B (160) - LOADER CLAM HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, see Fig. 202 or 206 for correct valve

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, Includes: Ref. #3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

4

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

6

R40068

HOSE

- 60" (1524 mm) long

2шт.

7

R41045

TUBE ASSY.

TUBE - loader arm, A port

1шт.

8

R41047

TUBE

- loader arm, B port

1шт.

9

D35869

HOSE

- 37-1/2" (953 mm) long

2шт.

10

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

13

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- hoses

1шт.

14

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - tie

1шт.

15

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16"-18 NC x 1-1/4"

3шт.

16

92-5

LOCK WASHER,5/16"

3шт.

17

38331

PLATE

CLAMP - tubes

3шт.

18

D33552

BUSHING

SPACER - clamp

3шт.

19

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

2шт.

21

D40236

CLAMP

- tubes

2шт.

22

D24663

BLOCK

- tapped

3шт.

23

D42505

BLOCK

- tapped, round

2шт.
