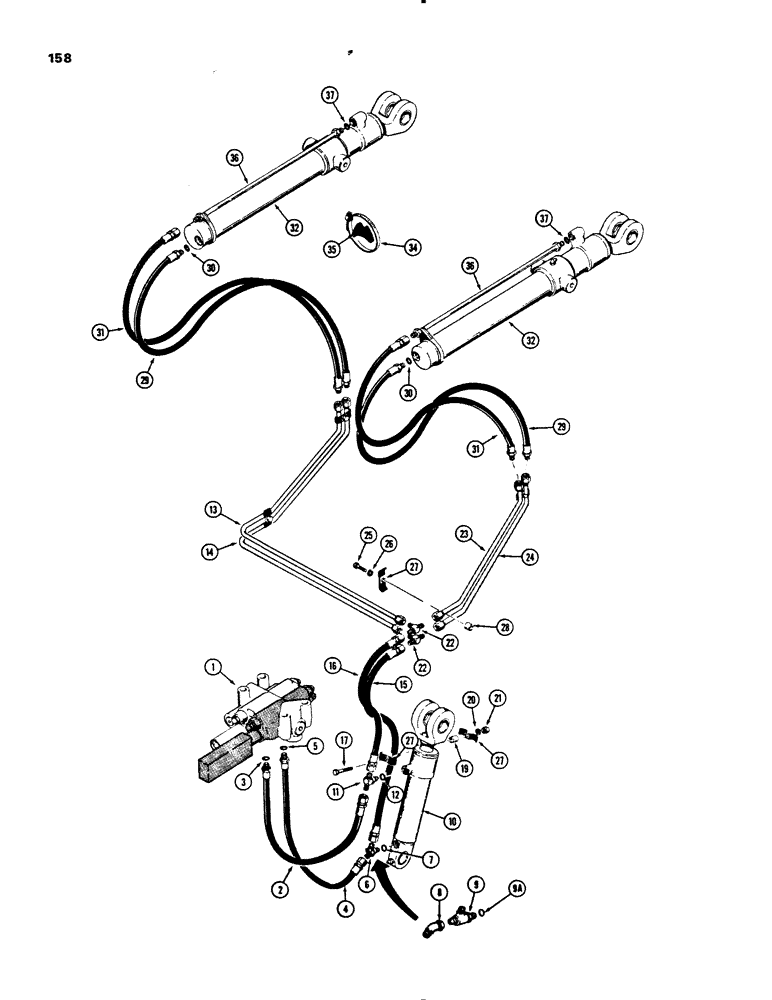

Запчасти Case 450B (158) - LOADER BUCKET TILT AND HYDRA-LEVELING, HYDRAULIC CIRCUITS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, Fig. 202 or 206 for correct valve

1шт.

2

D31368

HOSE

- 29-3/4" (756 mm) long, Includes: Ref. #3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose fitting

1шт.

4

D37184

HOSE

- 24-1/2" (622 mm) long, Includes: Ref. #5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose fitting

1шт.

6

R35513

FITTING - three-way, adjustable, if used, Includes: Ref. #7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

8

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- swivel, 45 degree, if used

1шт.

9

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, if used, Included: Ref. #9A

1шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

10

REF

INSTRUCTION

CYLINDER - hydra-leveling, see Fig. 184 for cylinder

1шт.

11

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, male

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tee

1шт.

13

R39867

TUBE ASSY.,0.625" OD

TUBE - upper, crossover

1шт.

14

R39865

TUBE ASSY.,0.625" OD

TUBE - lower, crossover

1шт.

15

L46723

HOSE

- 42" (1067 mm) long

1шт.

16

D27978

HOSE

- 30-3/4" (781 mm) long

1шт.

17

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

19

D36524

BUSHING

SPACER - clamp

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

1шт.

22

218-595

TEE,7/8"-14, 37 Degree

- male

2шт.

23

R30528

TUBE,0.625" OD x 14.75, 17.58" L

- lift arm, upper

1шт.

24

R30530

TUBE,0.625" OD x 16.3, 19.4" L

- lift arm, lower

1шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16"-18 NC x 1-1/4"

4шт.

26

92-5

LOCK WASHER,5/16"

4шт.

27

D33316

CLAMP

- tube

6шт.

28

D33552

BUSHING

SPACER - clamp

4шт.

29

L13750

HOSE

- 35" (874 mm) long, Includes: Ref. #30

2шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- hose

1шт.

31

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- 40" (1016 mm) long (Replaces 32284)

2шт.

32

REF

INSTRUCTION

CYLINDER - bucket tilt, see Fig. 182 for cylinder

2шт.

34

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - tube to cylinder

2шт.

35

D38648

BLOCK

SUPPORT - rubber

2шт.

36

L13737

TUBE

- cylinder, rod end

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- tube

2шт.
