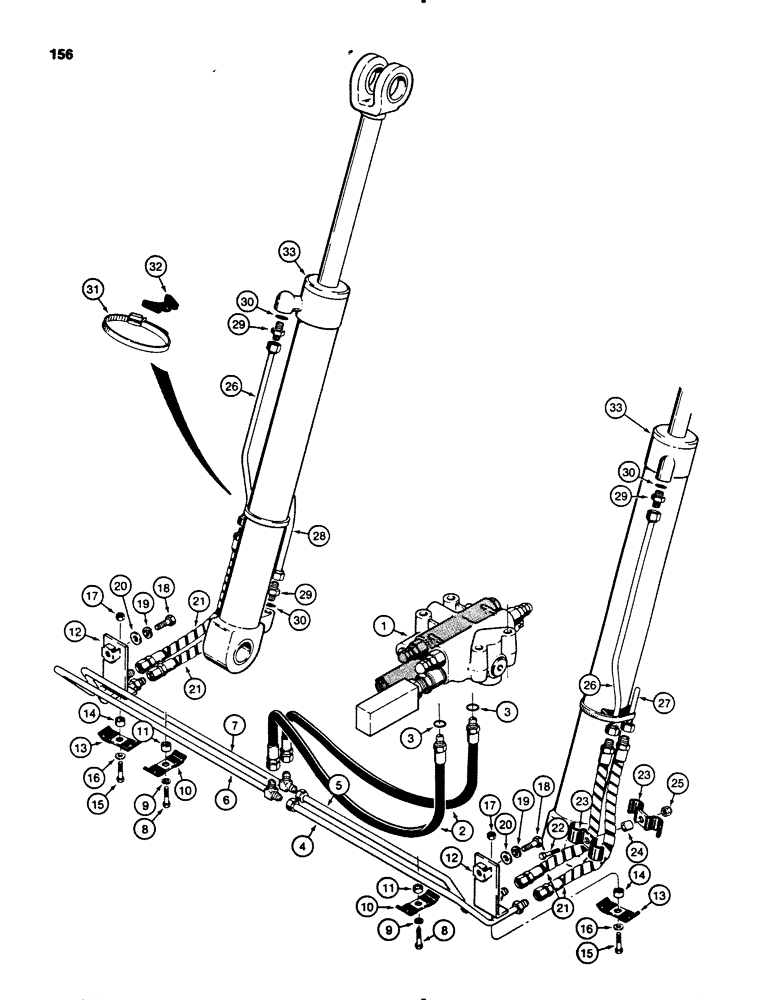

Запчасти Case 450B (156) - LOADER LIFT HYDRAULIC CIRCUIT (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - control, Figs. 202 or 206 for correct valve

1шт.

2

D37184

HOSE

- 24-1/2" (622 mm) long

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

R39947

TUBE

- RH

1шт.

5

R39945

TUBE

- RH

1шт.

6

R39951

TUBE ASSY.

TUBE - LH

1шт.

7

R39949

TUBE ASSY.

TUBE - LH

1шт.

8

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16"-18 NC x 1-1/4"

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

D33316

CLAMP

2шт.

11

D33552

BUSHING

SPACER

2шт.

12

R43334

SUPPORT

- lift tubes, if used

2шт.

13

D33316

CLAMP

- support, tubes

2шт.

14

D33552

BUSHING

SPACER - clamp

2шт.

15

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16"-18 NC x 1-3/4"

2шт.

16

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 5/16

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16"

2шт.

18

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

195-33

WASHER,1/2"

- flat, 1/2"

2шт.

21

R40486

HOSE

- 22" (559 mm) long

4шт.

22

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

23

R15257

CLAMP

4шт.

24

D33551

BUSHING

SPACER

2шт.

25

131-6

LOCK NUT,3/8"-16, GC

NUT - hex, self-lock, /8"-16 NC

2шт.

26

R39873

TUBE ASSY.,0.625" OD x 25.62, 0.52" L

TUBE

2шт.

27

R39871

TUBE,0.625" OD

- right hand

1шт.

28

R39869

TUBE,0.625" OD

- left hand

1шт.

29

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING - straight, Includes: Ref. # 30

4шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- fitting

1шт.

31

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP

2шт.

32

R24703

SUPPORT

CUSHION - rubber

2шт.

33

REF

INSTRUCTION

CYLINDERS - lift, Fig. 180

2шт.
