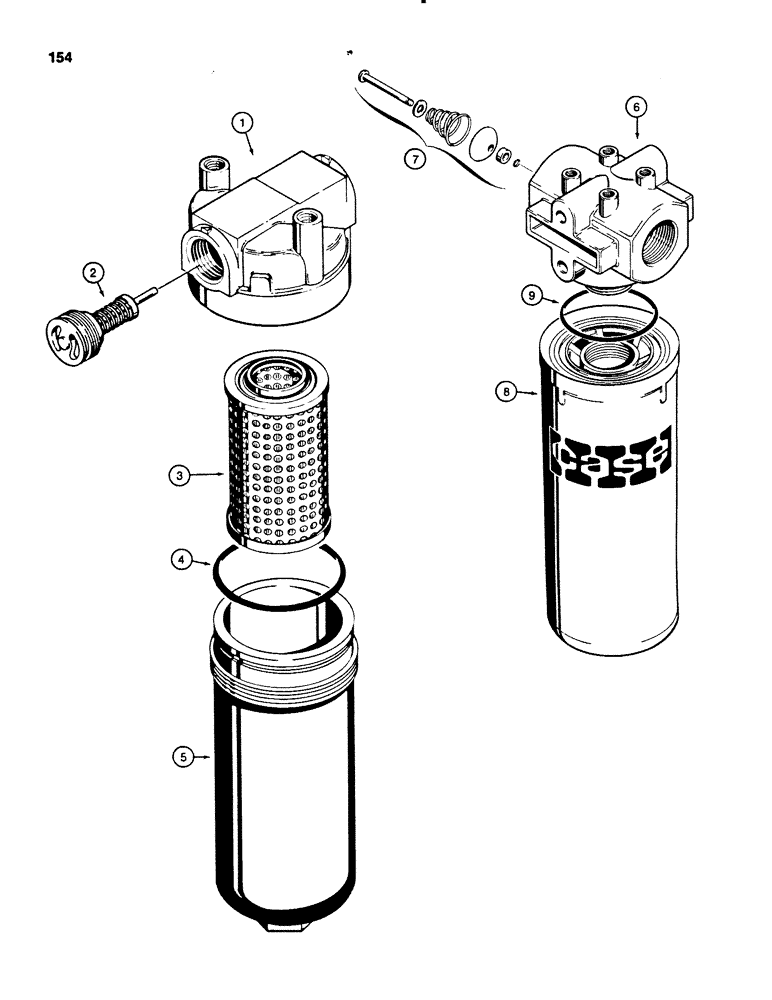

Запчасти Case 450B (154) - HYDRAULIC OIL FILTERS, R39509 HYDRAULIC OIL FILTER (07) - HYDRAULIC SYSTEM

R39509

FILTER

ASSEMBLY - hydraulic oil, Marvel, two bolt mounting, Includes: P/N D88713 & Ref. #s1 - 5

1шт.

D88713

HEAD

ASSEMBLY - filter, Includes: Ref. #1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter

1шт.

2

D88716

BYPASS VALVE - filter

1шт.

D88714

FILTER, ENGINE OIL

KIT - filter, Includes: Ref. 3 & 4

1шт.

3

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

4

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- filter head

1шт.

5

D88715

HOUSING - filter

1шт.

R46126

FILTER

ASSEMBLY - Donaldson, four bolt mounting, hydraulic, Includes: Ref. #s 6 - 9

1шт.

R46126 will sub to R50518 filter assy which has a head that no longer has a sight window.

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD - filter, R46126 hydraulic oil

1шт.

has sight window in head

1шт.

7

NSS

NOT SOLD SEPARAT

BYPASS VALVE - filter, R46126 hydraulic oil

1шт.

N7332

ENGINE OIL FILTER

ELEMENT ASSEMBLY - filter, R46126 hydraulic oil, Includes: Ref. #8 & 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter, R46126 hydraulic oil

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

- element to head, R46126 hydraulic oil filter

1шт.
