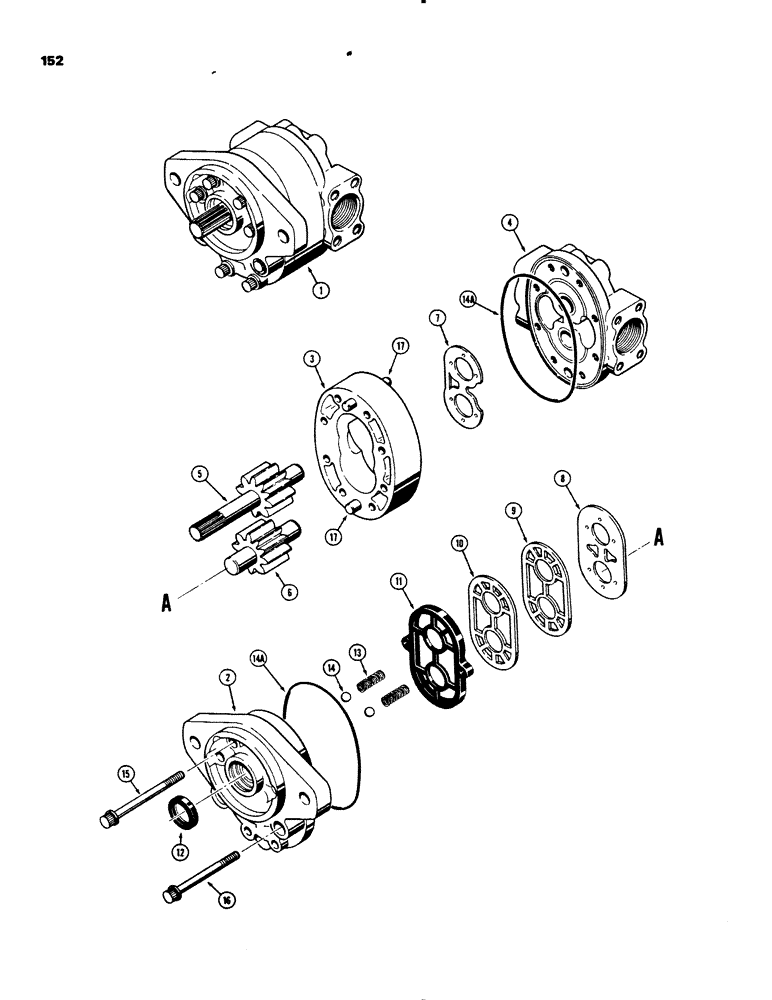

Запчасти Case 450B (152) - D41390 HYDRAULIC PUMP (07) - HYDRAULIC SYSTEM

1

D41390

PUMP

- hydraulic, Cessna no. 24527-1AAC or 24504-LAN, Includes: Ref. #s 1- 17

1шт.

1

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic

1шт.

1

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

1

87644746R

REMAN-HYD PUMP

450B, 455B

1шт.

1

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

2

D48879

COVER

- drive shaft end

1шт.

3

D49371

HOUSING

- center

1шт.

4

D48883

COVER

- port end

1шт.

Gear length 1.30" long Per Burlington Spec. Dept. 3/1/85.

1шт.

D52929

GEAR

SET - drive and idler, Includes: Ref. #s 5 & 6

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - drive

1шт.

6

NSS

NOT SOLD SEPARAT

GEAR AND SHAFT ASSEMBLY - idler

1шт.

D59656

GASKET KIT

KIT - pump rebuild, Includes: Ref. #7 - 14A

1шт.

7

A45358

PLATE

- thrust

1шт.

8

H335331

DIAPHRAGM

- pump

1шт.

9

H260935

GASKET

- protector

1шт.

10

H260927

GASKET

- backup

1шт.

11

H273912

SEAL

- diaphragm (Replaces H335331)

1шт.

12

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

13

D31403

SPRING

- ball retaining

2шт.

14

211-312

BALL,13/32" Dia

- steel, 13/32"

2шт.

14a

H756221

O-RING,4.987" ID x 5.193" OD

- covers

2шт.

13

166-54

12 PT SCREW,Flg, 3/8" - 16 x 3 1/4", Gr 8

SCREW - ferry cap, 3/8"-16 NC x 3-1/4"

4шт.

16

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

SCREW - ferry cap, 3/8"-16 NC x 3-1/2"

4шт.

17

D49373

DOWEL

- body

2шт.
