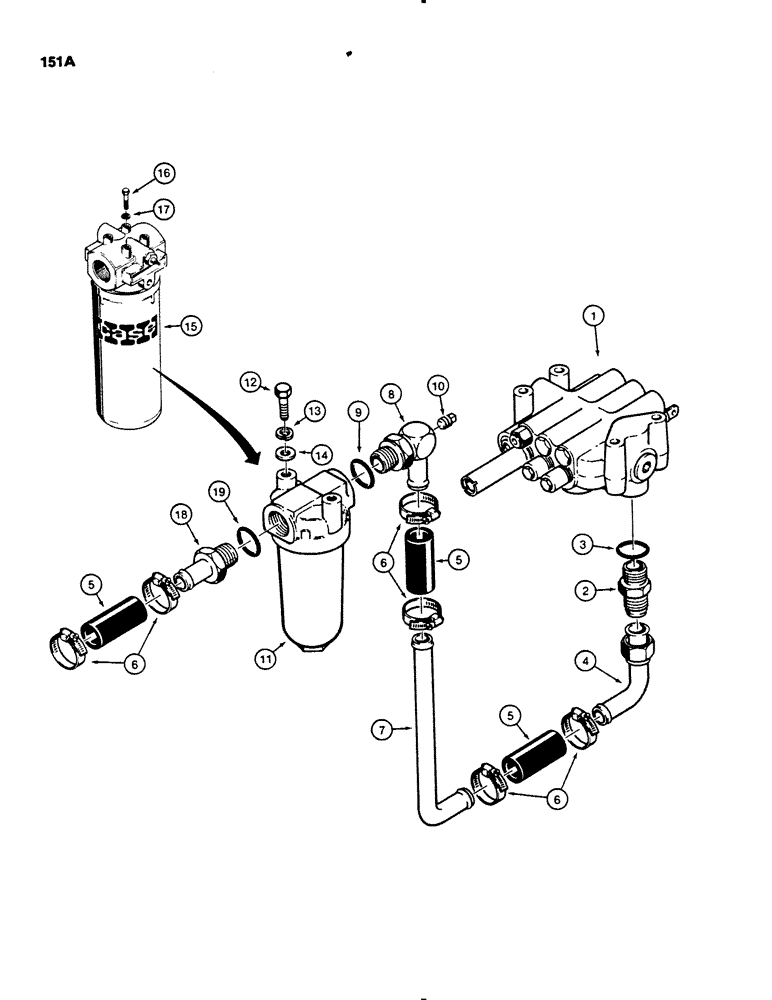

Запчасти Case 450B (151A) - EQUIPMENT HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC RESERVOIR (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CONTROL VALVE - Figs. 202 - 206 for correct valve

1шт.

2

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., straight, at control valve

1шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

4

R39538

TUBE - from control, Serial Range: valve-filter

1шт.

5

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

- 1" (25 mm) ID x 3-1/2" (89 mm) long

3шт.

6

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

6шт.

7

R40116

TUBE

, Serial Range: --filter

1шт.

8

R43332

ELBOW

- 90 degree, adjustable

1шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

10

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

11

R39509

FILTER

- hydraulic oil, Marvel, two bolt mounting, if used, parts list Fig. 154

1шт.

12

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

If used Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

13

92-8

LOCK WASHER,1/2"

if used 1/2"

2шт.

14

95-8

WASHER,1/2"

flat, if used 1/2"

2шт.

15

R46126

FILTER

- hydraulic oil, Donaldson, four bolt mounting, if used, parts list Fig. 154

1шт.

16

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

if used Hex, 3/8"-16 x 5/8", G5, Full Thd

4шт.

17

92-6

LOCK WASHER,3/8"

if used 3/8"

4шт.

18

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

BARB FITTING - hose, Includes Ref. 19

1шт.

19

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- barb fitting

1шт.
