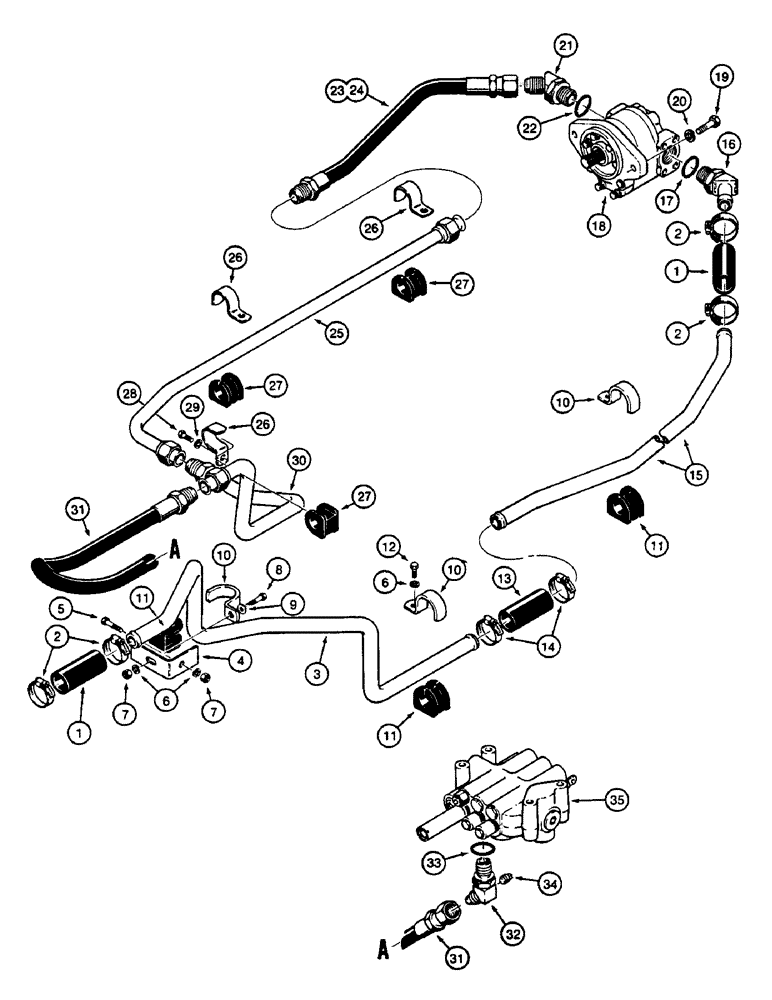

Запчасти Case 450B (150) - EQUIPMENT HYDRAULIC CIRCUIT, HYDRAULIC RESERVOIR TO PUMP AND CONTROL VALVE (07) - HYDRAULIC SYSTEM

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

2шт.

2

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

4шт.

3

R39541

TUBE

- from hydraulic reservoir

1шт.

4

R40979

BRACKET - tube mounting

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex head, 3/8"-16 NC x 1-1/2"

1шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

9

95-6

WASHER,3/8"

- flat, 3/8"

1шт.

10

D68845

MOUNTING CLIP

CLAMP - tube

3шт.

11

D67298

INSULATOR

- rubber

3шт.

12

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

13

18361

HOSE,1.25" ID x 5.00", SAE 100R3

- 1-1/4" (32 mm) ID x 5" (127 mm) long

1шт.

14

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

15

R44542

TUBE

-, Serial Range: reservoir-pump

1шт.

16

217-317

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

(Elbow), Adj., Pump inlet, Incl. Ref. 17 45º, 1 1/4" Hose x 1 5/8"-12 ORB Beaded

1шт.

17

218-5011

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

- elbow

1шт.

18

D41390

PUMP

- hydraulic, parts list Fig. 152

1шт.

18

DR41390

REMAN-HYD PUMP

Remanufactured, Pump, Hydraulic

1шт.

18

DC41390

CORE-HYDRAULIC PUMP

Return Part Number, Pump, Hydraulic

1шт.

18

87644746R

REMAN-HYD PUMP

450B, 455B

1шт.

18

87644746C

CORE-HYDRAULIC PUMP

Return Part Number

1шт.

19

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

- hex head, 3/8"-16 NC x 1-1/2"

2шт.

20

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

2шт.

21

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, pump outlet, Includes: Ref. #22

1шт.

22

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

23

D35040

HOSE

- 15" (381 mm) long, used on all models

1шт.

24

D55295

HOSE ASSY.

HOSE - 17" (432 mm) long, used on models with turbocharged engine, no longer used, order D35040 hose (item 23)

1шт.

25

R40959

TUBE ASSY.

TUBE - pump to control valve

1шт.

26

D68846

CLAMP

- tube

3шт.

27

D67297

BLOCK

INSULATOR - rubber

3шт.

28

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

R40961

TUBE ASSY.,1" OD

TUBE - to control valve

1шт.

31

R39501

HOSE ASSY.

HOSE - to control valve, 24" (610 mm) long

1шт.

32

R43327

ELBOW - 45 degree, with threaded hole to check plug, Includes: Ref. # 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

34

221-11

PLUG,Sq Hd, 1/8"-27

- square head, 1/8" NPT

1шт.

34

REF

INSTRUCTION

CONTROL VALVE - see figures 202 thru 206 for correct control valve

1шт.
