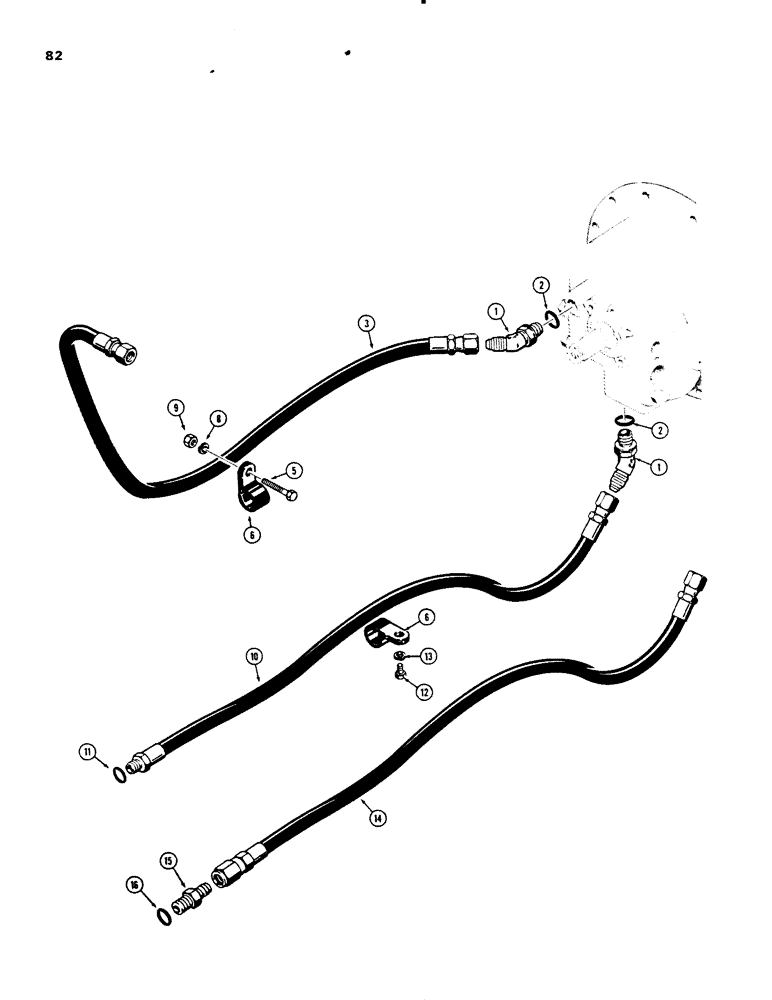

Запчасти Case 450B (082) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION (07) - HYDRAULIC SYSTEM

1

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adjustable, Incl. Ref 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- elbow

1шт.

3

R43292

HOSE ASSY.

HOSE - 46" (1168 mm) long

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

6

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

2шт.

8

92-6

LOCK WASHER,3/8"

1шт.

9

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

10

D38702

HOSE

- 33" (838 mm) long, no longer used, service with H171009 hose and 218-5066 connector, Includes: Ref. #11

1шт.

12

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex head, 3/8"-16 NC x 1/2"

1шт.

13

92-5

LOCK WASHER,5/16"

WASHER - lock, 3/8"

1шт.

14

H171009

HYDRAULIC HOSE,7.62 mm ID x 838.00 mm, SAE 100R1

7.62 mm ID x 838.00 mm, SAE 100R1

1шт.

15

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., , straight, Incl. Ref. #16 7/8"-14, 37º x 3/4"-16, O-Ring

1шт.

11

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, hose

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, connector

1шт.
