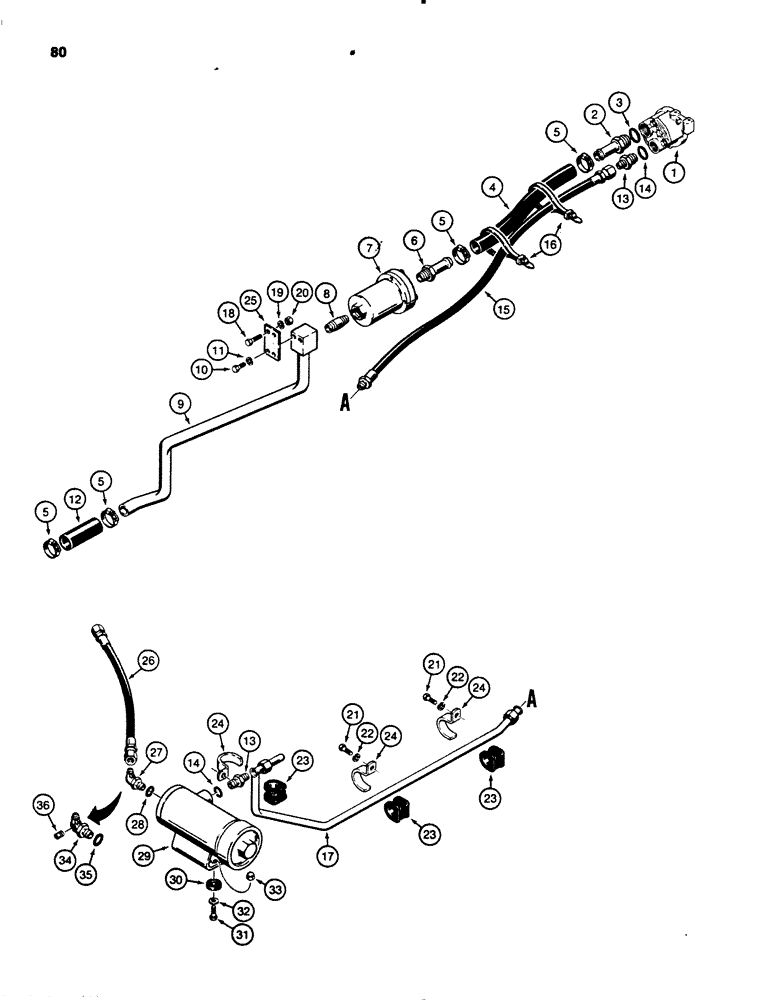

Запчасти Case 450B (080) - CRAWLER HYDRAULIC CIRCUIT, PUMP TO TORQUE CONVERTER AND FILTER (07) - HYDRAULIC SYSTEM

1

D35016

PUMP

- parts list Fig. 92

1шт.

2

217-184

FITTING,1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Use with D33365 hose only 1 1/4" Hose X 1 5/16"-12 ORB, Beaded

1шт.

2

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

BARB FITTING - hose, 1" straight thread, use with D31469 hose only, Includes Ref. 3

1шт.

3

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 217-184 and 217-179 barb fittings

1шт.

4

D33365

HOSE

- 1-1/4" (32 mm) ID x 18-1/2" (470 mm) long, no longer used, order D31469 hose, 217-179 barb fitting, and 217-156 barb fitting

1шт.

4

D31469

HOSE

- 1" (25 mm) ID x 19" (483 mm) long

1шт.

5

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

4шт.

6

217-161

FITTING,1-1/4" Hose Barb x 1" Male NPTF

BARB FITTING - hose, 1-1/4" barb end ID, use with D33365 hose only

1шт.

6

217-156

FITTING,1" Hose Barb x 1" Male NPTF

BARB FITTING - hose, 1" barb end ID, use with D31469 hose only

1шт.

7

D35144

FILTER

FILTER - parts list Fig. 86

1шт.

8

D35144

FILTER

FILTER - parts list Fig. 86

1шт.

8

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - 1" NPT x 2"

1шт.

9

R42449

TUBE,1.25" OD

- from filter

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

18361

HOSE,1.25" ID x 5.00", SAE 100R3

- 1-1/4" (32 mm) ID x 5" (127 mm) long

1шт.

13

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, Includes: Ref. #14

2шт.

14

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- connector

1шт.

15

R40980

HOSE

- 24" (610 mm) long

1шт.

16

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - hoses

2шт.

17

R39504

TUBE -, Serial Range: pump-filter

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

19

92-6

LOCK WASHER,3/8"

2шт.

20

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

2шт.

21

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

22

92-6

LOCK WASHER,3/8"

2шт.

23

D67296

GROMMET

SPACER - clamp

3шт.

24

R40441

CLAMP

- tube

3шт.

25

R42826

PLATE - mounting tube

1шт.

26

R40571

HOSE

- 14" (356 mm) long, to torque converter

1шт.

27

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Ref 28 45º, 7/8"-14 x 1 1/16"-12, O-Ring

1шт.

29

G102704

FILTER, ENGINE OIL

FILTER - parts list Fig. 86

1шт.

30

D40406

MOUNTING PARTS

INSULATOR - rubber

4шт.

31

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

4шт.

32

95-6

WASHER,3/8"

- flat, 3/8"

4шт.

33

129-520

NUT,Crown, 3/8"-16

DOME NUT - hex, 3/8"

4шт.

34

R43328

ELBOW - 45 degree, if used, accepts Ref. #36, Includes: Ref. #35

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- elbow

1шт.

36

221-849

PLUG,Hex Soc, 1/8"-27

- elbow

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, elbow

1шт.
