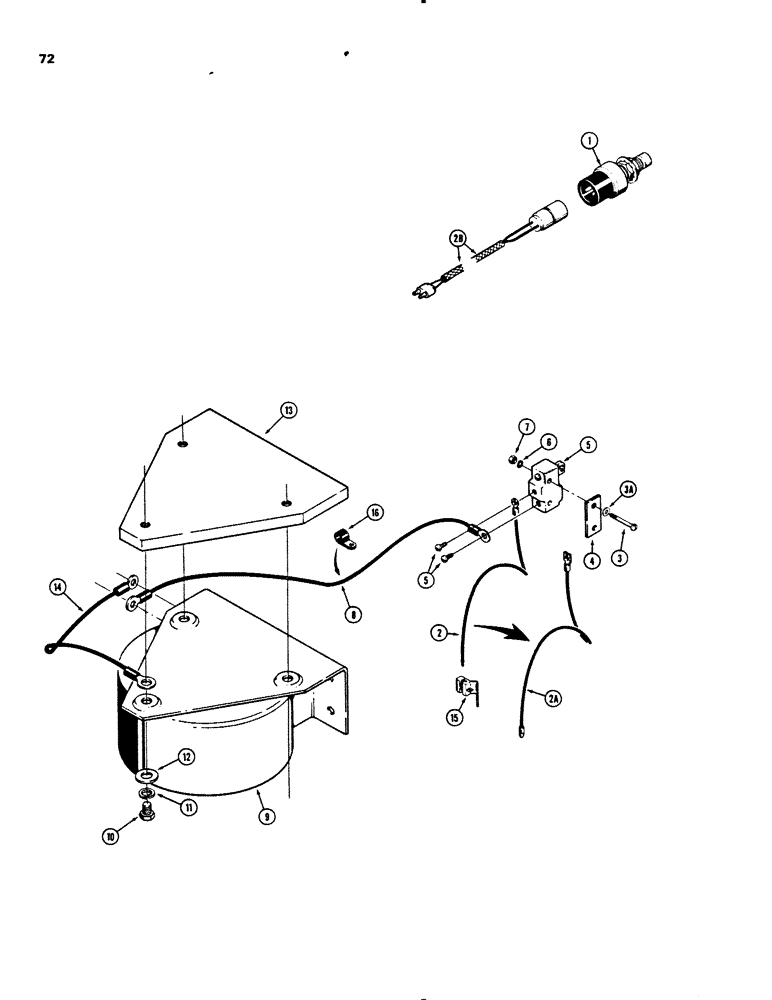

Запчасти Case 450B (072) - BACKUP ALARM (06) - ELECTRICAL SYSTEMS

1

R40432

SWITCH

- push button starter

1шт.

2

R42394

WIRE - backup alarm switch, 6" (152 mm) long, main wiring harness using item 15 connector, if used

1шт.

2a

R43836

ELECTRICAL WIRE

WIRE - backup alarm switch, 15" (381 mm) long, with male bullet connector to main wiring harness (used with main wiring harness with female bullet receptacle only, see figure 68), if used

1шт.

2b

R40995

ELECTRICAL WIRE

WIRE - push button switch to main wiring harness

1шт.

3

169-143

SCREW,Sl Fil Hd, #6 - 32 x 1 1/2"

MACHINE SCREW - fillister head slotted, No. 6-32 NC x 1-1/2", plated

2шт.

3a

195-507

WASHER,#6

- flat, No. 6, plated

2шт.

4

R31181

PLATE

SPACER - plate

1шт.

5

L54683

SWITCH

- backup alarm

1шт.

6

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

2шт.

7

129-15

NUT,#6-32

2шт.

8

R39289

ELECTRICAL WIRE

WIRE - backup alarm switch to backup alarm

1шт.

9

S223033

BUZZER

ALARM - backup

1шт.

10

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

11

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

12

195-18

WASHER,1/4"

- flat, 1/4"

3шт.

13

R40410

PLATE

- mounting, backup alarm

1шт.

14

R41006

ELECTRICAL WIRE

WIRE - ground, backup alarm

1шт.

15

R41086

CONNECTOR, ELEC

CONNECTOR - electrical, use with R42394 wire only

1шт.

16

51200330

CLAMP

- backup alarm wire

2шт.
