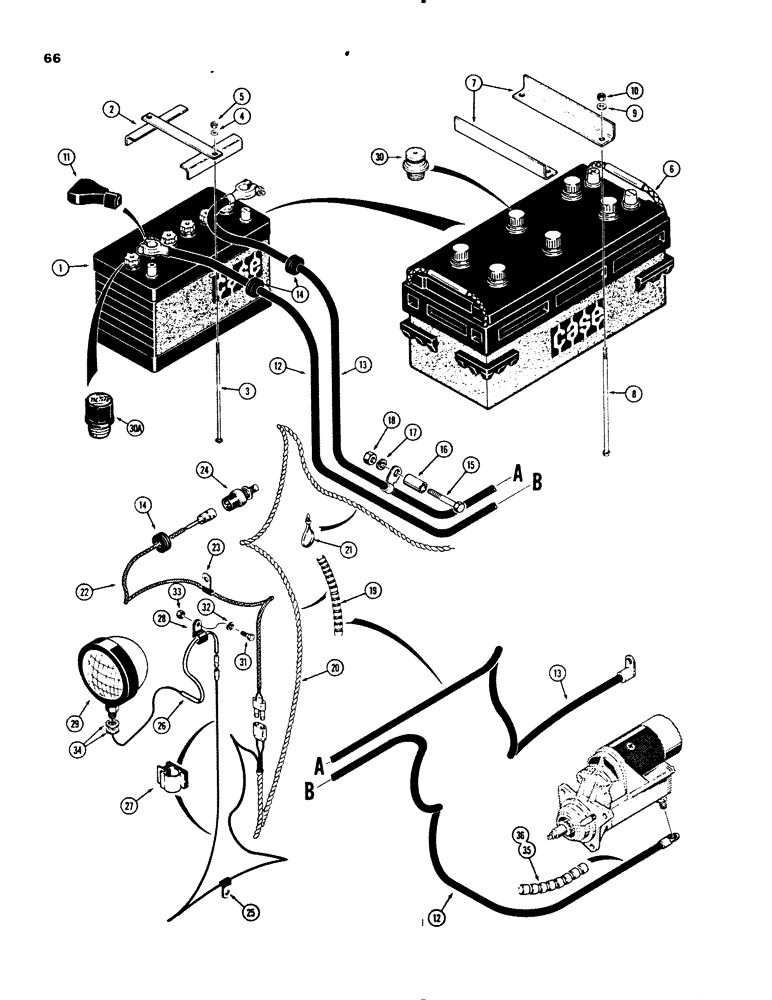

Запчасти Case 450B (066) - REAR ELECTRICAL WIRING, BATTERY TO STARTER AND REAR LAMPS (06) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- standard

1шт.

Service batteries have caps which are to be replaced with nonspill caps from old battery or order (6) R30819 caps for D44178 battery or (6) A60553 caps for A38411 battery.

1шт.

2

R26374

BATTERY BOX

BRACKET - battery retaining

1шт.

3

17-4152

BOLT,Sq Hd, 1/4"-20 x 9 1/2", G2

- square head, 1/4"-20 NC x 9-1/2"

2шт.

4

195-18

WASHER,1/4"

- flat, 1/4"

4шт.

5

131-2

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" - 20 NC

2шт.

6

D44178

DRY BATTERY

- heavy duty

1шт.

Service batteries have caps which are to be replaced with nonspill caps from old battery or order (6) R30819 caps for D44178 battery or (6) A60553 caps for A38411 battery.

1шт.

7

R39653

RETAINER

BRACKET - battery retaining

2шт.

8

13-5160

BOLT,Hex, 5/16" - 18 x 10", Gr 5

- hex head, 5/16"-18 NC x 10"

4шт.

9

195-21

WASHER,5/16"

- flat, 5/16"

4шт.

10

131-4

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/8"-18 NC

4шт.

11

A27072

COVER

GAURD - rubber

1шт.

12

R40815

CABLE

- positive

1шт.

13

R40816

CABLE

- negative, includes clamp

1шт.

14

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

3шт.

15

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2"-13 NC x 2-1/4"

1шт.

16

A27282

SPACER - clamp

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

25-108

NUT,1/2"-13, G5

- hex, 1/2"-13 NC

1шт.

19

R43456

PACKAGE

CONDUIT - negative battery cable and harness, 57" (1448 mm) long

1-2шт.

20

REF

INSTRUCTION

HARNESS - electric, Fig. 68

1шт.

21

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE STRAP - battery cables and harness

1шт.

22

R40995

ELECTRICAL WIRE

WIRE - from push button switch

1шт.

23

49832

CLAMP

- wire

1шт.

24

R40432

SWITCH

- push button, starter

1шт.

25

51200330

CLAMP

- harness wire

2-4шт.

26

D34933

LOOM

GAURD - rubber, lamp wire

1шт.

27

F43611

CLIP

CLAMP - if used

2шт.

28

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- if used

1-2шт.

29

D34934

LAMP

- rear, parts list Fig. 70

1шт.

30

R30819

CYLINDER END CAP

CAP - battery, nonspill, D44178 battery

6шт.

30a

A60553

CAP

- battery, nonspill, A38411 battery

6шт.

31

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

33

25-106

NUT,3/8"-16, G5

- hex, 3/8"-16 NC

1шт.

34

D31328

WASHER

- special

2шт.

35

R40778

CONDUIT

- positive battery cable, 22" (559 mm) long, no longer used, order R44806 conduit

1шт.

36

R44806

LOOM

CONDUIT - positive battery cable, 88-1/2" (2248 mm) long, covers entire length of cable

1шт.
