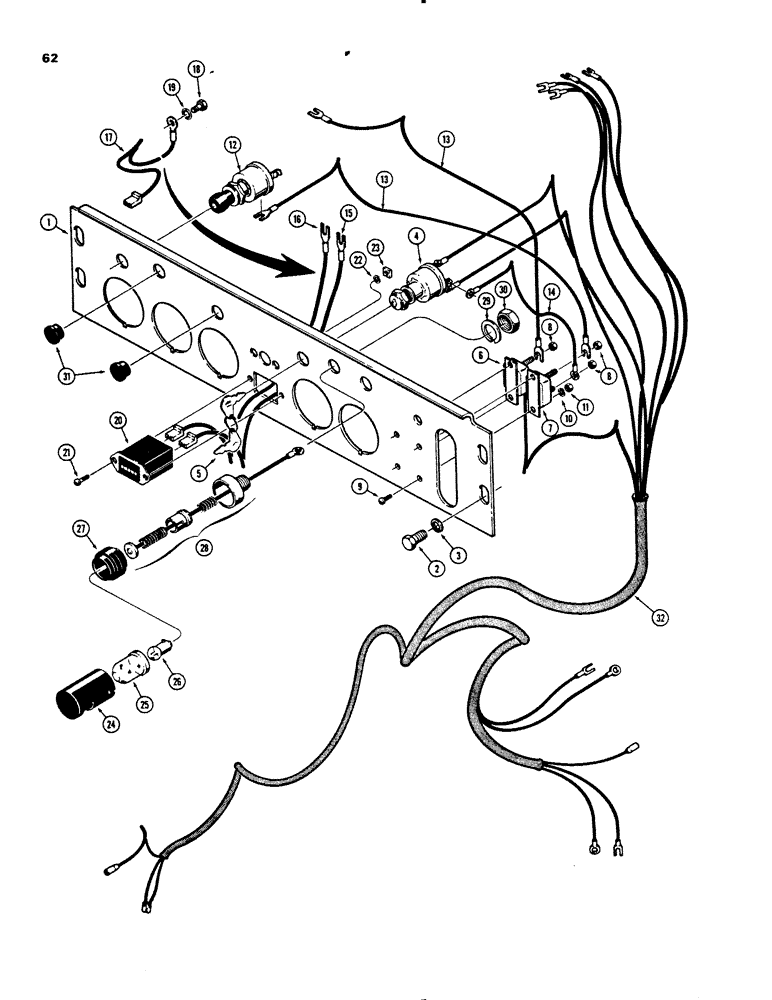

Запчасти Case 450B (062) - INSTRUMENT PANEL, WIRING, AND LAMP (06) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

INSTRUMENT PANEL - without decals, no longer avaliable, order R47638 or R48514 instrument panel as needed, see below

1шт.

1

R47638

PANEL, INSTRUMENTS

INSTRUMENT PANEL - includes one-piece black decal, for decal Fig. 272, if used

1шт.

1

R48514

PANEL ASSY.

INSTRUMENT PANEL - includes one-piece brown decal, for decal Fig. 272, if used

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

3

195-525

WASHER,3/8", SAE

- flat, 3/8", plated

4шт.

4

D35092

SWITCH

KEY SWITCH - ignition, includes two keys, Includes: # 5

1шт.

5

NSS

NOT SOLD SEPARAT

KEY - switch, short, set of two, not shown, comes with Ref. 4 key switch, service with R30074 key set

1шт.

5

R30074

SET

KEY - switch, long, set of two, service replacement

1шт.

6

R45475

BREAKER

CIRCUIT BREAKER - 40 amp

1шт.

7

L104329

BREAKER

CIRCUIT BREAKER - 15 amp, Includes: Ref. #s 8

1шт.

8

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10-32 NF, Ref. 6 and 7 circuit breakers

2шт.

9

182-84

SCREW,Slotted Pan Hd, #8-32 x 3/8"

MACHINE SCREW - pan head slotted, No. 8-32 NC x 3/8", plated

4шт.

10

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

4шт.

11

129-16

NUT,#8-32

4шт.

12

D35065

SWITCH

- lamps

1шт.

13

R40956

WIRE - 40 amp circuit breaker to ammeter and 15 amp circuit breaker to lamp switch

2шт.

14

L11780

ELECTRICAL WIRE

WIRE - 15 amp circuit breaker to key switch

1шт.

15

R38765

ELECTRICAL WIRE

WIRE - hourmeter to pressure switch, 40" (116 mm) long, service replacement for a 9" (229 mm) long wire used in production

1шт.

16

R38765

ELECTRICAL WIRE

WIRE - hourmeter ground, 40" (1016 mm) long service replacement, to engine temperature gauge, if used (see Ref. 17-19)

1шт.

17

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, to upright frame behind instrument panel, 14" (356 mm) long, if used

1шт.

18

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

If used Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

19

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , If used Int Tooth, 1/4"

4шт.

20

L49907

GAUGE

HOURMETER - engine

1шт.

21

169-44

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- fillister head, slotted, No. 5-40 NC x 1/2"

2шт.

22

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

23

129-44

SQUARE NUT,Sq, #5-40

2шт.

D33212

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, Includes: Ref. #s 24 - 28

2шт.

24

R22237

COVER

- lamp

1шт.

25

R22232

SIGHTGLASS

LENS - lamp

1шт.

26

71421

BULB,R5W, 12V, 5W

- No. 67

1шт.

27

NSS

NOT SOLD SEPARAT

INSULATOR - rubber

1шт.

28

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

29

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

30

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, 5/8"-18 NC, plated

2шт.

31

353-407

PLUG,Dome, .687" hole, Nylon

- button, if used

1шт.

32

REF

INSTRUCTION

HARNESS - main wiring, Fig. 68

1шт.
