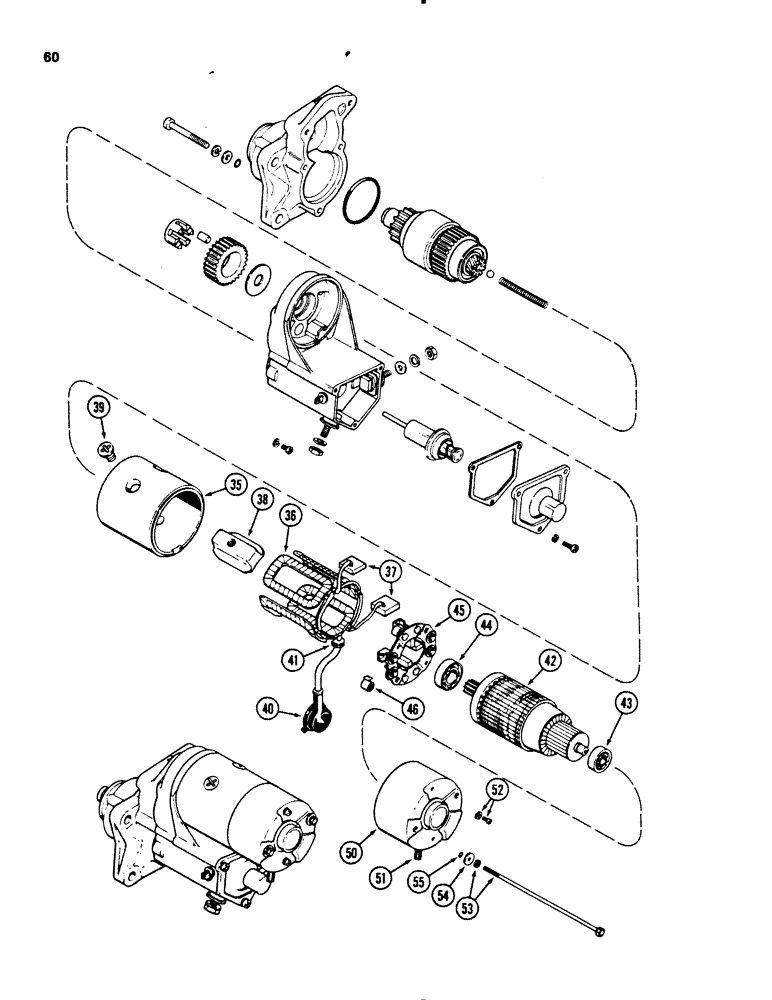

Запчасти Case 450B (060) - STARTER (06) - ELECTRICAL SYSTEMS

R39341

STARTING MOTOR

STARTER ASSEMBLY - (Continued from Fig. 58)

1шт.

104451A2GV

STARTER MOTOR

Value, 12V, 2.5KW

1шт.

104451A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

104451A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

A47240

HOUSING

HOUSING ASSEMBLY - with coil and brushes

1шт.

35

NSS

NOT SOLD SEPARAT

HOUSING - field

1шт.

36

NSS

NOT SOLD SEPARAT

COIL - field

1шт.

37

NSS

NOT SOLD SEPARAT

BRUSHES

2шт.

38

NSS

NOT SOLD SEPARAT

SHOE - pole

4шт.

39

NSS

NOT SOLD SEPARAT

SCREW - pole shoes

4шт.

40

NSS

NOT SOLD SEPARAT

BOOT - magnetic switch terminal

1шт.

41

A47241

PLATE

PLATE - lock

1шт.

42

A47242

ARMATURE

ARMATURE ASSEMBLY - Includes: Ref. #s 43 & 44

1шт.

43

S85601

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING - commutator end, 3/8 x 1-13/16 x 3/8 " (10 x 46 x 10 mm)

1шт.

44

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

BEARING - drive end, 11/16 x 1-3/8 x 3/8 "(17 x 35 x 10 mm)

1шт.

45

A47239

HOLDER

HOLDER ASSEMBLY - brush (includes 2 brushes), Includes: Ref. #s 46

1шт.

46

A47249

SPRING

SPRING - brush tension

4шт.

50

A47237

FRAME

FRAME - commutator end

1шт.

51

A47238

COVER

COVER - end frame

1шт.

52

A47244

CAPTIVE WASHER SCREW,Cross Pan Hd, M5 x 0.8 x 8mm

SCREW ASSEMBLY - brush holder to cover

2шт.

A47243

BOLT

BOLT ASSEMBLY - commutator end cover to drive and housing, Includes: Ref. #s 53 - 55

3шт.

53

NSS

NOT SOLD SEPARAT

BOLT - with lock washer

1шт.

54

195-516

WASHER,#12

WASHER - 1/4 x 9/16 x 1/16 " (6 x 14 x 2 mm)

1шт.

55

A47130

O-RING

O-RING - bolt seal, 3/16 x 5/16 x 1/16 inch (5 x 8 x 29 mm)

1шт.
