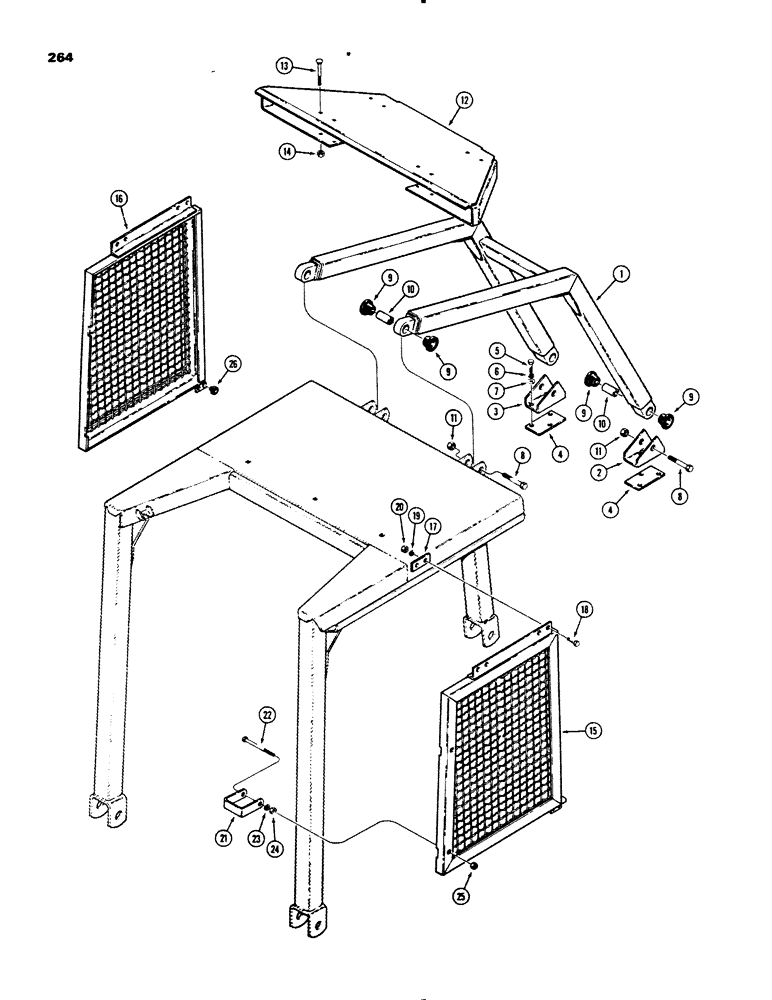

Запчасти Case 450B (264) - BRUSH SWEEPS, SIDE SCREENS AND CANOPY EXTENSION (05) - UPPERSTRUCTURE CHASSIS

1

R40743

GUARD

- brush sweep

1шт.

2

R40732

BRACKET

- right-hand, brush sweep mounting

1шт.

3

R40733

BRACKET

- left-hand, brush sweep mounting

1шт.

4

R4101

PLATE - mounting, bracket

2шт.

5

113-2400

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

6шт.

6

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

7

195-533

WASHER,1/2", SAE

- flat, 1/2", plated

6шт.

8

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

4шт.

9

R40721

GROMMET

INSULATOR - rubber

8шт.

10

R40954

BUSHING

- brush guard

4шт.

11

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4" -10 NC, plated

4шт.

12

R40992

DEFLECTOR

EXTENSION - ROPS canopy

1шт.

13

111-538

CARRIAGE BOLT,Short NK, 1/2"-13 x 4", G2

BOLT, CARRIAGE, Short NK, 1/2"-13 x 4", G2

8шт.

14

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

NUT - hex, self-locking, 1/2" -13 NC, plated

8шт.

15

R40806

SCREEN

- side, right-hand

1шт.

16

R40807

SCREEN

- side, left-hand

1шт.

17

F44446

NOZZLE HOLDER

CLAMP - side screen, top

4шт.

18

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

CARRIAGE BOLT - 1/2" -13 NC x 1-1/4", plated

8шт.

19

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

20

129-105

NUT,Hex, 1/2" - 13, Gr 5

8шт.

21

F43788

CLAMP

- side screen, bottom

4шт.

22

113-2434

BOLT,Hex, 1/2" - 13 x 6", Gr 5

4шт.

23

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

24

129-105

NUT,Hex, 1/2" - 13, Gr 5

4шт.

25

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

4шт.

26

R38089

CUSHION ASSY.

INSULATOR - rubber

4шт.
