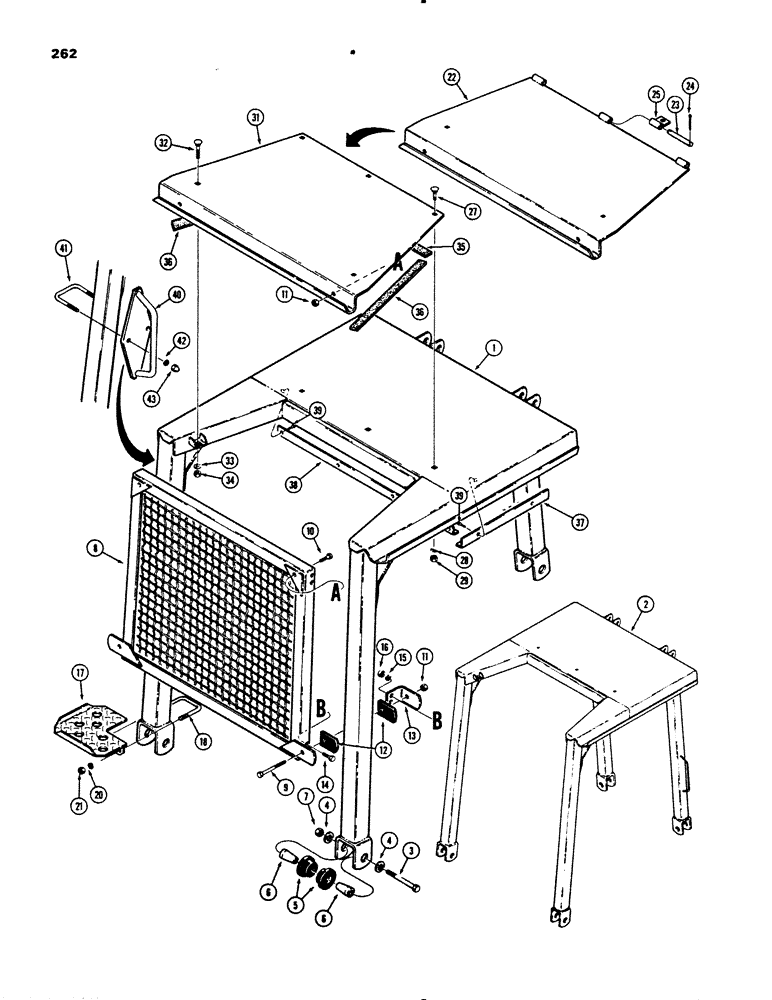

Запчасти Case 450B (262) - ROLL OVER PROTECTIVE STRUCTURE AND REAR SCREEN (05) - UPPERSTRUCTURE CHASSIS

1

R40654

ROPS - loader, machinery item - see Fig. 2 for ordering

1шт.

ROPS - 9/18/90 Whole Goods will no longer provide these 2 ROPS

1шт.

R40654 can be replaced by R48261 455C Rops

1шт.

2

R40699

ROPS - dozer, machinery item - see Fig. 2 for ordering

1шт.

ROPS - 9/18/90 Whole Goods will no longer provide these 2 ROPS

1шт.

R40699 can be replaced by R57035 450C Rops

1шт.

These replacemnts will only work on units that (DO NOT) have hackhoe on them. Hardware is the same. The replacement numbers are machinery items too.

1шт.

3

113-737

BOLT,Hex, 3/4" - 10 x 6", Gr 5

4шт.

4

D31328

WASHER

- hardened

8шт.

5

F44212

MOUNTING PARTS

CUSHION - rubber

8шт.

6

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- insert

8шт.

7

131-1131

LOCK NUT,3/4"-10, GA

NUT - hex, self lock, 3/4" -10 NC, plated

4шт.

8

R39579

SCREEN - rear

1шт.

9

113-429

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

10

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

11

131-70

NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" -13 NC, plated

4шт.

12

R40074

CUSHION ASSY.

CUSHION - rubber, rear screen clamp

4шт.

13

R40921

CLAMP

- rear screen

2шт.

14

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

15

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

16

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

17

R43973

LARGE PLATE

PLATE - step, backhoe models

1шт.

18

R43971

BOLT

- U

1шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

- hex, 1/2" -13 NC

2шт.

22

R40653

ROPS

ROOF - hinged, if used

1шт.

23

F42316

EYEBOLT

PIN - hinge

3шт.

24

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

6шт.

25

F93322

HINGE

- roof

3шт.

27

111-512

CARRIAGE BOLT,Short NK, 1/2"-13 x 1", G2

BOLT, CARRIAGE, Short NK, 1/2"- 13 x 1", G2

3шт.

28

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

29

129-105

NUT,Hex, 1/2" - 13, Gr 5

3шт.

31

R40878

ROOF - bolted, if used

1шт.

32

113-530

BOLT,Hex, 9/16" - 12 x 2", Gr 8

- carriage, 1/2" -13 NC x 2-1/2", plated

2шт.

33

195-533

WASHER,1/2", SAE

- flat, 1/2"

2шт.

34

131-70

NUT,1/2"-13, GB

NUT - hex, self lock, 1/2" -13 NC, plated

2шт.

35

R39568

CUSHION - front, roof

1шт.

Use F42419 50 Ft. Rolls

1шт.

#35 is 32"

1шт.

36

R37149

CUSHION - side, roof

2шт.

#36 is 22"

1шт.

37

R40752

BRACKET - side, pad mounting

2шт.

38

R40753

BRACKET

- rear, pad mounting

1шт.

39

187-1080

SCREW,Hex Wash Hd, 1/4" x 1/2"

- self-tapping, 1/4" -20 NC x 1/2", plated

8шт.

40

R43969

HANDLE

- grab, used on backhoe models

2шт.

41

R43970

BOLT

U-BOLT - 3/8" -16 NC

2шт.

42

92-6

LOCK WASHER,3/8"

4шт.

43

129-520

NUT,Crown, 3/8"-16

- dome, 3/8" -16 NC

4шт.
